NordicTrack VGR 850 - Manual (Page 8)

8

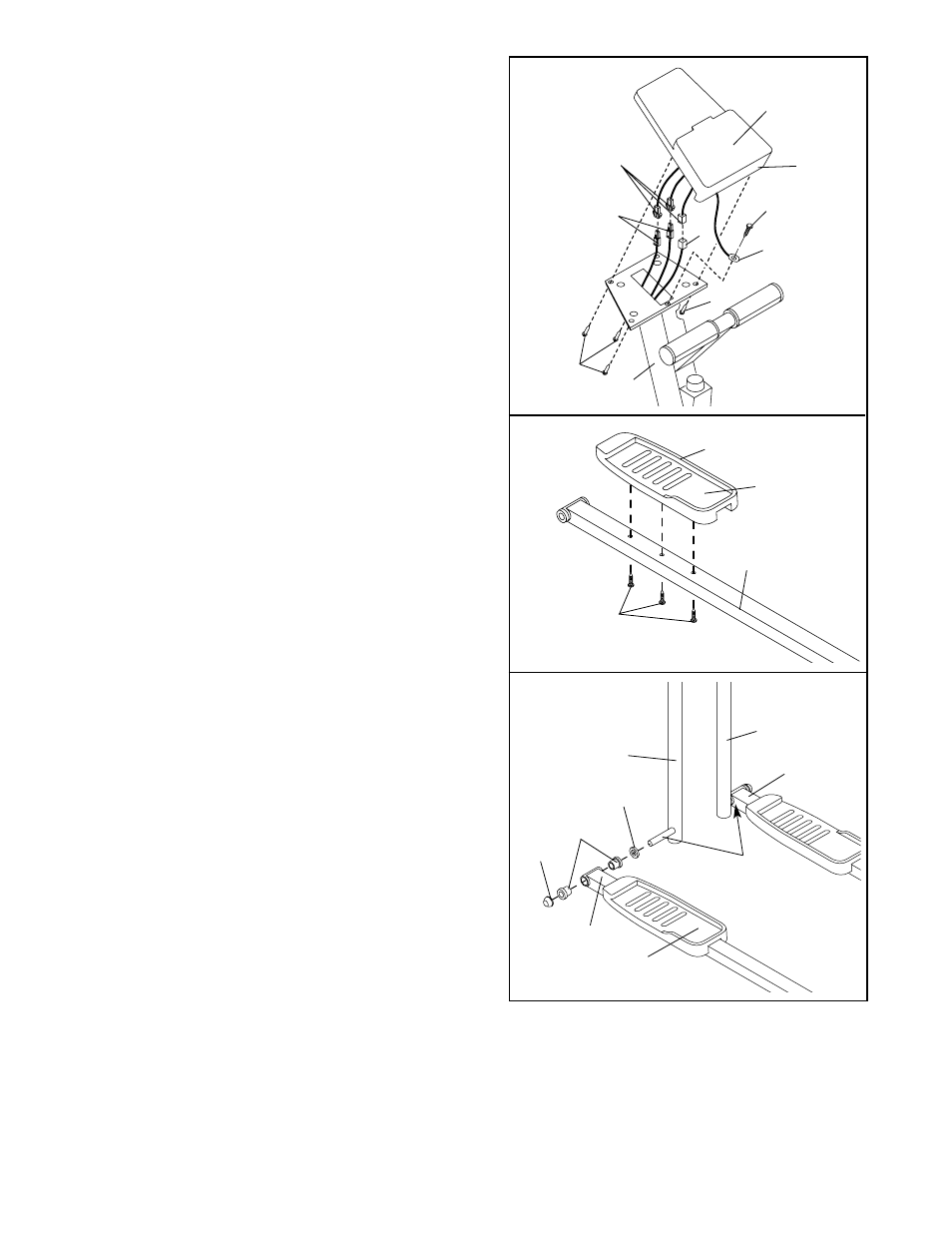

8. Find the Left Pedal (31), which has a ridge on the
right side. Attach the Left Pedal to one of the Pedal
Arms (12) with three M4 x 19mm Flange Screws
(16) as shown.
Repeat this step to attach the Right Pedal to the
other Pedal Arm (not shown).
8
31
12
16
Ridge
7. Connect the Extension Wire (2) to the corresponding
wire on the Console (6).
Next, connect the two Pulse Wires (15) to the two
remaining wires on the Console (6). Note: Either
Pulse Wire can be attached to either wire on the
Console.
Next, connect the ground wire to the indicated hole in
the Upright (3) with an M4 x 16mm Screw (34).
Carefully feed the wires down into the Upright (3).
Attach the Console Base (14) to the Upright with four
M4 x 16mm Screws (34). Be careful to avoid pinch-
ing the wires.
7
15
6
14
34
34
3
2
Console
Wires
34
Ground Wire
9. Identify the Left Handlebar (8) (there is an “L” sticker
on the Left Handlebar). Apply a thin film of the
included grease to the axle on the Left Handlebar.
Make sure that there are two Pedal Arm Bushings
(11) in each Pedal Arm (12).
Slide a Handlebar Spacer (39) and the Pedal Arm
(12) with the Left Pedal (31) onto the Left Handlebar
(8) as shown. (Note: These parts fit tightly; it may be
helpful to use the rubber mallet.) Next, tap a 3/4”
Axle Cap (43) onto the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (62).
8
Apply
Grease
62
11
43
12
12
9
39
31
