5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the following tools: the included allen wrench, a phillips screwdriver ,
an adjustable wrench , a rubber mallet , and pliers .

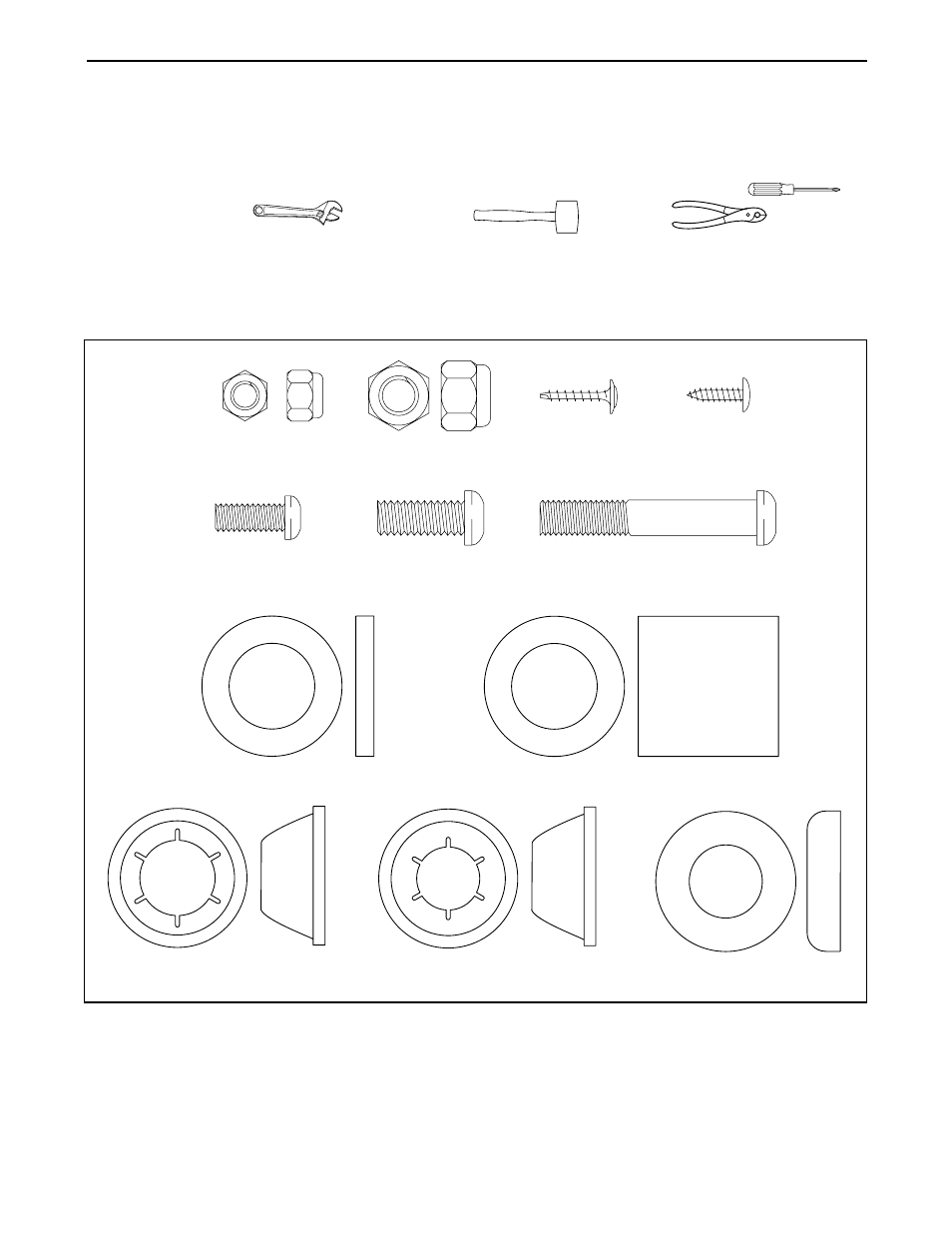

As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parentheses below each drawing refers to the key number of the part, from the PART LIST on
page 16. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-attached.
M10 Nylon
Locknut (29)–6
M6 Nylon
Locknut (17)–2
M6 x 16mm Button
Head Bolt (54)–2
M10 x 25mm Button
Head Screw (42)–2
M4 x 19mm
Flange Screw
(16)–6
M4 x 16mm
Screw (34)–5
Pedal Arm Spacer (41)–2* Handlebar Spacer (39)–2
Weld Spacer (49)–2 5/8” Axle Cap (57)–2* 3/4” Axle Cap (43)–4*
M10 x 45mm Button
Head Bolt (59)–2
