Lightning 1000 Installation Guide
Chassis Front Components

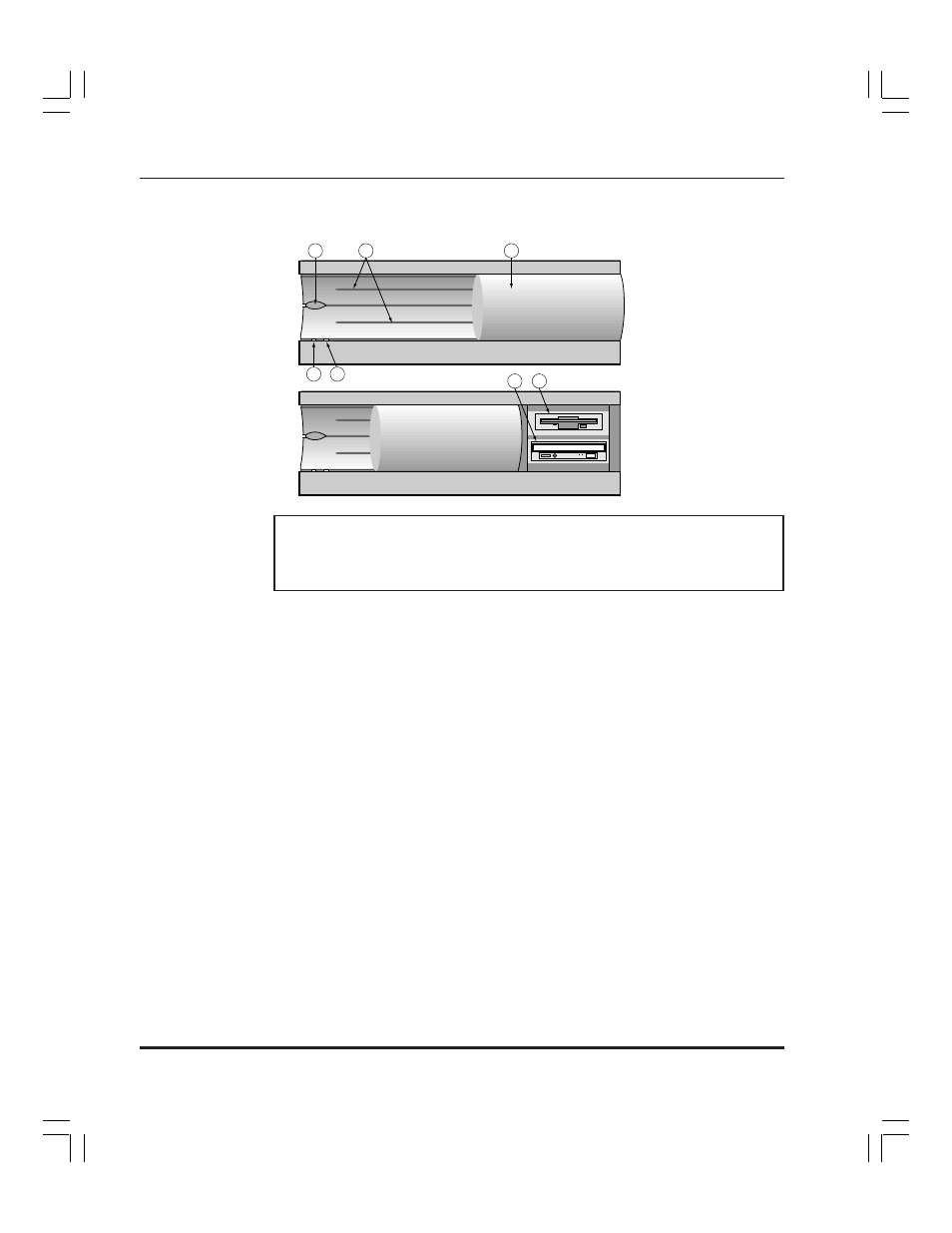

The figure below illustrates the front of the Lightning chassis.
4
7 6
5
2 1 3
With door closed
With door open
1) Power Switch 4) Power LED 7) Floppy Disk
2) Air Vents 5) Disk Drive LED
3) Door 6) CD ROM
1. Power Switch. Press to turn Lightning on and off.
2. Air Vents. Lightning’s internal components and power supply are
cooled by multiple fans. Air flows through the front vents to the
internal fans. To provide optimum air flow, do not obstruct the
front air vents.
3. Door. The front door slides to reveal the floppy drive and CD
ROM.
4. Power LED. The green Power LED lights when the system is on.
5. Disk Drive LED. The yellow Disk Drive LED lights when there is
hard drive activity.
6. CD ROM. The CD ROM Drive is provided for loading and
updating software.
7. Floppy Disk. A standard 3.5" Floppy Disk Drive (1.44 MB) is
provided for offline storage of graphics, transitions, sequences and
layouts.
