10
Connecting your equipment
CAUTION
Do not turn on the power switch to the TAD-M600 or the other components until all connections have been completed.
'
We recommend that you place the speakers at the desired location before performing connections. Use commercially
available speaker cables for connections. When connecting other components, make sure to turn the power off and unplug
the other components before connecting.
INPUT
(BALANCED)
SPEAKERS
A
B
CLASS 2 WIRING
TAD-M600
To speaker terminal
Speaker
To balance output terminal
Pre-Amplifier

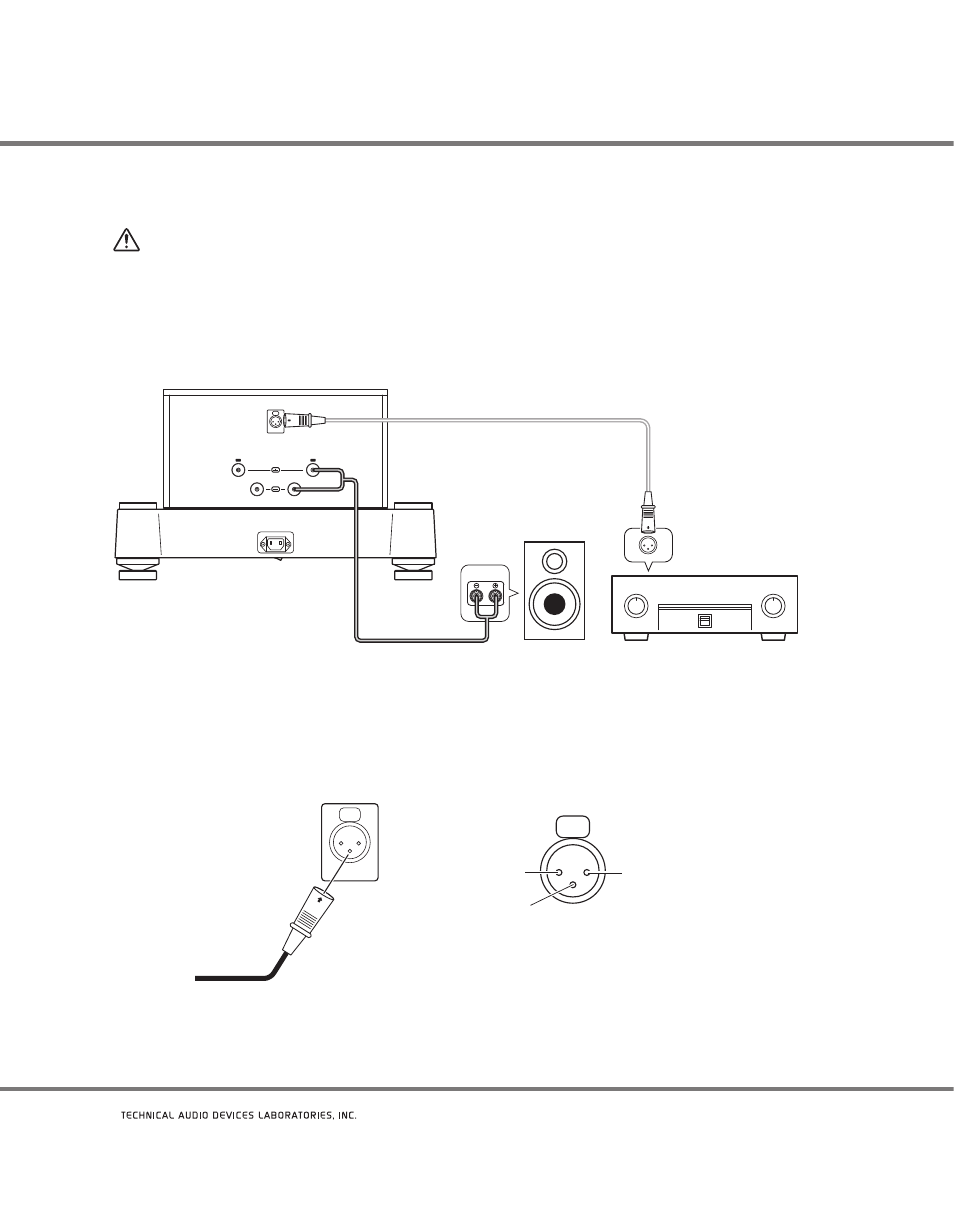

Connecting to the Pre-Amplifier
Connect a balance cable with an XLR plug (sold separately) to the INPUT (BALANCED) terminal of the TAD-M600 and the
Pre-Amplifier’s balance output terminal.
1
2
3
INPUT
(BALANCED)
INPUT (BALANCED) terminal
(XLR-3-31 equivalent)
1: Ground
2: Hot
3: Cold
