23 AUS Pride LX Series/RevC/Apr03
V I . D I S A S S E M B L Y
Your Pride LX is a folding power chair. Once you remove the two battery boxes, you can fold the chair for easy
transportation or storage.

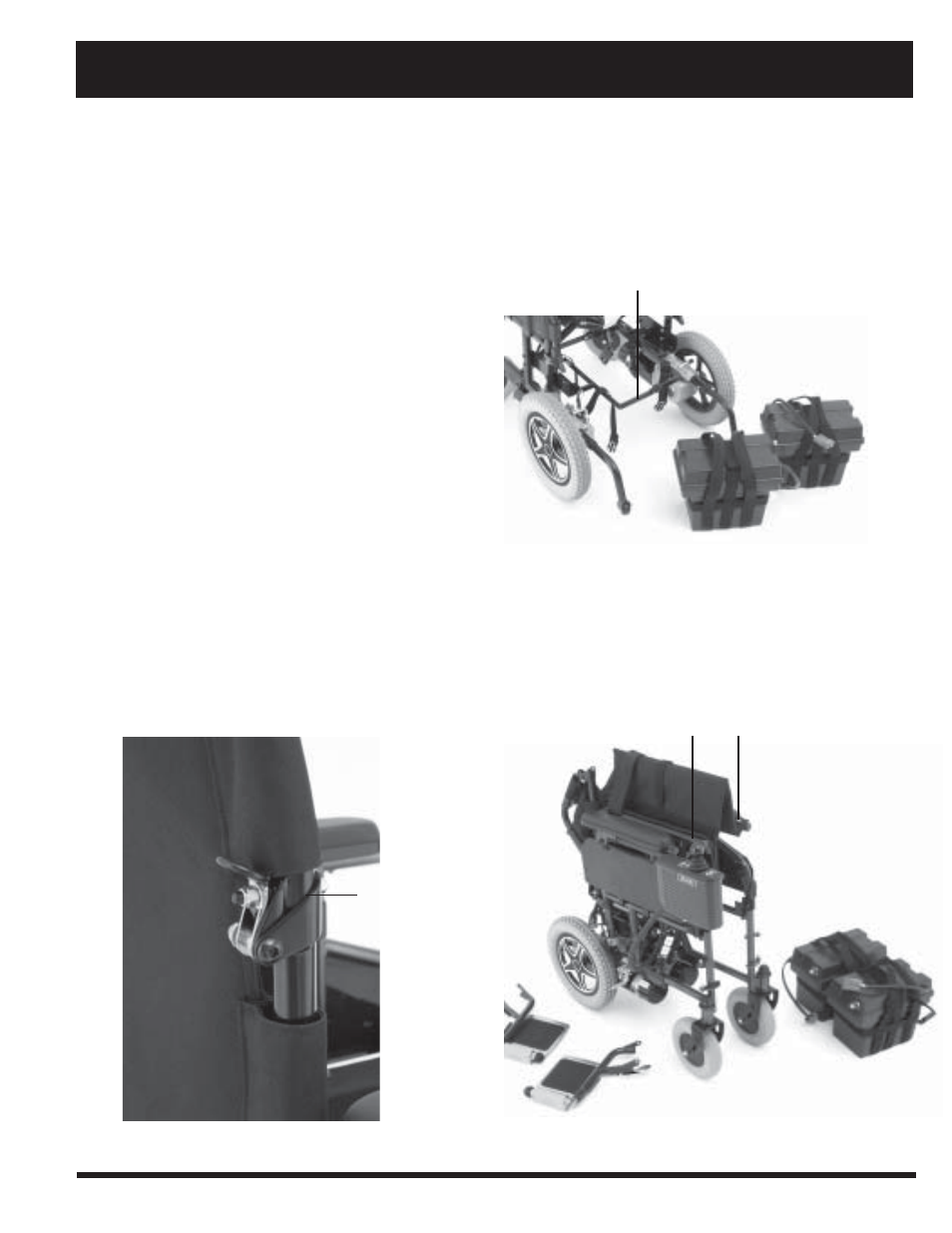

Figure 25. Pride LX - Battery Boxes Removed
To disassemble and fold your Pride LX:
1. Disconnect the electrical connections. See figure 15.
2. Place the Pride LX in freewheel mode. See figure
18.
3. Unstrap the battery boxes.
4. Lift the battery boxes off of the frame.
5. Flip up the foot plates (or you may remove them).
6. Pull up the middle of the battery frame. See figure 25.
7. Fold down the seat canes. See figure 26.
8. Grab the seat strap and pull up the seat.
To assemble and expand your Pride LX:
1. Push down on the seat bars until they lock into
place. See figure 27.
2. Flip up the seat canes and lock them into place.
3 Place the front battery box onto the frame, slide it
forward, and connect the battery box straps.
4. Place the rear battery box onto the frame and
connect the battery box hold down straps.
5. Connect the controller to the front battery boIX.
6. Connect the front battery box to the rear battery boIX.
See figure 16.
7. Place the Pride LX into drive mode. See figure 19.
Figure 26. Seat Cane Release Lever Figure 27. Pride LX - Disassembled and Folded
PUSH DOWN ON SEAT BARS TO EXPAND.
PULL UP THE BATTERY FRAME BEFORE FOLDING.
SEAT CANE
