14 www.pridemobility.com AUS Pride LX Series/RevC/Apr03
I I I . A S S E M B L Y
Unpacking:
The contents of your Pride LX box are as follows: one (1) base assembly, one (1) seatback, two (2) battery boxes,
one (1) controller box, one (1) battery charger box, and one (1) accessories box. The accessories box contains: one
(1) battery frame, four (4) battery tray ball detent pins, one (1) toolkit, six (6) tie-wraps, two (2) anti-tip wheels, and
two (2) swing-away leg rests. The toolkit contains all of the tools that you will need for assembly. Remove the
contents and take inventory. If any parts are missing, contact your authorised PrideProvider immediately. See
figure 3.
To assemble the Pride LX:
1. Unfold the seat base assembly.
2. Install each battery into a battery box. See figure 4.
3. Install the battery tray. See figure 5. Make sure the tabs are facing upwards so that the middle of the
tray can only fold up.
4. Install the battery boxes into the battery frame. Make sure that both main circuit breakers are on the
right side of the base assembly. Connect the two red connectors. Connect the straps to secure the battery
boxes. Adjust for tightness as necessary. See figure 6.

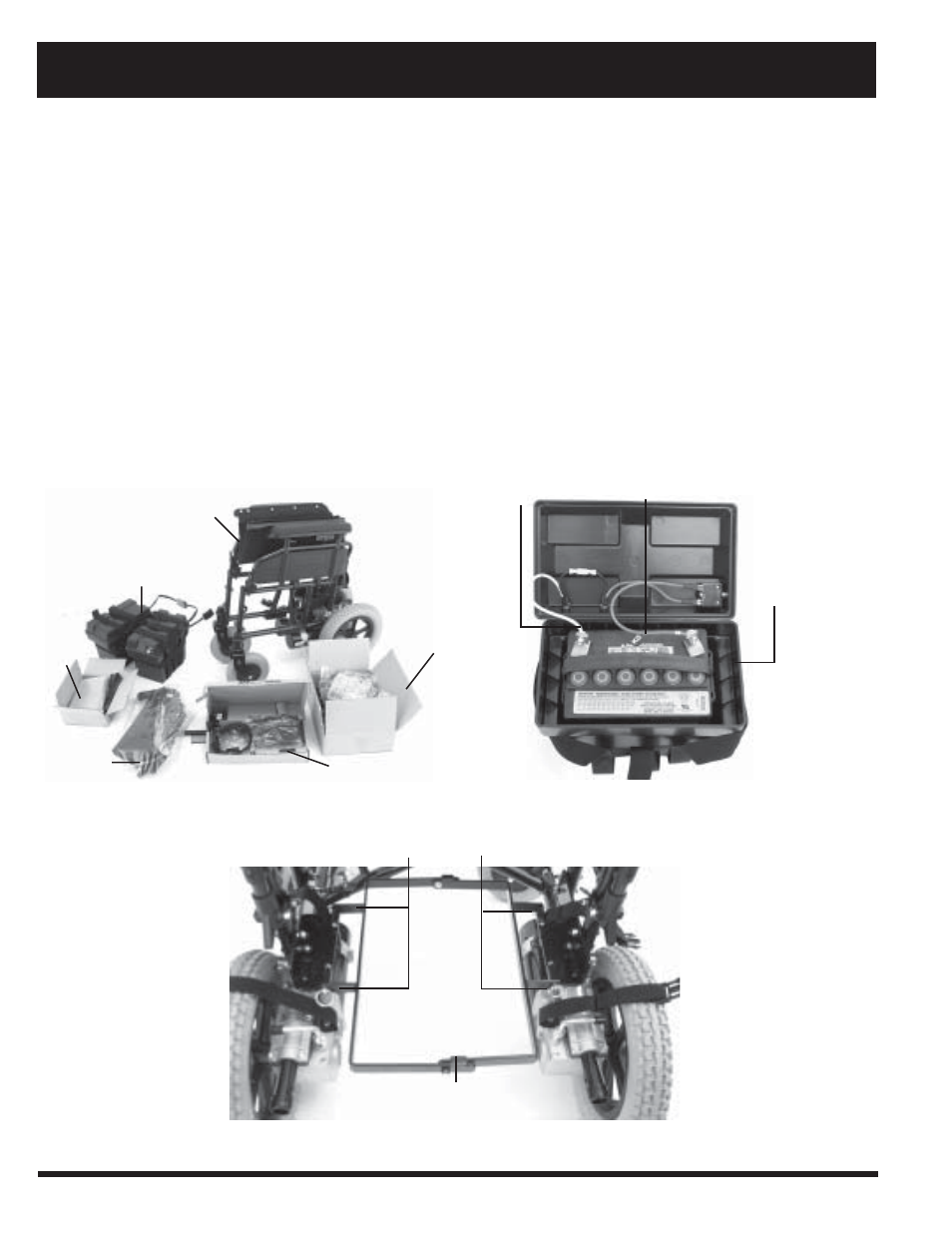

Figure 3. Pride LX Components Figure 4. Battery Installation
WHITE CABLE RED CABLE
Figure 5. Battery Tray Installation
INSTALL BALL DETENT PINS HERE.
FLAT SIDE FACES UP.
BATTERY BOX
BASE ASSEMBLY
BATTERY BOXES
BATTERY
CHARGER
SEATBACK
CONTROLLER
ACCESSORIES
