EN

LAN1

ADSL

POWER RESET

LAN2

LAN3

LAN4

4

3

1 2

7

System Requirements

ADSL line installed by your Internet Service Provider.

A computer using a fixed IP address or dynamic IP address assigned via DHCP, as
well as a gateway server address and DNS server address from your service
provider.

A computer equipped with a 10/100 Mbps network adapter, a USB-to-Ethernet
converter or an IEEE 802.11g wireless network adapter.

TCP/IP network protocols installed on each PC that will access the Internet.

A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above or
Netscape 4.7 or above, installed on one PC at your site for configuring the ADSL
Wireless Base Station.

Hardware Description

The ADSL Wireless Base Station contains an integrated ADSL modem and connects
to the Internet or to a remote site using its RJ-11 WAN port. It can be connected
directly to your PC or to a local area network using any of the four 10/100 Ethernet
LAN ports.

Data passing between devices connected to your local area network can run at up to
100 Mbps over the 10/100 Ethernet ports and 54 Mbps over the built-in wireless
network adapter.

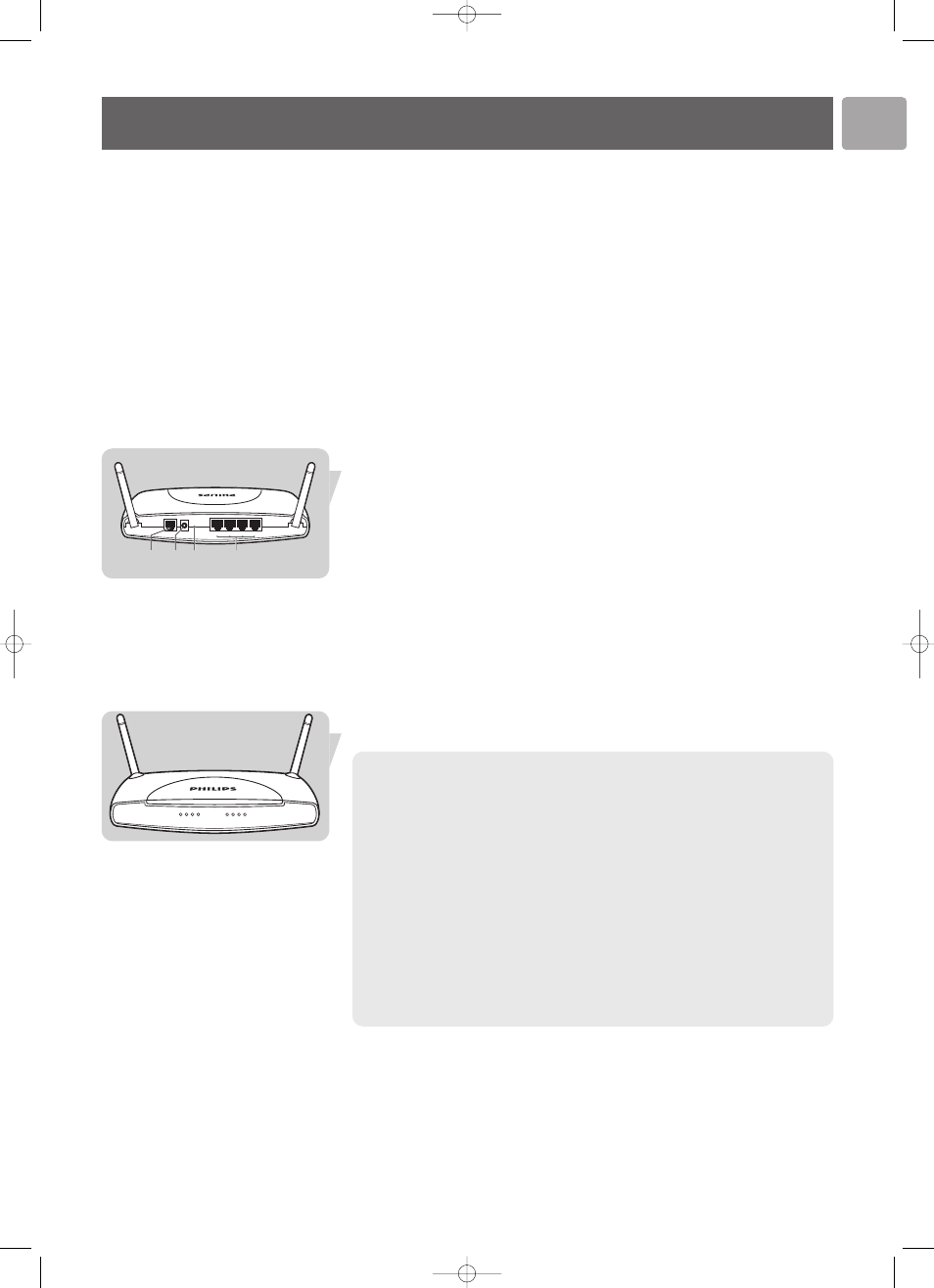

The ADSL Wireless Base Station includes an LED display on the front panel for
system power and port indications that simplifies installation and network
troubleshooting. It also provides the following ports on the rear panel:

1 ADSL Port

ADSL port (RJ-11). Connect your ADSL line to this port.

2 Power Inlet

Connect the included power adapter to this inlet.
Warning: Using the wrong type of power adapter may damage the

ADSL Wireless Base Station.

3 Reset Button

Use this button to reset the power and restore the default factory settings. To
reset without losing configuration settings, see ‘Reset’ on page 28-29.

4 LAN Ports

10/100 Ethernet ports (RJ-45). Connect devices on your local area network to
these ports (i.e., a PC, hub, or switch).

LED Indicators

The power and port LED indicators on the front panel are illustrated by the following
figure and table.

LED Status

Description

PWR (Power)

On

Power on, normal operation.

Off

Power off or failure.

xDSL (DSL sync) On

ADSL loop is brought UP.

Blinking

Start up.

Off

ADSL loop is down.

Online

On

Link is up.

Blinking

Send/Receive data.

Off

No data transfering.

WL (Wireless)

On

Link is up.

Blinking

Send/Receive data.

Off

No data transfering.

LAN 1-4

On

Ethernet Connection is established.

Blinking

Send/Receive data.

Off Without

Link.

ISP Settings

Please collect the following information from your ISP before setting up the ADSL
Wireless Base Station:

ISP account user name and password

Protocol, encapsulation and VPI/VCI circuit numbers

DNS server address

IP address, subnet mask and default gateway (for fixed IP users only)

Installation

L1

L2

L3

WL

On Line

XDSL

PWR

L4
