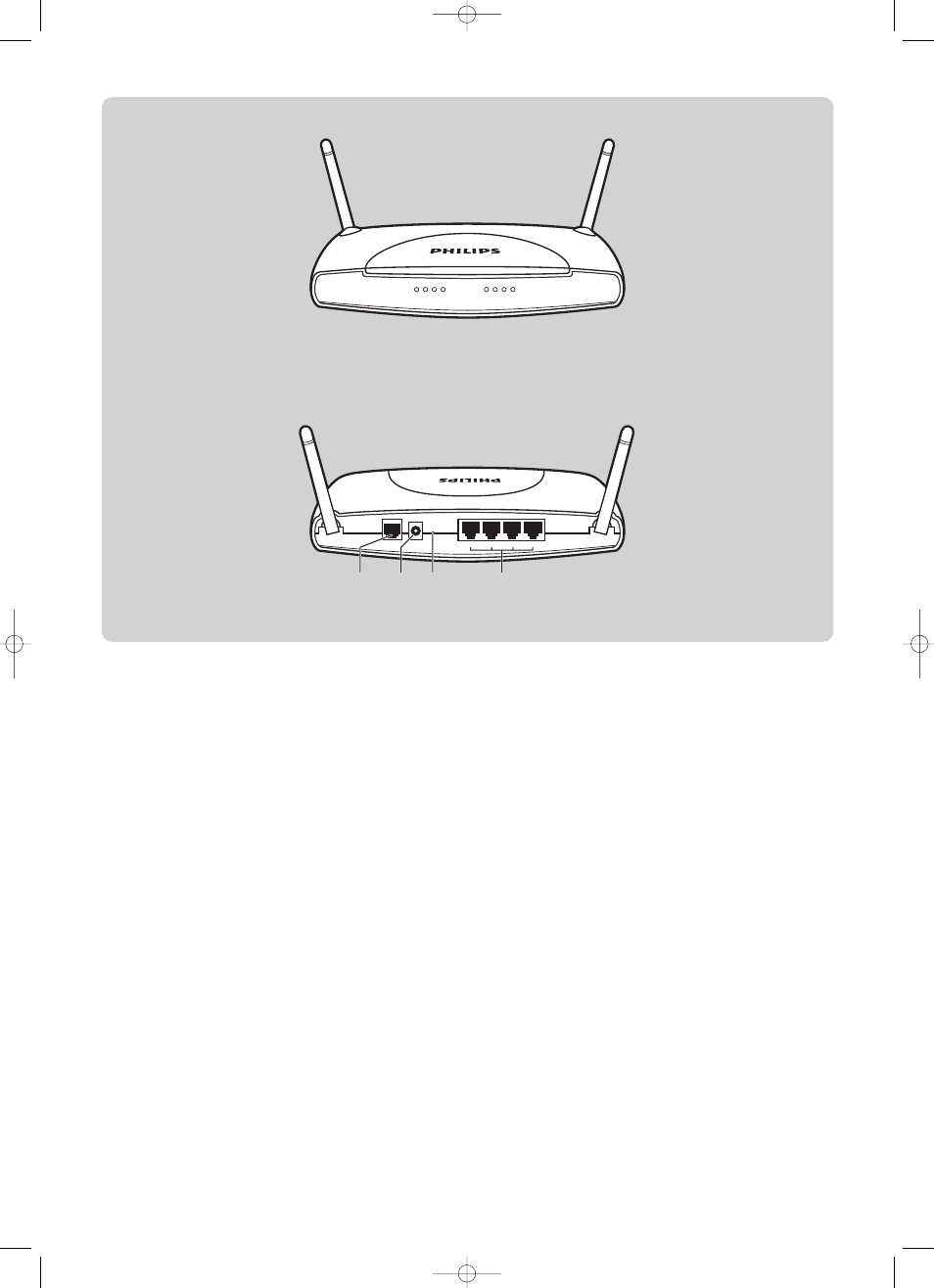

1 ADSL Port

ADSL port (RJ-11). Connect your ADSL line to this port.

2 Power Inlet

Connect the included power adapter to this inlet.
Warning: Using the wrong type of power adapter may damage the

ADSL Wireless Base Station.

3 Reset Button

Use this button to reset the power and restore the default factory settings. To reset without losing configuration settings, see
‘Reset’ on page 28-29.

4 LAN Ports

10/100 Ethernet ports (RJ-45). Connect devices on your local area network to these ports (i.e., a PC, hub, or switch).

On Line

XDSL

PWR

LAN1

ADSL

POWER RESET

LAN2

LAN3

LAN4
