Connections 02
14
En
Chapter 2
Connections

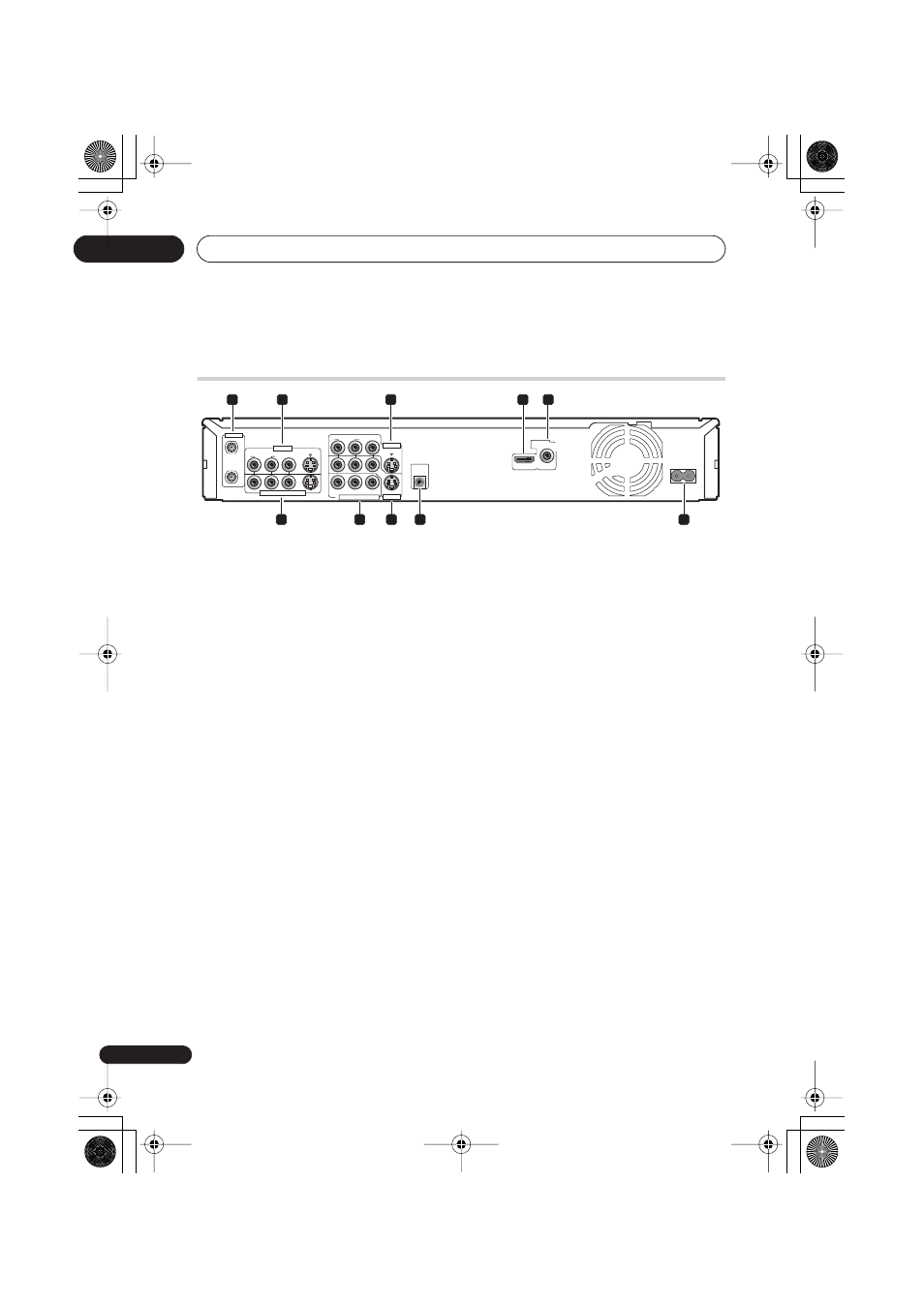

Rear panel connections
1 ANTENNA IN (RF IN)/OUT
Connect your TV antenna to the ANTENNA
IN (RF IN) jack. The signal is passed through
to the ANTENNA OUT jack for connection to
your TV.
2 INPUT 3
Stereo analog audio, video and S-video
inputs for connection to a satellite receiver,
set top box, etc.
3 OUTPUT 2
Stereo analog audio, video and S-video
outputs for connection to a TV or AV
amplifier/receiver.
4 HDMI OUT
HDMI output for high quality digital audio
and video.
5 DIGITAL AUDIO OUT (COAXIAL)
Coaxial digital audio jack for connecting to
an AV amplifier/receiver, Dolby Digital/DTS
decoder or other equipment with a digital
input.
6 INPUT 1/AUTO START REC
Stereo analog audio, video and S-video
inputs for connection to a satellite receiver,
set top box, etc.
7 COMPONENT VIDEO OUT
A high-quality video output for connecting to
a TV or monitor with a component video
input.
8 OUTPUT 1
Stereo analog audio, video and S-video
outputs for connection to a TV or AV
amplifier/receiver.
9 CONTROL IN
Use to control this recorder from the remote
sensor of another Pioneer component with a
CONTROL OUT terminal and bearing the
Pioneer mark. Connect the CONTROL
OUT of the other component to the
CONTROL IN of this recorder using a mini-
plug cord.
10 AC IN – Power inlet
Connect to a power outlet using the supplied
power cable after making all other
connections.
AC IN
DIGITAL
AUDIO OUT
COAXIAL HDMI OUT CONTROL
IN
S-VIDEO VIDEO AUDIO L R
ANTENNA
IN
OUT
S-VIDEO
VIDEO AUDIO L R
Y P B P R OUTPUT 1
OUTPUT 2
COMPONENT VIDEO OUT
INPUT 1 /AUTO START REC
INPUT 3
1 2
6 7 8 9 10
3 4 5
