SN4522/JS/EUI: 2 port FXS VoIP
Gateway Router, 100–240 VAC external
power supply (PS)
SN4522/JO/EUI: 2 port FXO
Gateway Router
SN4524/JS/EUI: 4 port FXS VoIP
Gateway Router
SN4522/JO/EUI: 4 port FXO
Gateway Router
SN4526/4JS2JO/EUI: 4 port FXS 2 port
FXO Gateway Router SN4526/JS/EUI: 6 port FXS VoIP
Gateway Router
SN4528/JS/EUI: 8 port FXS VoIP
Gateway Router
SN4524/2JS2JO/EUI: 2 port FXS, 2 Port
FXO Gateway Router SN4528/4JS4JO/EUI: 4 port FXS, 4 Port
FXO Gateway Router
Options & Accessories
SNSW-VPN1: License Key for IPsec VPN
support (DES, 3DES, AES)
Ordering Information
Specifications*
Capacity
Up to 8 simultaneous VoIP or T.38 fax
calls (depending on the model)
Voice Signaling
H.323v4, SIPv2 (B2BUA capable, multi-
instance, simultaneous support of multi-
ple registrars and direct IP dialing) • SIP
call transfer, redirect • DTMF in-band &
out-of-band • All tones programmable
(dial, ringing, busy)
Voice Processing
CODEC G.711 a-law/mu-law, G.723,
G.729ab, • G.726, G.727. T.38 fax relay
(9.6 k, 14.4 k) • G.711 transparent fax
and bypass
Call Switching and Services
Virtual interfaces • Regular expression
based call routing and number manipula-
tion • Number blocking • Short-dialing •
Digit collection, distribution and hunt
groups • Transparent line extension •
Fallback Routing: Soft fallback to alterna-
tive route(s)
FXS Connectivity
2-wire Loopstart on RJ-11/12 •short
haul loop 1.1km @3REN • EuroPOTS
(ETSI EG201188) • programmable AC
impedance, feeding, ring and on-hook
voltage • Caller-ID FSK and ITU V.23/Bell
202 generation
FXO Connectivity
2-wire Loopstart on RJ-11/12 •
Programmable impedance, ring detec-
tion, tone detection, disconnect supervi-
sion • Caller ID detection
Data Services
Two 10/100 Ethernet ports • Complete
IP access router • DHCP Client & server
• Packet fragmentation • Static firewall,
NAT, NAPT RFC 1631 access control
lists • DMZ port • IPsec, IKE,
AES/DES/3DES Encryption (optional,
hardware accelerated)
Quality of Service
Voice priority • DownStreamQoS™ •
Traffic management, shaping and policing
• IEEE 802.1p, TOS, DiffServ labeling •
IEEE 802.1Q, VLAN tag insertion/deletion
(simultaneous support of multiple VLANs)
Management
Web/HTTP, CLI with local console and
remote Telnet access • TFTP configura-
tion & firmware loading • SNMP MIB II
and product MIB • Secure Mass provi-
sioning for both firmware and unit/sub-
scriber configuration • Built-in diagnostic
tools (trace, debug, call generator)
System
CPU Motorola MPC875 @ 66MHz •
Memory 32MB SDRAM/8MB Flash •
Power 100–240 VAC (50/60 Hz) • Power
dissipation 4-12W, model dependent
Temperature
32–104°F (0–40°C)
Humidity
Up to 90%, non-condensing
Compliance
EMC compliance: EN55022 and EN55024
• Safety compliance: EN 60950 • CE
compliance • FCC Part 15 Class A •
TBR21 (FXS) • RoHS
* Specifications subject to change without notice.

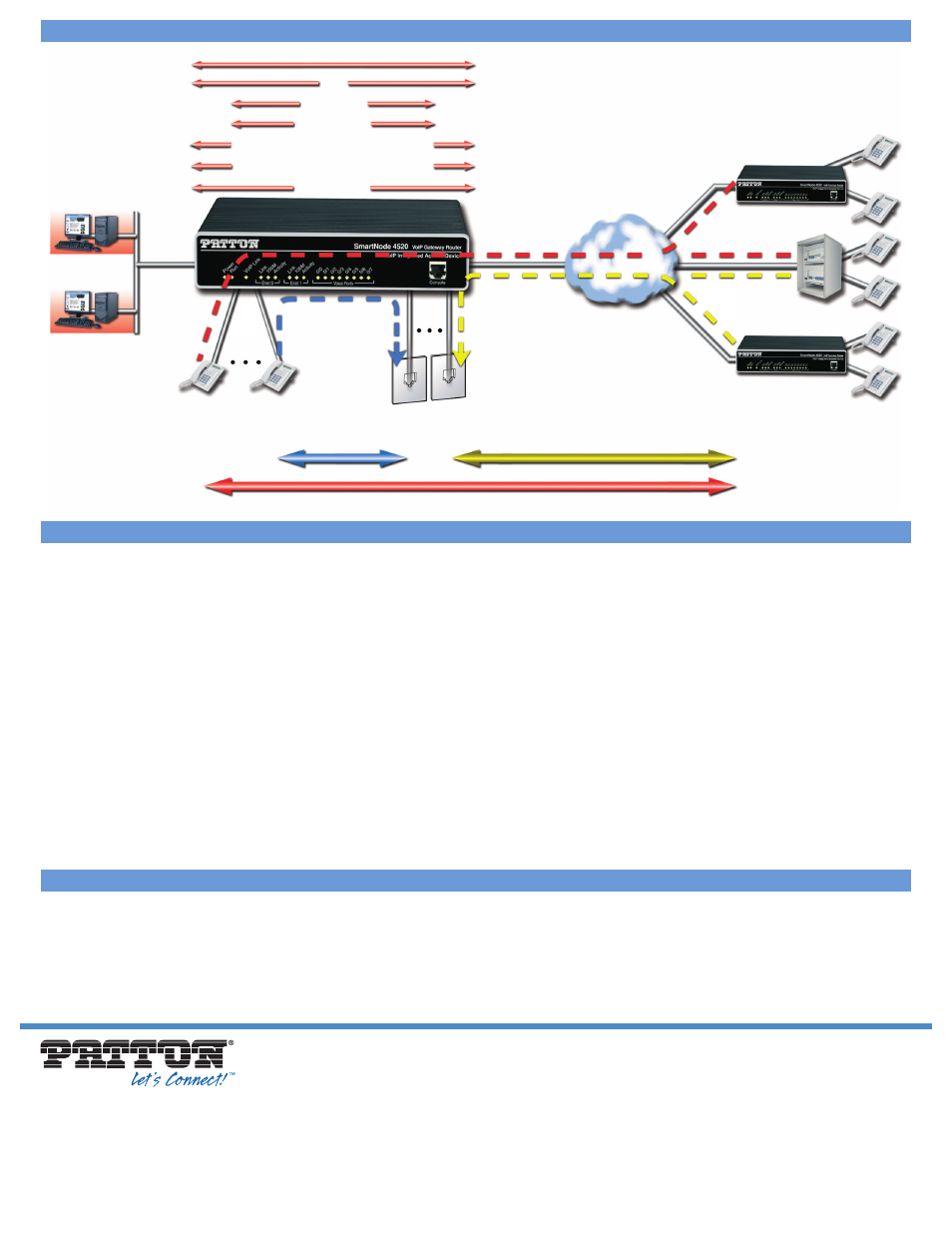

10/100
LAN
LAN/DSL/Cable
Access
1–8 Extensions
(FXS)
Local Calling
End-to-End Packet Voice
Local Breakout
QoS
NAT/NAPT
Firewall/ACL
IPsec/AES
VLAN
DHCP
Internet
PPPoE
DHCP
1–4 Local Telco
Extensions
LAN WAN
Remote Office/Branch Office Voice Extension and Access
07MSN4520- DS6
