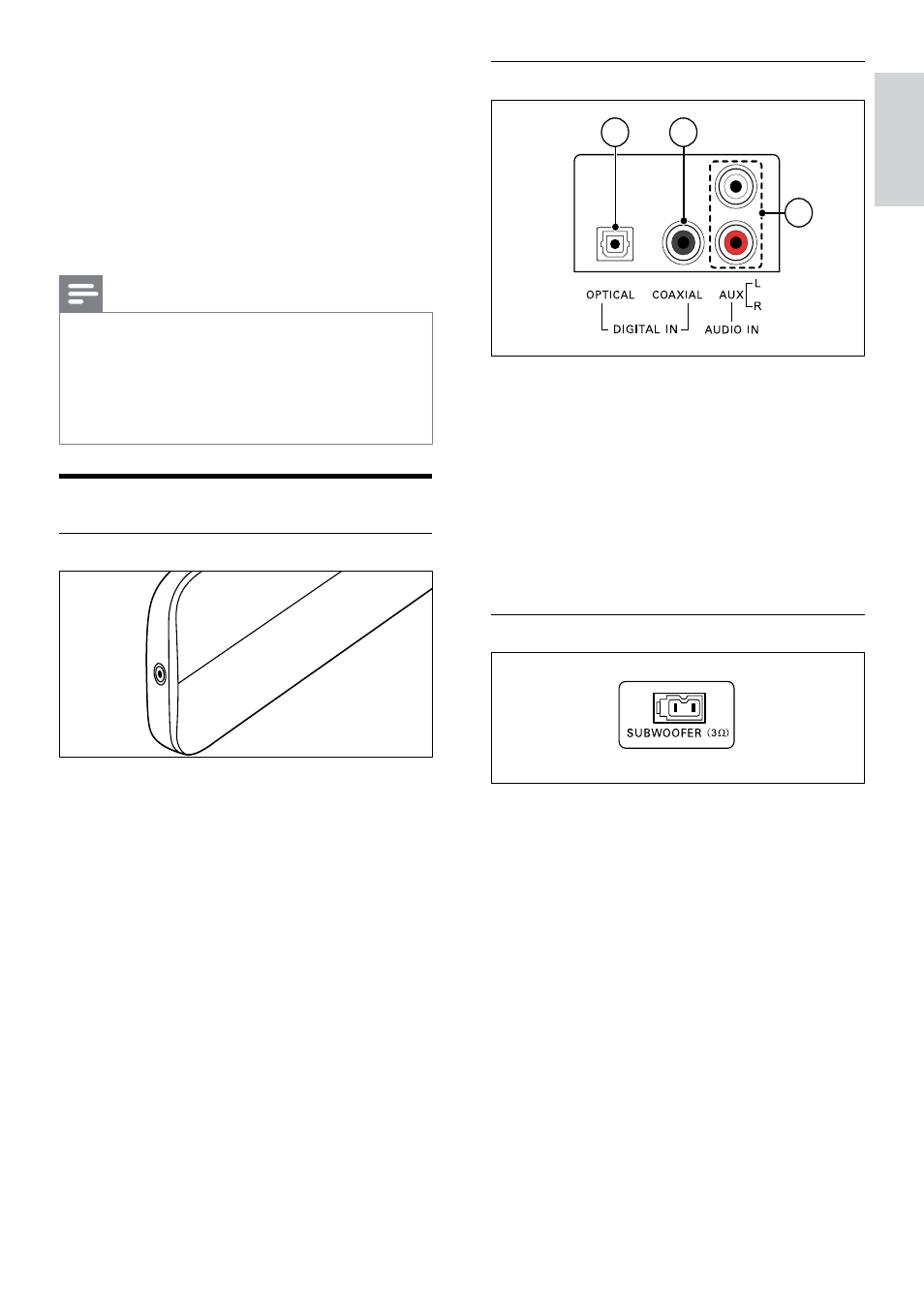

4 connect your soundbar, Connectors, Side connector – Philips HTS3111 User Manual
Page 9: Bottom connectors, Back connector
7
Bottom connectors
a
DIGITAL IN-OPTICAL
Connect to the optical audio output on a
TV or digital device.
b
DIGITAL IN-COAXIAL
Connect to the coaxial audio output on a
TV or digital device.
c
AUDIO IN-AUX L/R
Connect to the analog audio output on a
TV or analog device.
Back connector
SUBWOOFER
Connect to the subwoofer.
3
1
2
4 Connect your
SoundBar
This section helps you connect your SoundBar to
a TV and other devices. For information about the
basic connections of the SoundBar and accessories,
see the Quick start guide.
Note
•
Refer to the type plate at the back or bottom
of the product for identification and supply
ratings.
•
Before you make or change any connections,
ensure that all devices are disconnected from
the power outlet.
Connectors
Side connector
MP3 LINK
Audio input from an MP3 player.
MP3
LINK
English
EN
