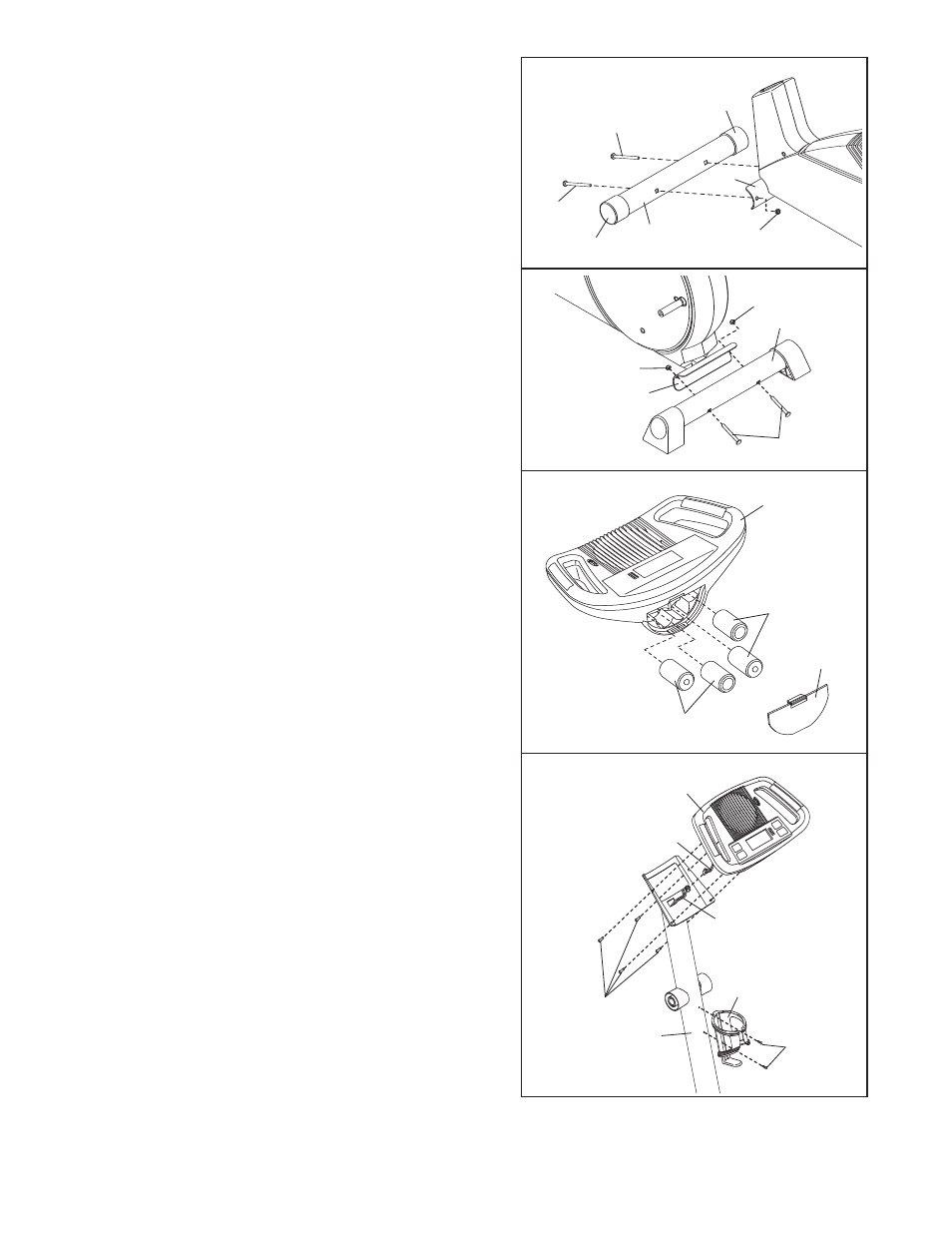

2. While another person lifts the back of the Frame (1),

attach the other Stabilizer (9) to the Frame with two

M10 x 75mm Carriage Bolts (34) and two M10 Nylon

Locknuts (33).

34

9

1

2

33

33

3. The Console (23) requires four 1.5V “D” batteries (not

included); alkaline batteries are recommended.

Remove the battery cover from the Console, and insert

four batteries into the Console. Make sure that the

batteries are oriented as shown by the markings

on the battery cover. Then, reattach the battery

cover.

23

Batteries

Batteries

Battery

Cover

3

4. While another person holds the Console (23) in the

position shown, connect the console wire to the

Extension Wire (68).

Attach the Console (23) to the Upright (2) with the four

Console Screws (59) included with the Console. Be

careful to avoid pinching the wires.

Attach the Water Bottle Holder (29) to the Upright (2)

with two M4 x 22mm Screws (63).

4

23

2

59

Console Wire

29

63

68

1. Identify the Stabilizer (9) which has round Endcaps (21)

on the ends. While another person lifts the front of the

Frame (1), attach the Stabilizer to the Frame with two

M10 x 75mm Carriage Bolts (34) and two M10 Nylon

Locknuts (33).

9

33

21

21

34

34

1
