ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove all
packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own adjustable wrench , Phillips screwdriver , and
rubber mallet .

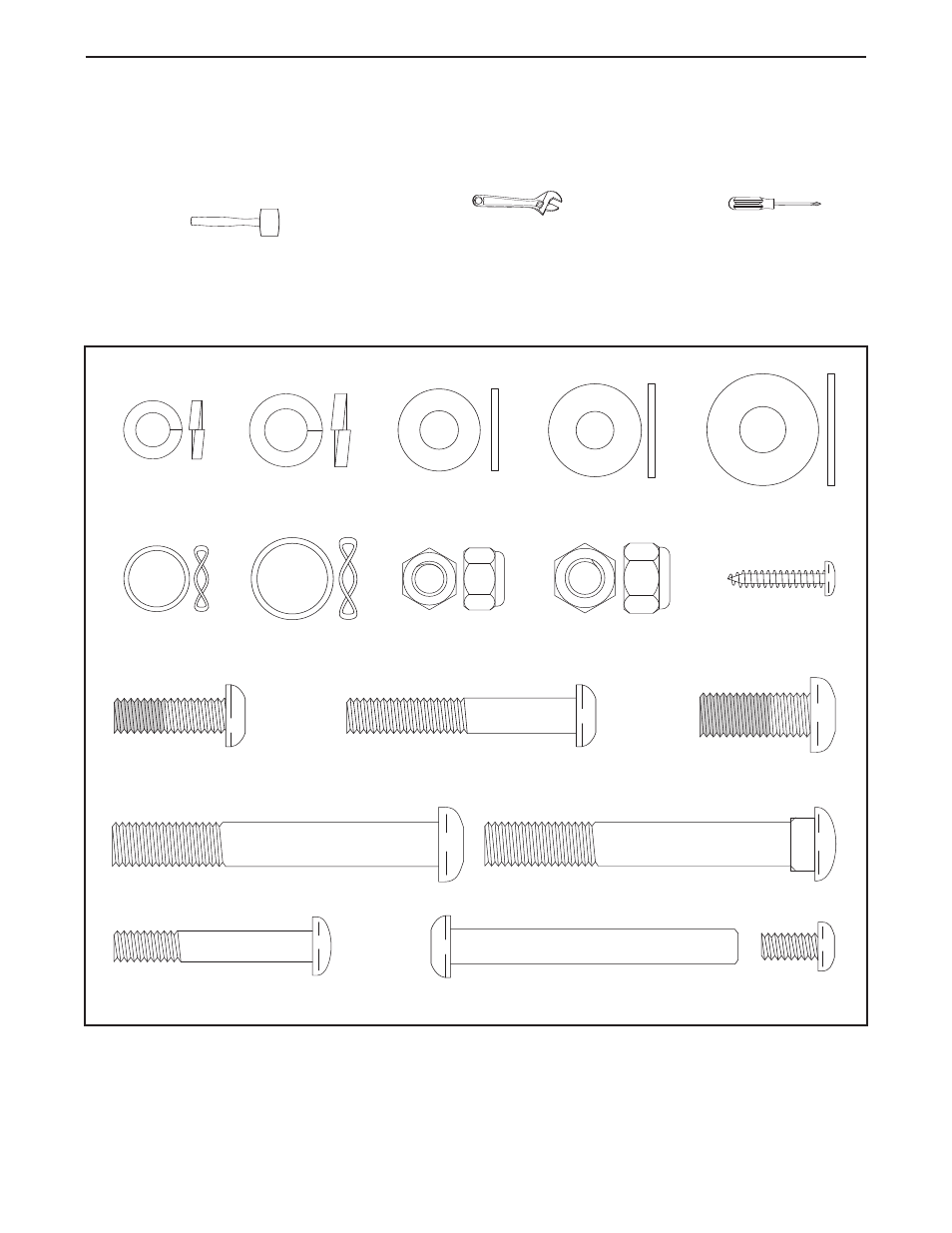

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part. The number following the parentheses is the quantity
needed for assembly. Note: Some small parts shown in the assembly steps may be pre-assembled. If a
part is not found in the parts bag, check to see if it is pre-assembled.
5
M10 Split
Washer (45)–2
M10 Nylon
Locknut (33)–6
M10
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
M10 x 75mm Carriage Bolt (34)–4 M10 x 74mm Button Bolt (7)–2
Wave
Washer (69)–2
M8 Split
Washer (28)–4
Handlebar
Washer (55)–2
M8 x 25mm Patch
Screw (56)–2
M8
Washer (71)–4
M4 x 22mm
Screw (63)–2
M8 x 52mm Button
Screw (27)–4
M6 Bolt Set (25)–2
Large Wave
Washer (76)–2
