2002 Jan 11
2
NXP Semiconductors
Product data sheet
Quadruple ESD transient voltage
suppressor
BZA800AL series
FEATURES
• ESD rating >8 kV contact discharge, according to
IEC1000-4-2
• SOT353 (SC-88A) surface mount package
• Common anode configuration.
APPLICATIONS
• Computers and peripherals
• Audio and video equipment
• Communication systems.
DESCRIPTION
Monolithic transient voltage suppressor diode in a five lead
SOT353 (SC-88A) package for 4-bit wide ESD transient
suppression.
MARKING
PINNING
TYPE NUMBER
MARKING CODE
BZA856AL
M1
BZA862AL
M2
BZA868AL
M3
PIN
DESCRIPTION
1
cathode 1
2
common anode
3
cathode 2
4
cathode 3
5
cathode 4
handbook, halfpage
MGT580
1
5
4
3
2
3
1
4
5
2

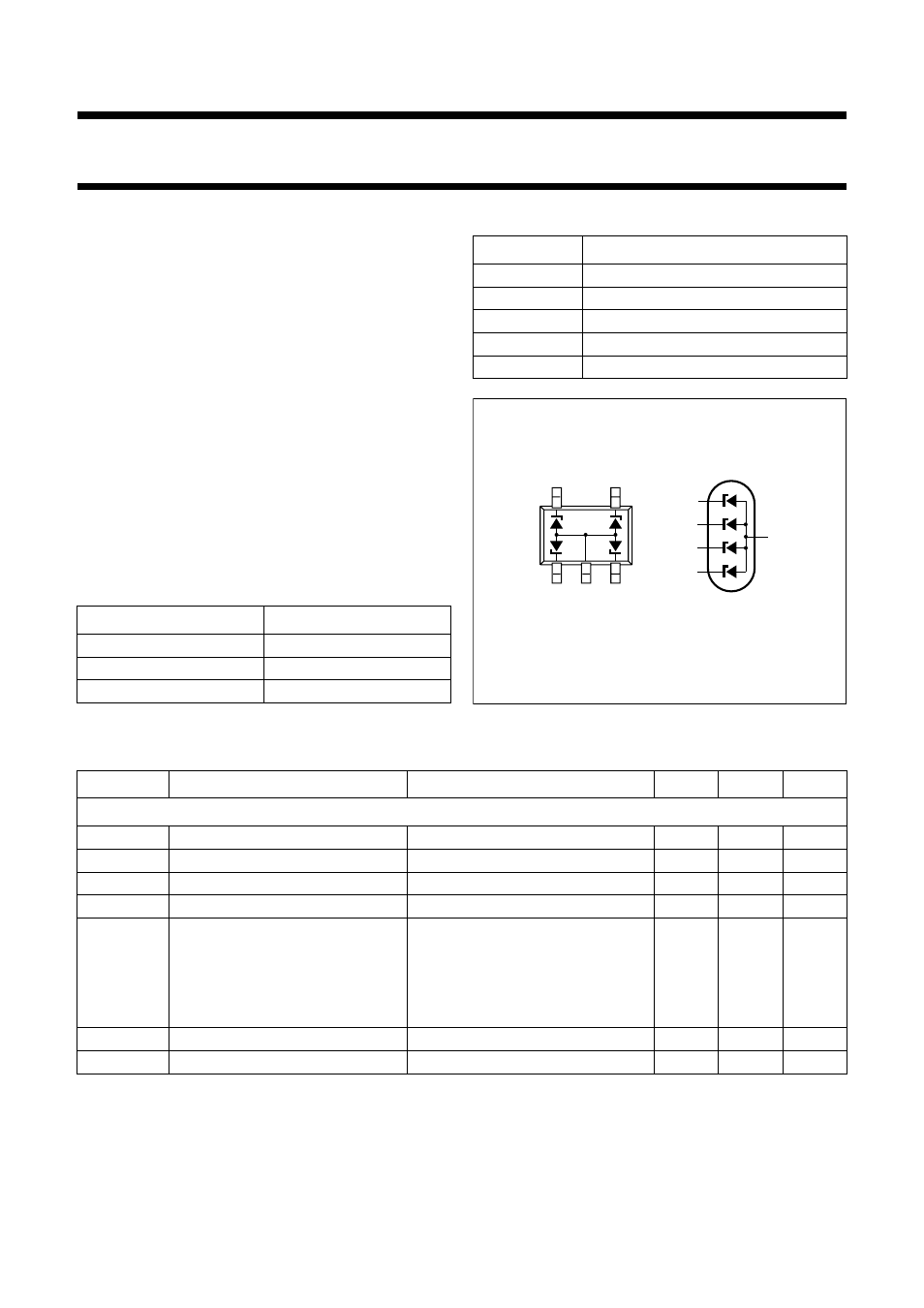

Fig.1 Simplified outline (SOT353) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
Notes
1.
DC working current limited by P
tot(max)
.
2.
Device mounted on standard printed-circuit board.
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per diode
I
Z
working current
T
amb
= 25
°C
−
note 1
mA
I
F
continuous forward current
T
amb
= 25
°C
−
200
mA
I
FSM
non-repetitive peak forward current t
p
= 1 ms; square pulse
−
4
A
P
tot
total power dissipation
T
amb
= 25
−
300
mW
P
ZSM
non repetitive peak reverse power
dissipation:
square pulse; t
p
= 1 ms; see Fig.3
BZA856AL
−
16
W
BZA862AL
−
15
W
BZA868AL
−
14
W
T
stg
storage temperature
−65
+150
°C
T
j
junction temperature
−
150
°C
