- 58 -

SETTING menu

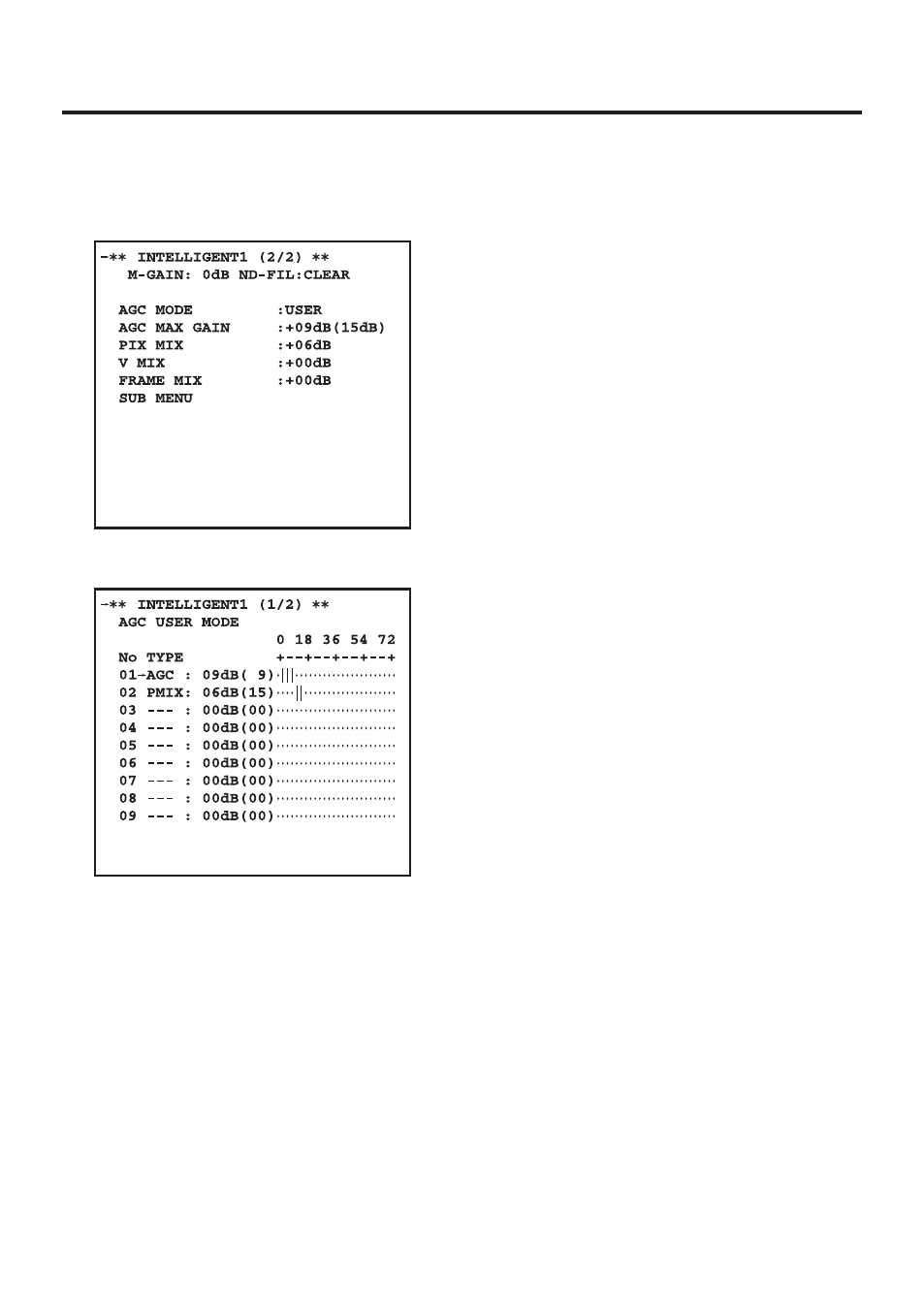

[5] INTELLIGENT1
SUB MENU
When USER has been selected as the
AGC MODE setting, the type of gain, gain
increment step, and priority sequence can be
set in detail.
The gain is incremented in the sequence of
No.01, 02, 0 and so on. It can be set up to
No.18.
(No.10 to 18 are displayed on page 2/2.)
When NORMAL, SPORTS, or SN has been
selected as the control mode setting, only a
display appears.
Move the cursor to TYPE for each number,
set the gain type, and then move the cursor
to the numbers on the right and set the gain
increment step. Inside the parentheses on
the right of the setting is the total gain.
The gain can be set in dB increments for
AGC up to a maximum of +6 dB, in 6 dB
increments for PMIX and VMIX, and in 6 dB
increments for FMIX up to a maximum of
+2 dB.
If the TYPE setting selected is changed to
“– – –”, the subsequent settings will be
deleted.
Setting of menu items
