MAINTENANCE menu

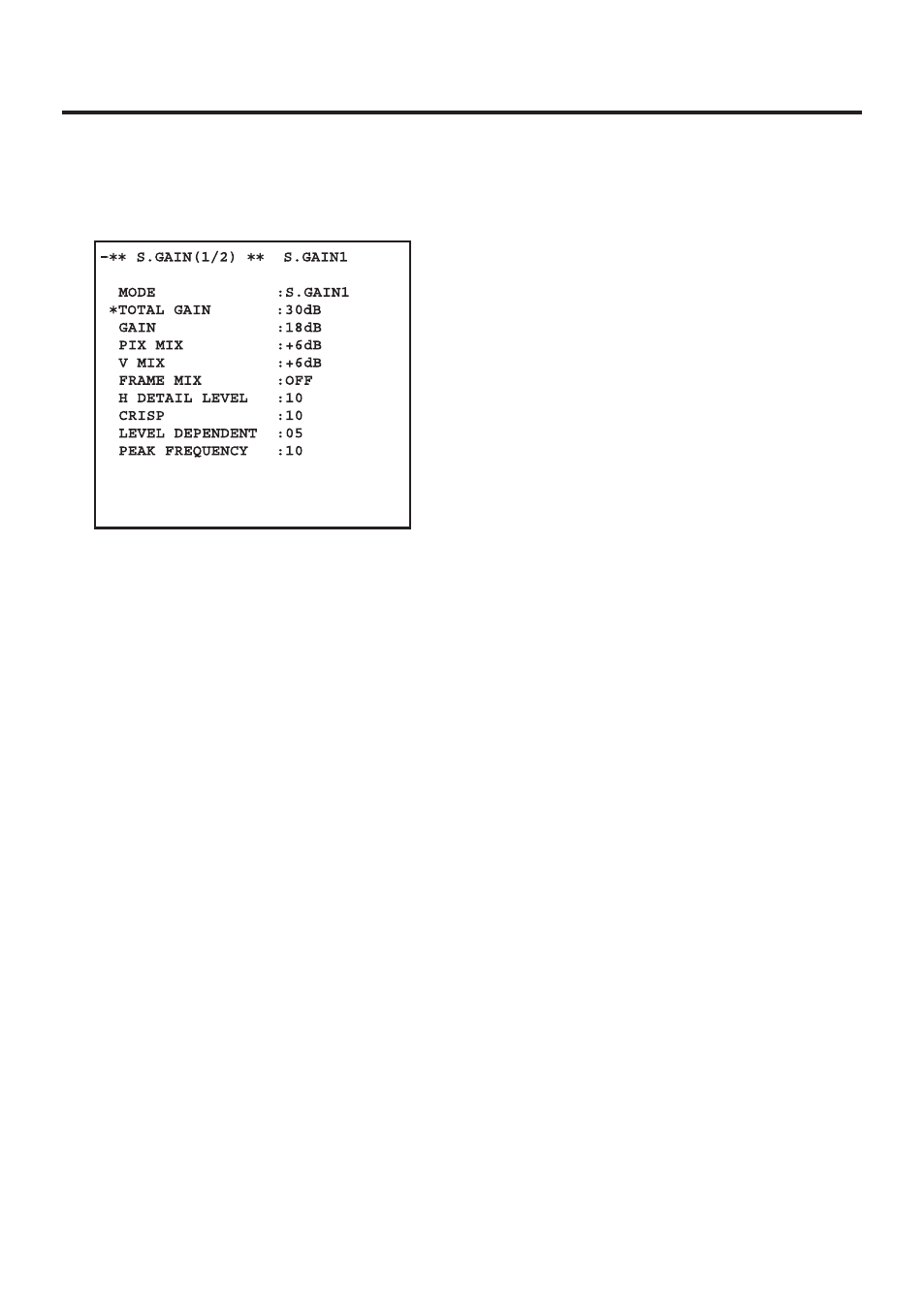

[9] SUPER GAIN
These settings are performed when
S.GAIN1, S.GAIN2 or S.GAIN has been
selected by GAIN SELECT.
MODE [S.GAIN1, S.GAIN2, S.GAIN3]
For selecting the S.GAIN storage table.
TOTAL GAIN [00dB to 72dB]
For displaying the total gain for GAIN, PIX
MIX, V MIX and FRAME MIX.
GAIN [00dB to 36dB]
For setting the gain increase.
(The increase is set in increments of dB.)
PIX MIX [OFF, +6dB]
For setting the addition of horizontal pixels
ON or OFF.
V MIX [OFF, +6dB]
For setting the addition of vertical pixels ON
or OFF.
FRAME MIX [OFF, 06dB to 24dB]
For setting the gain increase based on
accumulation in the CCD image sensor.
(The increase is set in increments of 6 dB.)
H DETAIL LEVEL [00 to 63]
For setting the H DETAIL level.
CRISP [00 to 31]
For setting the noise elimination level of the
detail signals.
Setting of menu items
