SETTING menu

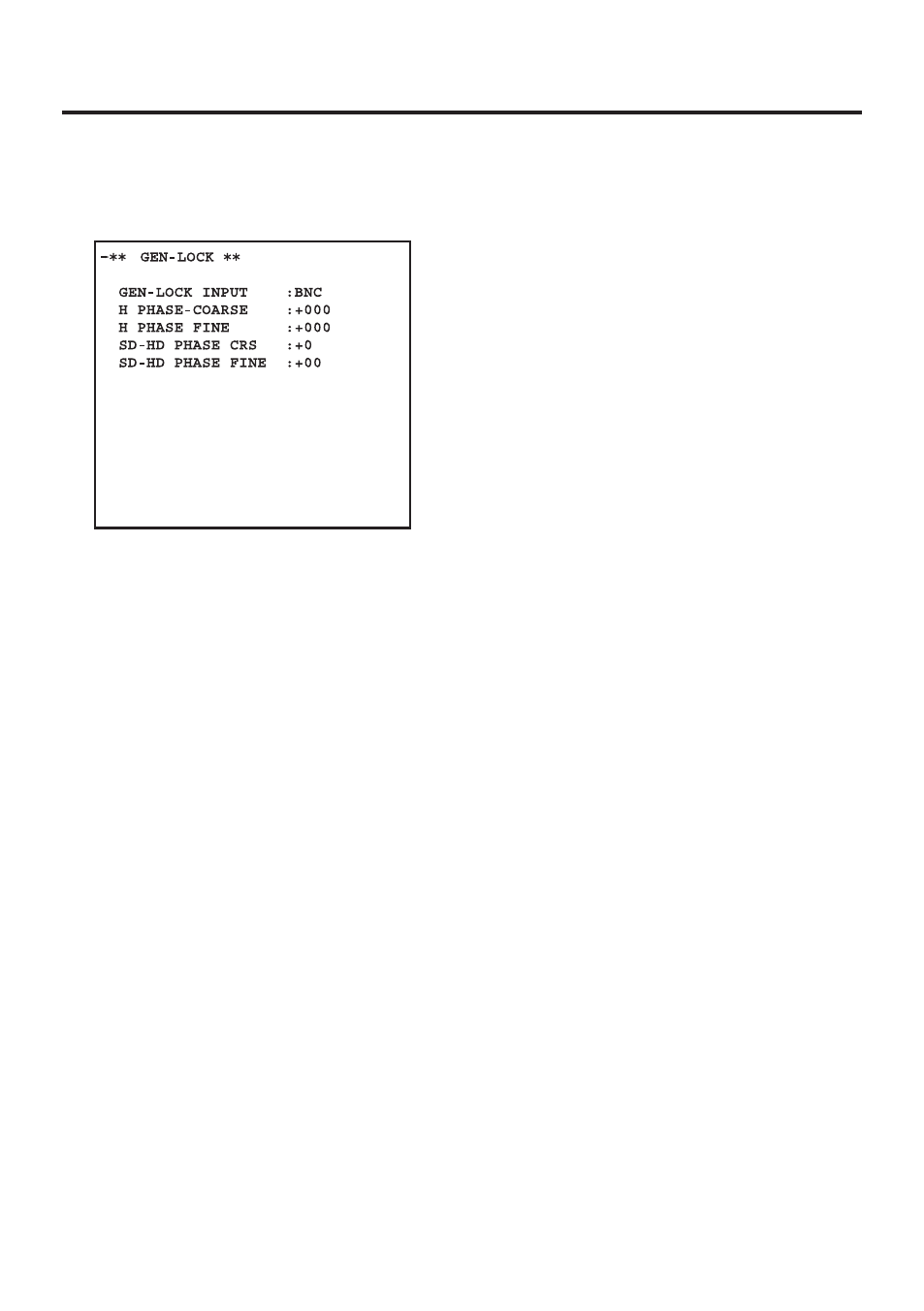

[3] GEN-LOCK

GEN-LOCK INPUT [BNC, DSUB]
For selecting whether the sync signals are to
be input from the BNC or D-SUB connector.

H PHASE-COARSE
[–060 to +060]
For roughly adjusting the horizontal phase.

H PHASE-FINE [–045 to +045]
For finely adjusting the horizontal phase.

SD-HD PHASE CRS [–4 to +4]
For roughly adjusting the phase of the HD
video signals when SD sync signals have
been input.

SD-HD PHASE FINE [–99 to +99]
For finely adjusting the phase of the HD
video signals when SD sync signals have
been input.
