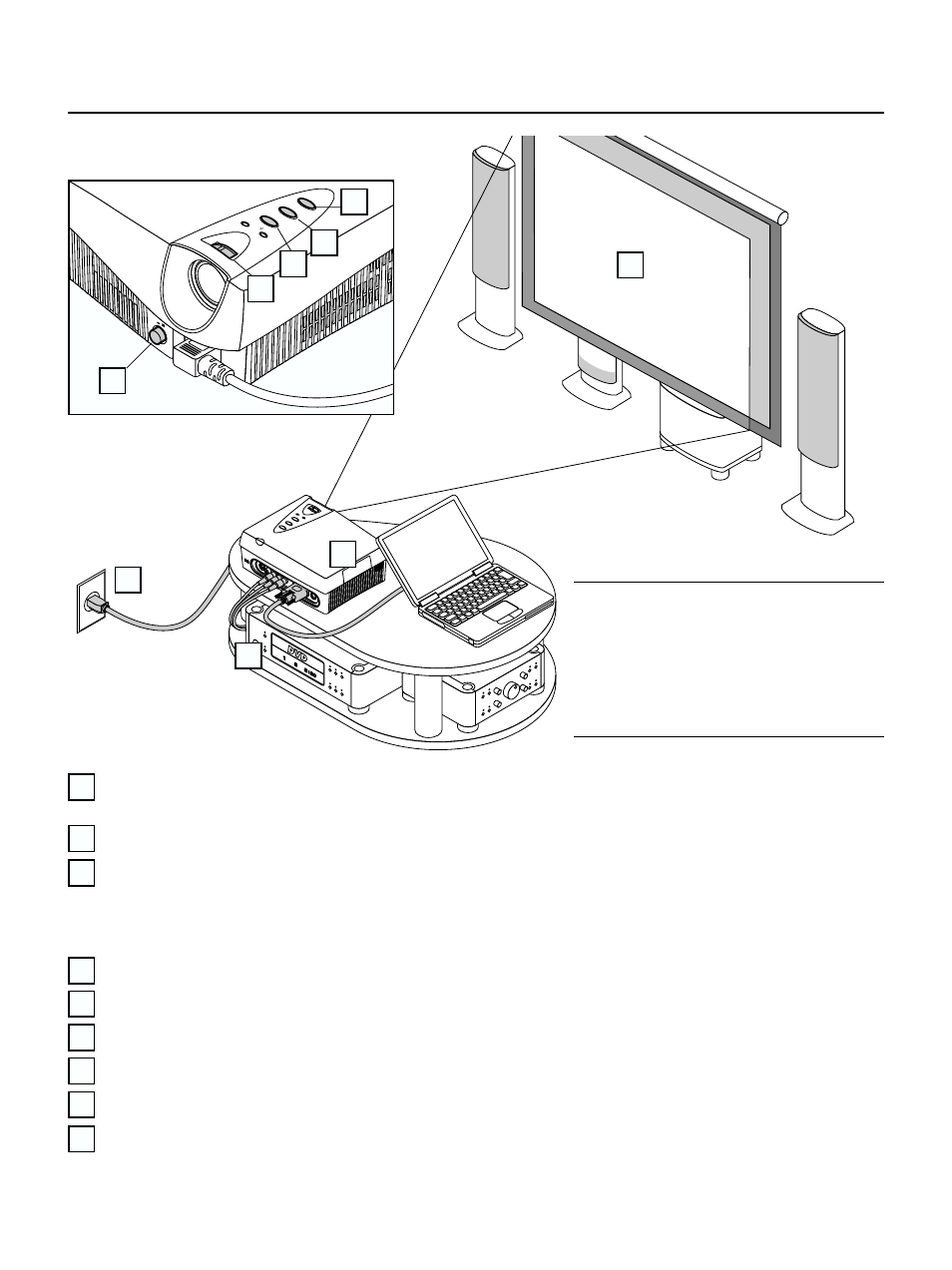

The Procedure Up to Projecting to the Screen
DVI-D
COM
PON
ENT
CTR
L
S-V
IDE
O
VID
EO
Y
C
b
Cr
POWER
ON
OFF
PO
WE
R/
ST
AT
US
ON
/ST
AN
DB
Y
AS
PE
CT
SO
UR
CE
1
2
3
4
7
5
9
8
6
Note:
* Please purchase a commercially available screen separately.
* A cable (commercially available), which is available separately,
is required for connections with the DVI-D connector of the
personal computer.
* A cable (commercially available), which is available separately,
is required to connect a DVD player with the YCbCr connec-
tors.
* Please refer to the various manuals of the audio system for
information about audio system connections.
Position the projector
→
Page E-13 "Projection Distance and Screen Size "
Determine the locations to place the screen and the projector.
Connecting the power cord
→
Page E-14 "Power Cord Connections"
Connect the video equipment and personal computer
Connect your equipment to the projector.
→
Page E-15 "Connections with VIDEO and S-VIDEO Connectors"
→
Page E-16 "Connections with Y, Cb, and Cr Connectors (COMPONENT)"
→
Page E-17 "Connections with DVI-D Connector"
Switching on the main power
→
Page E-18 "Turning ON or OFF Main Power"
Switching on the power
→
Page E-18 "Turning ON or OFF Power"
Properly adjust the projection image to the screen
→
Page E-19 "Projection Screen Position Adjustment"
Focusing
→
Page E-19 "Focus Adjustment"
Selecting input equipment
→
Page E-20, 23 "Input Selection"
Selecting the vertical and horizontal aspect of the picture (i.e., the ratio of screen width and height)
→
Page E-20, 23 "Selection of Aspect Ratio (i.e., Ratio of Screen Width to Screen Height)"
1
2
3
4
5
6
7
8
9
