7. Remove the dust cap from the fiber connector and connect
the fiber and copper cables.
Removing Media Convert Modules

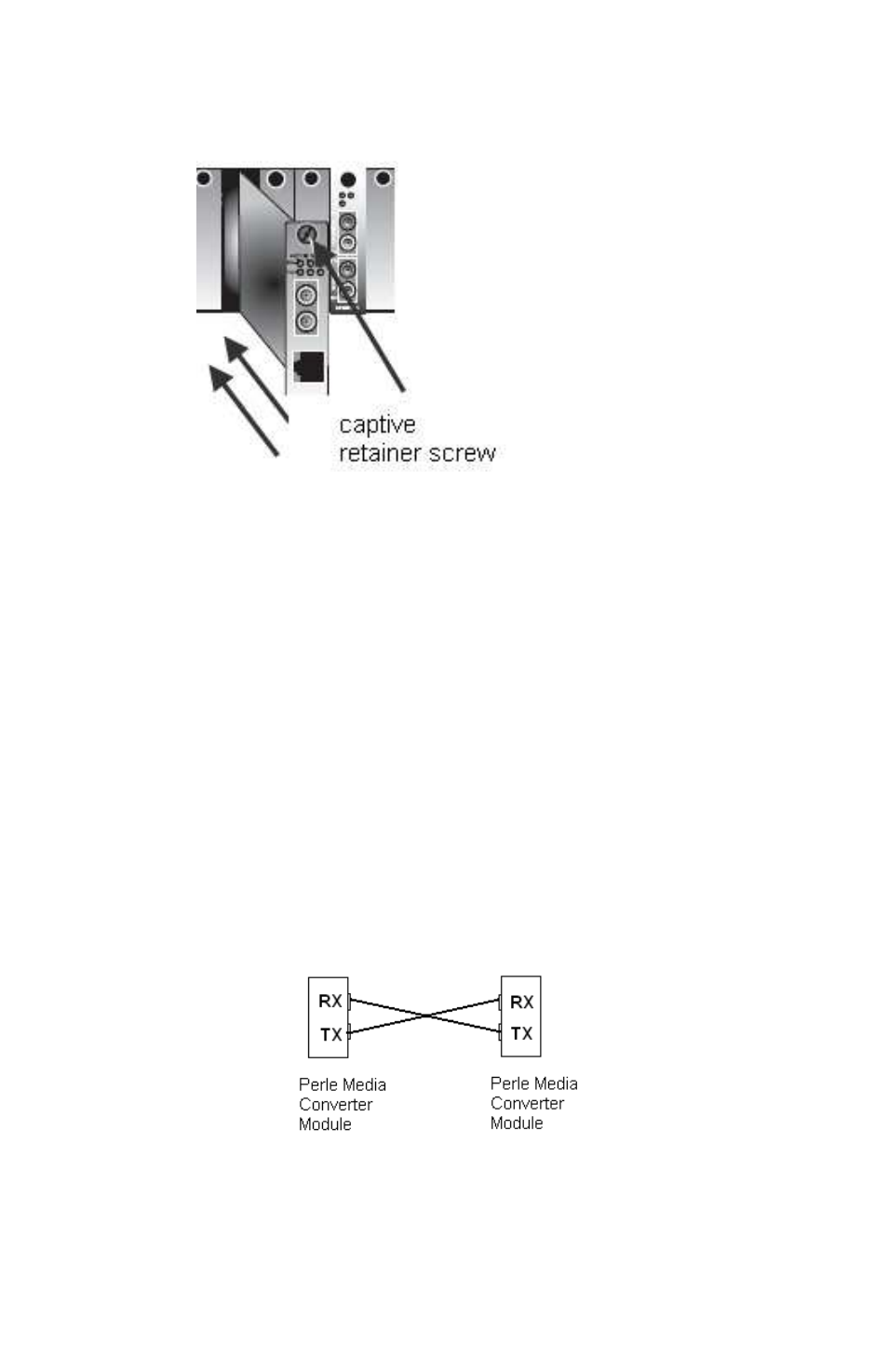

1. Loosen the captive retainer screw on the front of the Media
Converter Module and gently pull the module out.
2. If not inserting a replacement Media Converter Module,
cover the opened slot with a face plate and secure the
screw.
Installing the Duplex Fiber Cable
Locate a 100Base-X compliant duplex (2 strands) fiber cable
with the appropriate connectors.
Connect the fiber cables from the Media Converter Module to the
other Media Converter/switch/fiber device ensuring that the RX
and TX are reversed at the opposite end.
