Controls and displays
27
En
03

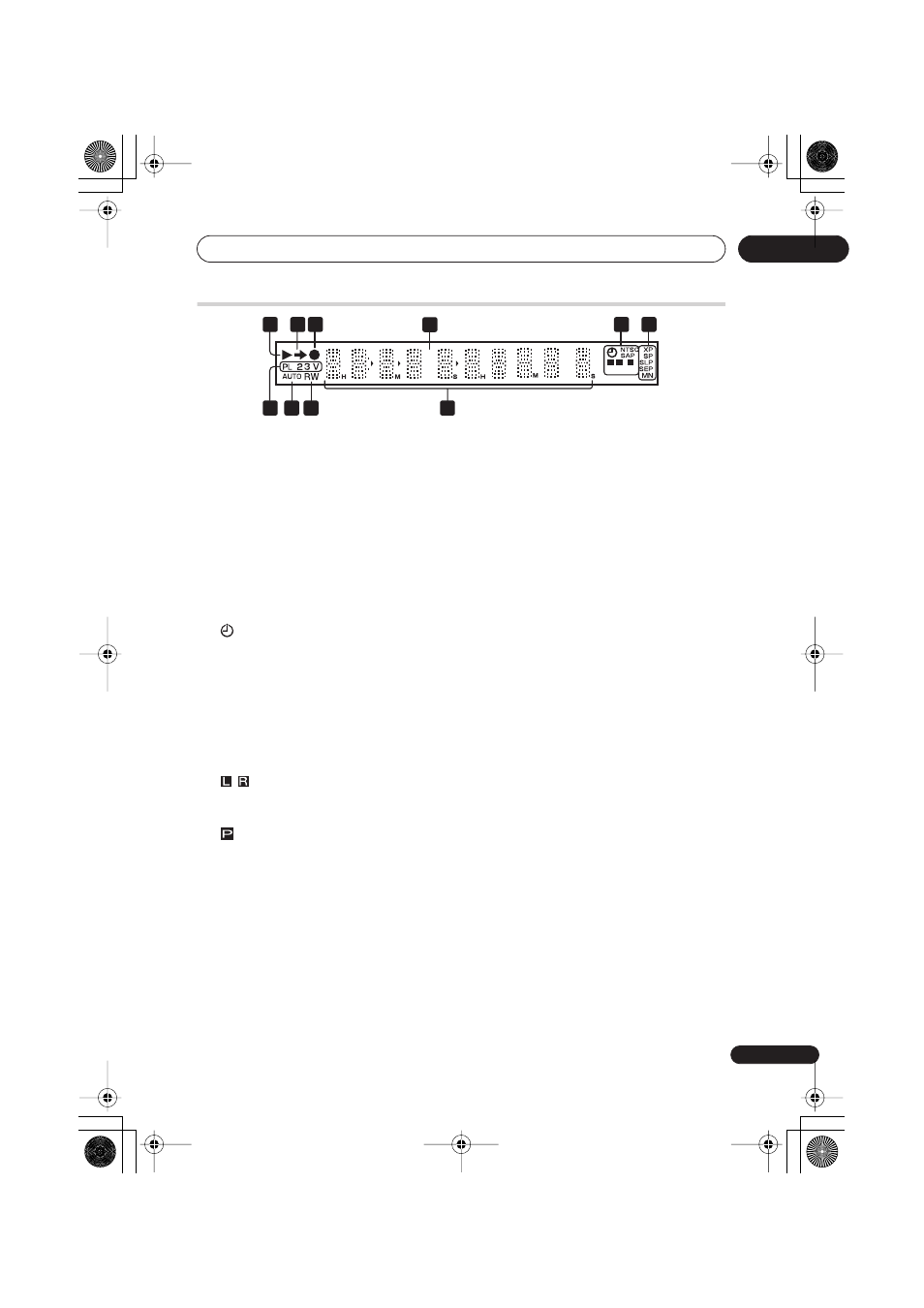

Display
1
Lights during playback; blinks when
playback is paused.
2
Lights when copying.
3 ì
Lights during recording; blinks when
recording is paused.
4 PM
Lights to indicate PM (after midday) for the
clock display.
5 (page 38)
Lights when a timer recording has been
set. (Indicator blinks if the timer has been
set to DVD but there isn’t a recordable
disc loaded, or the timer has been set to
HDD but the HDD is not recordable.)
NTSC
Lights when the video output signal
format is NTSC.
(page 107)
Indicates which channels are recorded
when dual mono is selected.
(page 106)
Lights when the component video output
is set to progressive scan (except in
some cases when a component is
connected using HDMI).
SAP (page 36)
Lights when the currently selected TV
channel has a Secondary Audio
Programme channel.
6 Recording quality indicators (page 36)
XP
Lights when the recording mode is set to
XP (best quality).
SP
Lights when the recording mode is set to
SP (standard play).
LP/SLP
Lights when the recording mode is set to
LP (long play) or SLP (super long play).
EP/SEP
Lights when the recording mode is set to
EP (extended play) or SEP (super
extended play).
MN
Lights when the recording mode is set to
MN (manual recording level) mode.
7 Character display
8 R/RW
Indicates the type of recordable DVD loaded:
DVD-R or DVD-RW.
9 AUTO
Lights when Auto Start Recording has been
set, and during Auto Start Recording.
10 PL (page 67)
Lights when a VR mode disc is loaded
and the recorder is in Play List mode.
2 3 (page 114)
Shows the remote control mode (if nothing
is displayed, the remote control mode is 1).
V
Lights when an unfinalized Video mode
disc is loaded.
P R L
8 9 7
2 3 5 6 1
10
PM
4
