" HALF-BLIND DOVETAILS

PREPARING ROUTER

Prepare router the same as for

1

/

2

" half-blind dovetails except install 42054 templet guide, 43639 bit, and adjust depth

of cut (B) Fig. 5 to

9

/

16

".

CLAMPING DRAWER PARTS

Drawer parts are clamped in the same manner as those for

1

/

2

" half-blind dovetails except for the following:

1.

Position the

1

/

4

" half-blind dovetail templet so that there is

9

/

32

" from back of templet slots to edge of drawer front

(see Fig. 14).

2.

Position drawer front so the left edge is

1

/

8

" (see Fig. 14) past the left edge of the first templet slot.

3.

Locate #3 edge guide against drawer front.

ROUTING DOVETAILS

Route dovetails and check for fit the same as those for

1

/

2

" half-blind dovetails.

9

1

/

4

" Half-Blind Dovetails

The following are required to produce

1

/

4

" half-blind dovetails:

889676 #3 Edge Guides (furnished with Model 4114)

Available

42237

Locknut (furnished with Model 4112)

as

4114

1

/

4

" Half-Blind Dovetail Templet

Accessories

42054

5

/

16

" Templet Guide

43639

High Speed Steel,

1

/

4

" Dovetail Bit

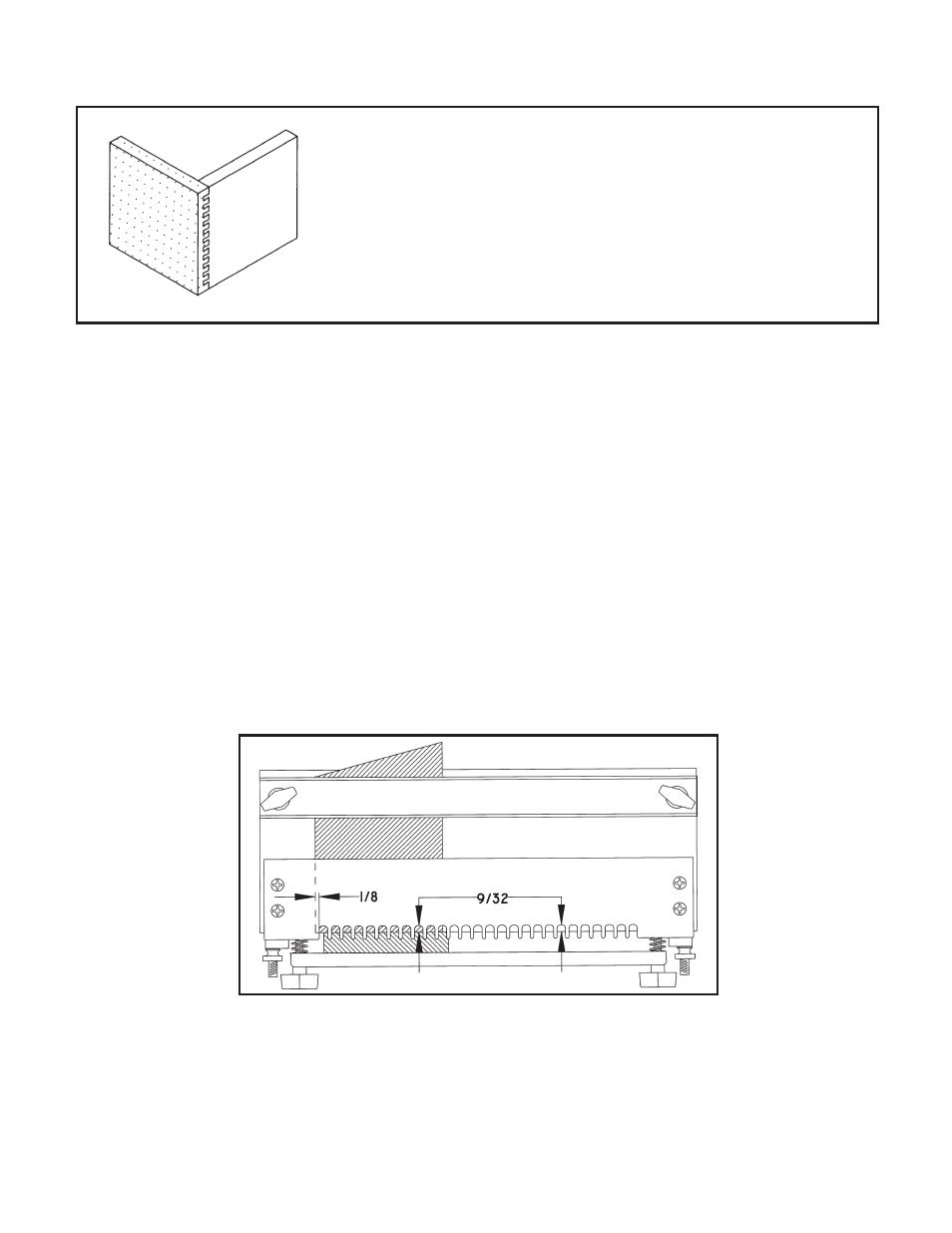

Fig. 13

Fig. 14
