12

ROUTING BOX JOINTS

1.

Before turning on router, place it on templet and make sure bit will not hit Dovetail Fixture/Jig as it cuts into scrap
material.

2.

Carefully rout box joints.

3.

Loosen front clamp, rotate material as shown in Fig. 21 and position up against templet and edge guide. Clamp
securely in place and rout other end.

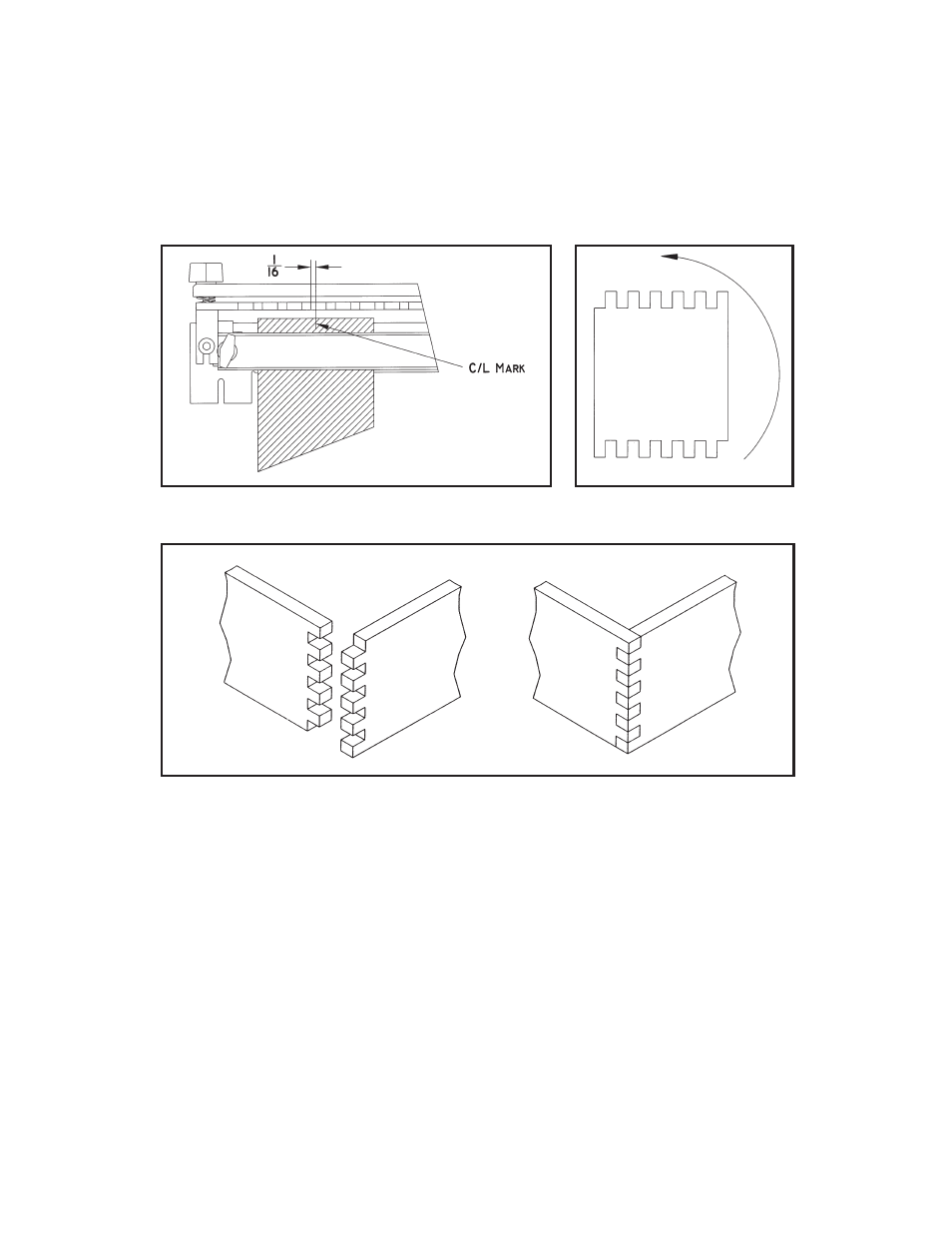

Fig. 20

Fig. 21

Assemble Box

Fig. 22
