6

1

/

2

" HALF-BLIND DOVETAILS

PREPARING ROUTER

1.

DISCONNECT ROUTER FROM POWER SOURCE.

2.

Insert templet guide, (A) Fig. 4, in hole (B), in router sub-base (C).

3.

Install templet guide locknut (D) on templet guide and firmly tighten to lock templet guide in sub-base.

4.

Insert dovetail bit, (A) Fig. 5, through templet guide into router collet.

5.

Adjust router so dovetail bit projection (B) from bottom of router sub-base (C), is

9

/

16

".

CLAMPING DRAWER PARTS

1.

Temporarily clamp the left side of the drawer “inside out” under front clamp bar and extending approximately

1

/

4

"

above top surface of the base as shown in Fig. 6.

The following are required to produce

1

/

2

" half-blind dovetails.

#1

Edge Guide (furnished with Model 4112)

4113

1

/

2

" Half-Blind Dovetail Templet (furnished with Model 4112)

42046

5

/

8

" Templet Guide (furnished with Model 4112)

Available

42237 Locknut (furnished with Model 4112)

as

Accessories

43705 Carbide Tipped,

1

/

2

" Dovetail Bit (

1

/

4

" Shank)

or

43750 Carbide Tipped,

1

/

2

" Dovetail Bit (

1

/

2

" Shank)

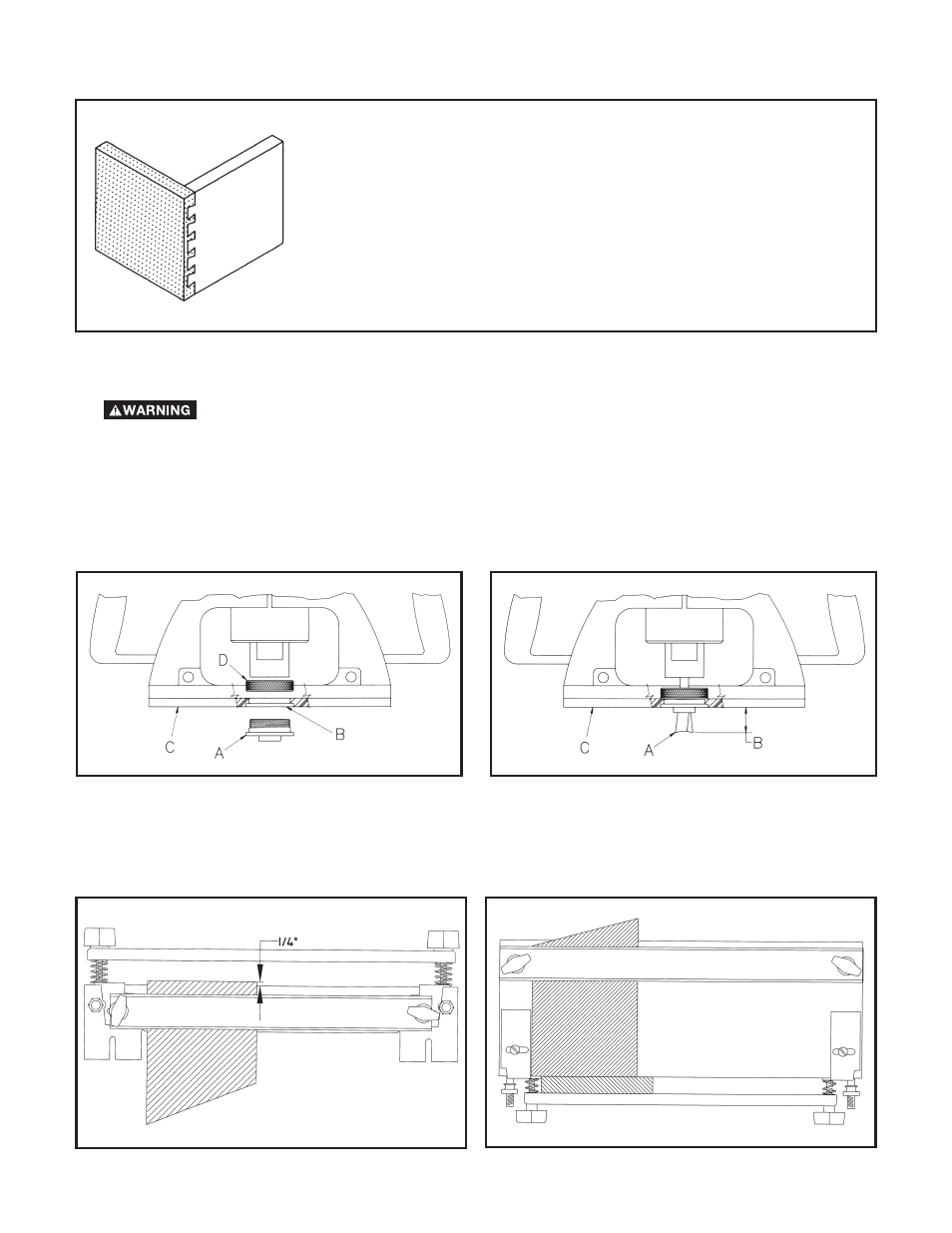

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7
