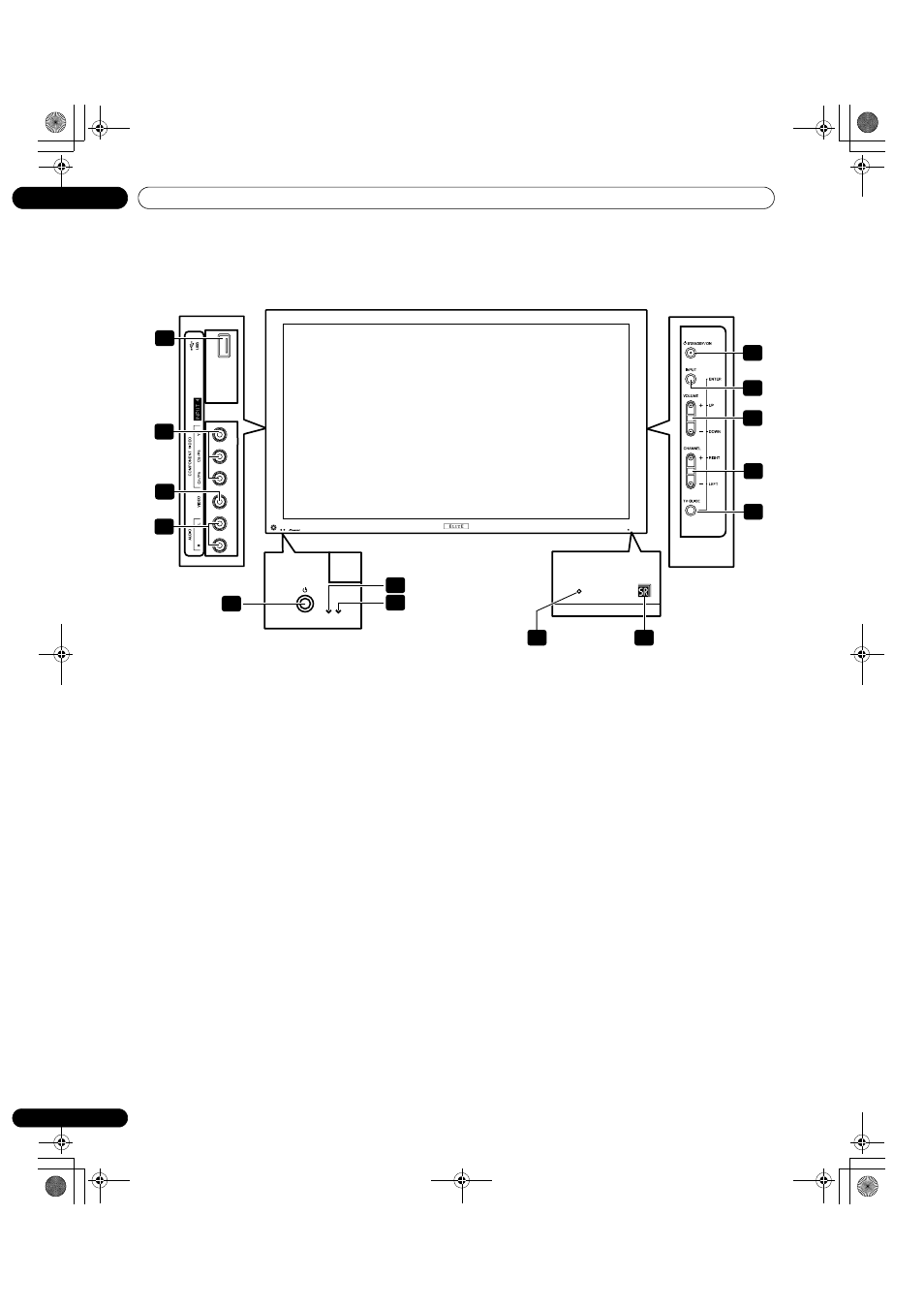

Part Names 04
1 a POWER button
(See page 26)
2 POWER ON indicator
(See page 26)
3 STANDBY indicator
(See page 26)
4 REC TIMER indicator
5 Remote control sensor
(Side view)
6 STANDBY/ON button
7 INPUT button (ENTER button*)
8 VOLUME UP/DOWN buttons (UP/DOWN
buttons*)
9 CHANNEL UP/DOWN buttons (LEFT/
RIGHT buttons*)
10 TV GUIDE button*
11 USB port
12 INPUT 4 terminals (COMPONENT VIDEO: Y,
C B /P B , C R /P R )
13 INPUT 4 terminal (VIDEO)
14 INPUT 4 terminals (AUDIO)
* ability to operate the TV Guide On Screen™ system.
5 4
6
8
9
10
7
11
13
12
14
1 3
2
Front/side view
(PRO-1140HD)
