Philips ICANA 5350 - Manual

1 2
Package contents
• 1 cordless handset equipped with a telescopic antenna and a battery.
• 1 base station equipped with a loudspeaker.
• 1 power supply block which provides the base with electrical power.
• 1 telephone cable.
• 1 user’s manual.
Your telephone’s operating capacity
Your telephone works from a battery located inside the handset.
• Battery charging starts as soon as you place the handset on its base. A completely discharged handset will take
about 24 hours to charge.
• With a fully charged new battery, your handset will be able to operate for about 8 hours on-line and about 8 days
on stand-by (in other words when not communicating).
• To recharge your telephone, the base must be connected to a power supply. Only use the mains adaptor supplied
with your phone.
Note:
You can place your handset on the base station with the keypad face up or face down.
Protecting your telephone
Fraudulent use of your telephone line by another cordless phone is unlikely as the base station assigns the handset
one of a possible 65,535 identification codes.
This code means that only your handset is authorised to use your line for making calls.
In the event of a power failure
In the event of a power failure, your Icana 5350 cordless telephone will lose:
• the Redial memory.
• any unconfirmed number in course of memorisation.
But will save:
• the numbers in your phonebook.
• the caller list.
3
Helpful hint
To ensure maximum handset charge, replace the handset on the base station regularly.
4
Setting up your Icana 5350
1 On the top side of the base station, connect
the telephone cable to the smaller of the
sockets and then to the telephone socket in
the wall.
2 Connect the power supply cable to the larger
of the sockets on the base station and then
to the power outlet.
The indicator light on the base station lights up. Your
telephone is now correctly connected.
3 Fully extend the base station antenna.
4 Place the handset on its base station and
leave it to charge for at least 15 minutes.
Your telephone is now ready to make or receive calls in “Tone
dialling” mode*.
To charge the battery completely, leave the
handset on its base station for 24 hours.
Mains power supply Telephone line
6
Changing the dial mode
Your telephone has two possible dial modes: "tone" or "pulse". The factory setting for your telephone is "tone"*. If
you are not connected to an electronic central exchange, you need to use "pulse".
To set the dial mode from “tone” to “pulse”:
1 Pick up the handset and press ® .
The indicator light on handset and base station starts flashing.
2 Press the key.
3 Press the key.
Your handset emits 3 beeps to confirm. The telephone is now ready to dial in "pulse" mode.
To set the dial mode from "pulse" to "tone":
1 Pick up the handset and press ® .
The indicator light on handset and base station starts flashing.
2 Press the key.
3 Press the key.
Your handset emits 3 beeps to confirm. The telephone is now ready to dial in "tone" mode.
* When your telephone line is connected to an electronic exchange, the "tone" mode provides faster dialling, and
access to special telephone network services.
Loop Disconnect Signalling:
Although this equipment can use either loop disconnect or DTMF signalling (Tone dialling), only the performance of
the DTMF signalling (Tone dialling) is subject to regulatory requirements for correct operation.
It is therefore strongly recommended that this equipment is set to use DTMF signalling (Tone dialling) for access to
public or private emergency services. DTMF signalling (Tone dialling) also provides faster call set up.
7 8 5

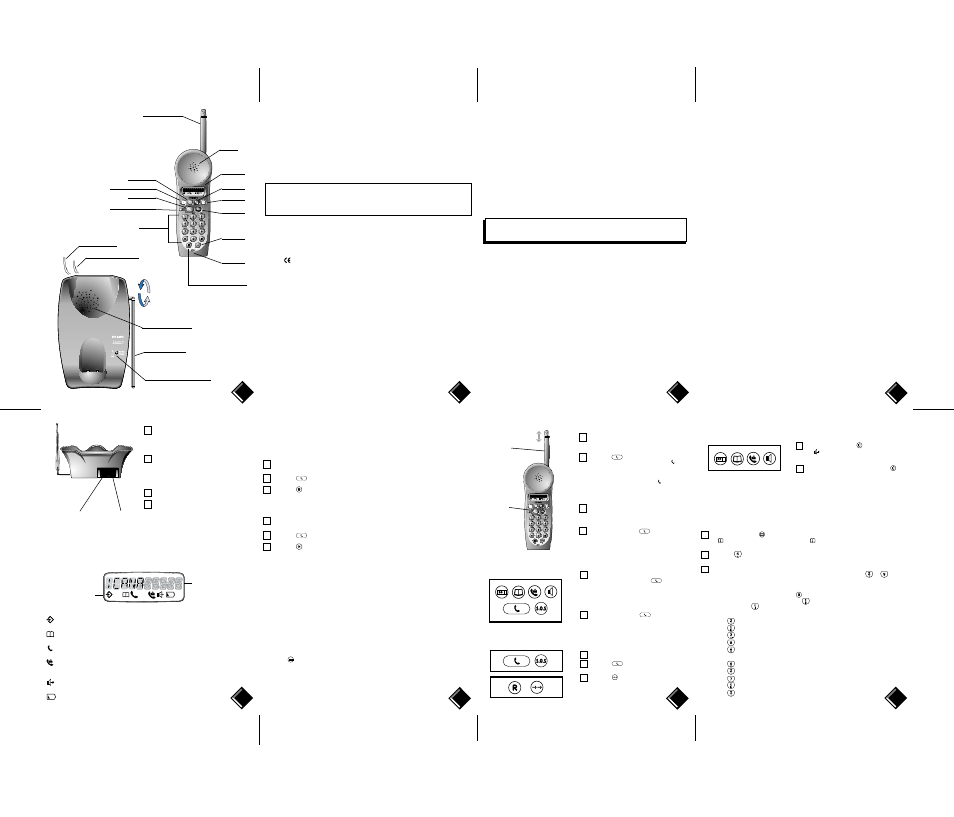

loudspeaker
key
telescopic antenna
phonebook key
manual channel strip key
talk key
phoneline indicator light
earpiece
LCD display
caller list key
SOS key
microphone
recall (for use with Network
services or attached to a PABX)
and programming key
redial key
base station loudspeaker
base station antenna
phoneline / power indicator light
Copyright © Philips 1998 - All rights reserved.
mains power supply cable
telephone cable
dialling
keypad
Thank you for purchasing a
Philips Icana 5350 cordless telephone
Your Icana 5350 cordless telephone incorporates advanced Philips cordless technology for even greater simplicity
and user-friendliness.
Your Icana 5350 is fitted with a multi-channel radio system, which allows you to avoid interference during calls
using the D2NS system (Dual Dynamic Noise Suppressor) to eliminate hiss.
Your Icana 5350 is fitted with a liquid crystal display screen on the handset, giving you all the features of a real
phonebook - 25 names and telephone numbers. You can also identify the telephone number of the caller
(Caller ID)* and consult the Caller ID list*. Lastly, you can see how long your calls last.
This instruction manual will help you discover your product’s features and get to know its wide range of functions.
SAFETY INFORMATION:
The only way to cut off the power supply to the telephone is to disconnect the power supply block from the mains
outlet. Be sure that the mains outlet is located near the telephone and is easily accessible.
Important! This telephone must be used in conjunction with a remote-powered main telephone (not requiring electrical
current).
The mark on the product certifies its compliance with all applicable technical regulations, as of the date of
authorisation, concerning user safety and electromagnetic interference according to directives 73/23/EEC, 89/336/
EEC and 93/68/EEC.
THIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY
TELEPHONE CALLS WHEN THE POWER FAILS. ALTERNATIVE
ARRANGEMENTS SHOULD BE MADE FOR ACCESS TO EMERGENCY
SERVICES.
ELECTRICAL CONNECTION:
Mains power supply 230 volts, single-phase AC, except for installations with the IT diagram as defined in standard
EN 60-950. Important ! The voltage of the network is classified as hazardous according to the criteria of standard
EN 60-950.
TELEPHONE CONNECTION:
The voltages used on this network are classified as TNV-3 (telecommunications network voltages), defined in
standard EN 60-950.
RINGER EQUIVALENCE NUMBER (REN):
Your Icana 5350 has a Ringer Equivalence Number (REN) of 1.0. To determine the maximum number of telephone
that can be connected to your line, add together the individual RENs of all the apparatus you wish to connect. If this
total exceeds four, one or all of your telephones may not ring correctly.
* Only if you have subscribed to this service provided by your local telephone company.
This product may be used legally in the country where the appropriate authority has given its specific
authorisation. This authorisation appears on a label at the back of the base station.
In the interest of improving our products and services. Philips reserves the right to alter the specifications
contained in this document at any time without prior notice.
Your telephone’s indicator lights
THE BASE STATION HAS 1 GREEN INDICATOR LIGHT:
• Lit when the base station is powered up by the mains adaptor.
• Flashes in the following cases:
– during a call (line busy).
• Unlit when the base station is not powered up.
THE HANDSET HAS 1 GREEN INDICATOR LIGHT:
• Lit when the handset is on-line.
• Flashes in the following cases:
– when receiving a call.
– while establishing a radio link for an outgoing call.
– during a programming phase.
• Unlit in all other cases.
The sounds your telephone makes
Your telephone makes the following sounds:
• a unique ringing tone, if a call is incoming.
• 1 short beep , when you press a key.
• 1 long beep , when the radio link between the base station and the handset has been lost.
• 1 beep , when replacing the handset on the base station.
• 3 beeps , to confirm any programming changes you have made to your telephone.
• 5 beeps , to tell you that your handset needs to be recharged on its base station.
Recommendations and precautions
INSTALLATION
• Take care not to install the base close to electrical appliances (heater, TV, domestic appliance, etc.) or
metal supports (doors/windows, partitions, etc.), which could impair the quality of communication and restrict
the range of your phone.
• Do not install the base in a humid room or close to a strong source of heat.
SAFETY
• Do not get the handset wet.
• Do not open the telephone, as this could expose you to high voltages. Contact the customer support service for
any repairs.
• Avoid all contact between the battery and any conducting materials (keys, paper clips, rings, bracelets, etc.).
• Avoid all contact between the charge terminals (base or handset) and any conducting materials (keys, paper
clips, rings, bracelets, etc).
MAINTENANCE
• Before cleaning your telephone, disconnect the power supply cable and the telephone cable. Use a cloth or
chamois leather moistened with a light soapy water solution, then wipe off with a dry cloth. This will ensure that
your telephone stays looking as good as new.
• Never spray the phone with cleaning products or solvents.
• We recommend periodically cleaning the charge terminals on the base and the handset with a dry,
lint-free cloth.
These symbols
tell you what is
happening on
your phone.
This line of the
display shows up
to 10 numbers or
characters.
Your handset display
The display of your Icana 5350 has 6 symbols:
indicates that:
– you are programming your phone.
indicates that:
– you are consulting or modifying your phonebook.
indicates that:
– you have the line (flashing) or a call is in progress (on).
indicates that:
– new calls have been stored in the caller list since your last consultation (on).
– a network message is sent (flashing).
indicates that:
– the base station loudspeaker is on.
indicates that:
– when on the base station, the handset is charging.
– when out of the base station, the batteries are not charged enough (flashing).
Changing radio channels during a call
During a call, if the radio link is poor, you can change radio channels and possibly improve sound quality.
To change radio channels during a call:
Press the key on the handset.
– If a new channel is found, the call will continue on this channel.
– If another channel is not found, the call will continue on the initial channel.
Notes:
• If you are too far from the base station when the radio channel changes, the call will be cut off.
• When the radio channel changes during a call, your correspondent will hear a short succession
of beeps.
1 To answer: pick up the handset, fully extend
the antenna, and press the key.
When the phone rings, the telephone number of the
caller is displayed (if you subscribe to the caller
identification service). Once the call is answered, the call
timer is displayed.
2 To hang up: press the key again, or just
replace the handset on the base station.
The display shows the call time for 5 seconds.
Answering a call
Redialling the last number dialled (Redial)
1 Pick up the handset.
2 Press the key on the handset.
Wait for the tone.
3 Press the key on the handset.
The last number dialled (maximum of 23 digits)
is displayed and is automatically redialled.
Making a call
1 Pick up the handset and fully extend the
antenna.
NOTE! The handset battery must be charged.
2 Press the key on the handset.
The search for a free channel starts. The symbol
flashes. The base station and handset indicator lights
flash.
As soon as the link is established, the symbol and the
handset indicator light stop flashing and remain lit. The
indicator light on the base station continues flashing and
you will hear the dial tone.
3 Dial the number you want.
The display shows the dialled number (for 5 seconds),
then the call timer.
4 To hang up, press the key on the
handset, or just replace the handset on the
base station.
The display shows the call time for 5 seconds.
telescopic
antenna
Talk key
Putting the call on the loudspeaker
Your Icana 5350 base station is equipped with a loudspeaker so that other people with you can listen to the
conversation.
Saving a name and a number in the phonebook
With your Icana 5350, you can save in the phonebook 25 numbers and their associated names (up to 10 characters).
This function allows you to automatically dial the numbers you use most often. To ensure correct operation, stay
close to the base station during the programming phase.
To store in the phonebook a telephone number and the associated name:
1 Press the phonebook key on the handset.
The symbol and the handset indicator light flash. The symbol remains lit when the radio link is established.
EMPTY is displayed if there is no entry in the phonebook.
2 Press the key.
NAME: is displayed.
3 Enter the name (up to 10 letters) using the handset keypad:
The letters of the alphabet are arranged in groups of three or four beside the numbers to . Press the
key corresponding to the required letter or number 1,2, 3, 4, or 5 times.
– To validate the last character (letter or digit) typed, wait for 3 seconds or press another character.
– To delete the last character typed, press the key.
– To type a space between two letters, press the key.
– To type “ – ”, press twice.
Example: to enter the name “A DUMMAS-2”,
– Press once (A),
– Press once (A ),
– Press once (A D),
– Press twice (A DU),
– Press once (A DUM),
– Wait for 3 seconds (A DUM),
– Press once (A DUMM),
– Press once (A DUMMA),
– Press four times (A DUMMAS),
– Press twice (A DUMMAS-),
– Press four times (A DUMMAS-2),
1 During a call, press the key on the handset.
The symbol is displayed and the sound is amplified
through the loudspeaker on the base station.
2 To turn off the loudspeaker, press the key
on the handset again.
* Your telephone line is connected to a central. The “tone dialling” mode makes possible the consultation of specific
services of telephone network through short numbers.
