Vesa mount your monitor – Planar PT1710MX User Manual
Page 13
9

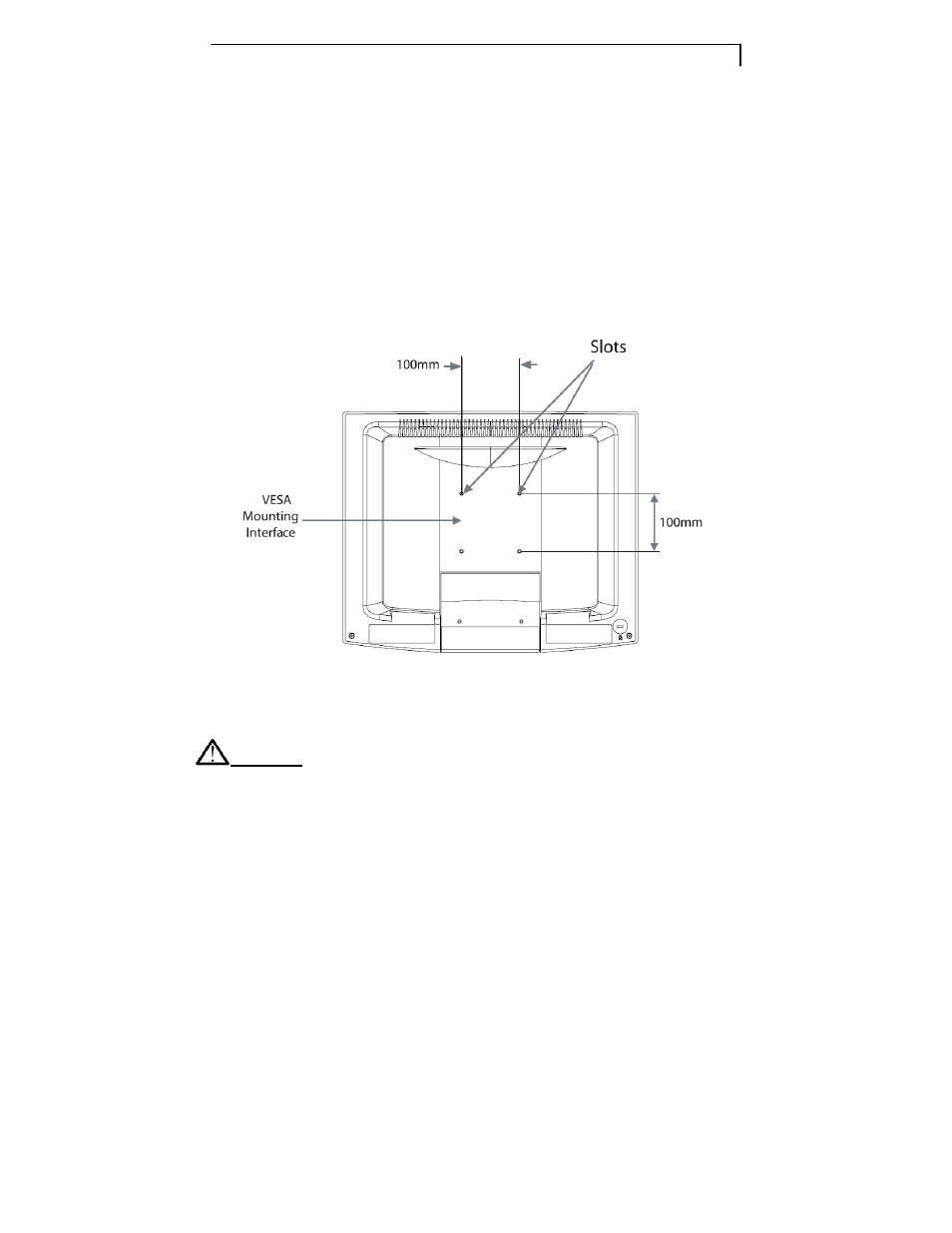

VESA Mount your monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting
Interface Standard which defines a physical mounting interface for flat panel
monitors, and corresponding standards for flat panel monitor mounting
devices, such as wall and table arms. The VESA mounting interface is
located on the back of your monitor.
To mount the monitor on a swing arm or other mounting fixture, follow the
instructions included with the mounting fixture to be used.
Warning!
Please select the proper screws!
The distance between the back cover surface and the bottom of the
screw hole is 8mm Please use M4 screw diameter with a maximum
length of 8 mm.
