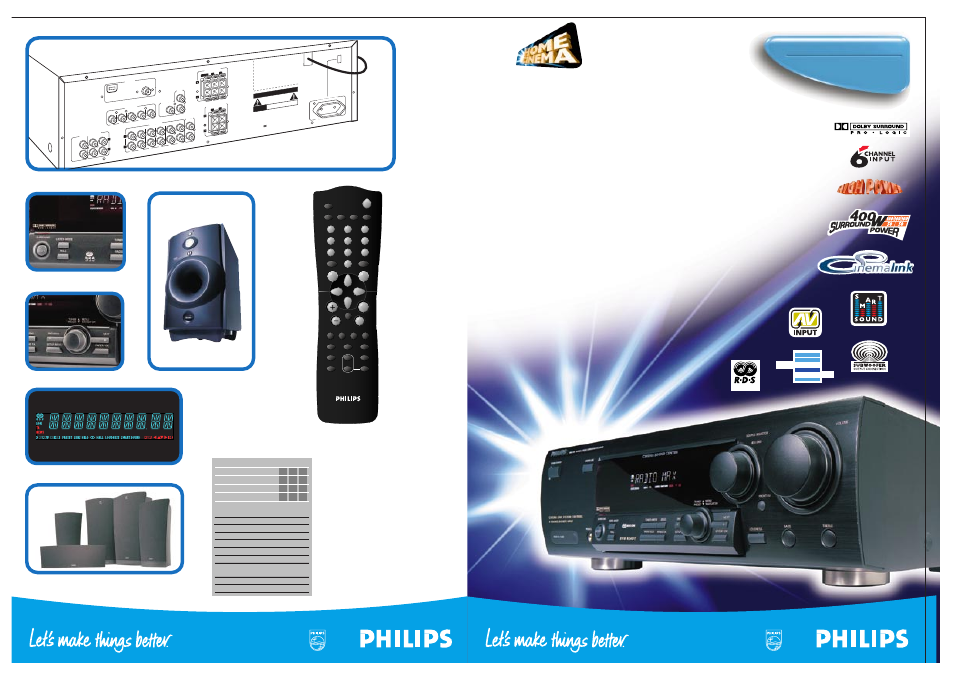

Philips FR755 - Manual

Audio/Video Surround Sound Receiver
• Dolby Surround ProLogic® Sound
• 6 Channel Input (5.1 DVD, MPEG, AC-3/Dolby Digital® and DTS prepared)
• 400 Watts Surround Power Output :
3 x 100Watts (left, right, center), 2 x 50 Watts (rear)
• 'Hall' feature for normal stereo with rear speaker sound (simulated surround)
• Loudness, Bass and Treble Control
• Equalizer Smart Sound modes; Personal, Speech, Music, Movie, Multi-Media
• All Dolby Surround ProLogicModes and Delay Times
• Subwoofer Output Connection
• 4 Video input and 2 output connections
• Front AV/Game input
• Station Name Display (manual entry of radio station names)
• RDS EON with Traffic Announcement and NEWS! (-/00 & -/14 only)
• 'Cinema Link' System Control Bus
• Set-up Menu Navigator
• 42-key Audio/Video Remote Control
• Harmonized Philips Home Cinema Components design
SET UP MENU
NAVIGATOR
FR755
A/V Surround Receiver
NEWS•TA
EAN Code: 87 10101 35707 2 (/00)
EAN Code: 87 10101 35708 9 (/01)
EAN Code: 87 10101 35709 6 (/14)
Product Dimensions:
435mm W x 135mm H x 350mm D (set)
Product weight: 9.4kg
Package Dimensions:
519mm W x 216mm H x 488mm D
Package weight : 10.0 kg
Carton contains: receiver FR755, remote control, batteries,
instruction for use, AM + FM wire antenna, warrantee information,
scart to audio adaptor (/00,/14)
Printed in Singapore
Date printed : Dec 1998
©1998 Koninklijke Philips Electronics N.V.
All rights reserved.
Specifications subject to change without notice.
Dolby, Dolby Digital, Dolby Pro-Logic® and the double-D
symbol are trademarks of Dolby Laboratories
/00 /01 /14
Asia Pacific •
Latam •
Europe •
E Europe •
Tuner
FM65.81 - 74 MHz •
FM87.5 - 108 MHz • • •
MW531 - 1602 kHz • •
MW530 - 1700 kHz •
LW 153 - 279 kHz • •
RDS • •
mains supply
120/230V 50~60Hz •
230V/50Hz • •
* Recommended speaker package : Philips FB755
Display Graphics
Sound Panel
Back View of FR755
Menu Navigator * Recommended subwoofer : Philips FB301
* not available in all countries
2
A A TV
MENU
H
1 3 2
4 6 5
7 9 8
0
+
b
-
н л Е
З
Й
±
DVD/6CH
OK
CINEMA LINK
GUIDE
DISC
FR.D/INDEX PAUSE
SURR. ON/OFF DISPLAY/T-C NEWS/TA
SURR. MODE SMART SOUND REAR
CHANNEL
TEST TONE LOUDNESS
CHANNEL/TRACK
TUNER
CD CDR/TAPE VCR TV
H o m e C i n e m a C o n t r o l
SUBWOOFER
FRONT SPEAKERS L R EACH SPEAKER ≥ 6 Ω
CENTER
SURROUND SPEAKERS
R L EACH SPEAKER ≥ 3 Ω
L
R
FRONT SURR.
CENTER
SUB-
WOOFER
6 CHANNEL / DVD INPUT
CINEMA LINK
VOLTAGE SELECTOR 220-240 V
110-127 V
TOTAL 100W MAX.
AC OUTLET 50-60 Hz
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
AVIS RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
Designed and developed by Philips in the
European Community
IN PLAY
OUT
REC
IN PLAY OUT
REC
IN
IN OUT OUT
REC IN PLAY
ANTENNA
FM 75 Ω
VIDEO IN/OUT
AM LOOP
DVD MON VCR TV PRE-OUT
VCR TV CD CDR/TAPE AUDIO IN/OUT
IN IN
PRE-OUT CENTER Manufactured under licence from Dolby
Laboratories Licencing Corporation.
"DOLBY", "PRO-LOGIC" and the Double-D
Symbol are T
rademarks of Dolby
Laboratories Licencing Corporation.
L
R
