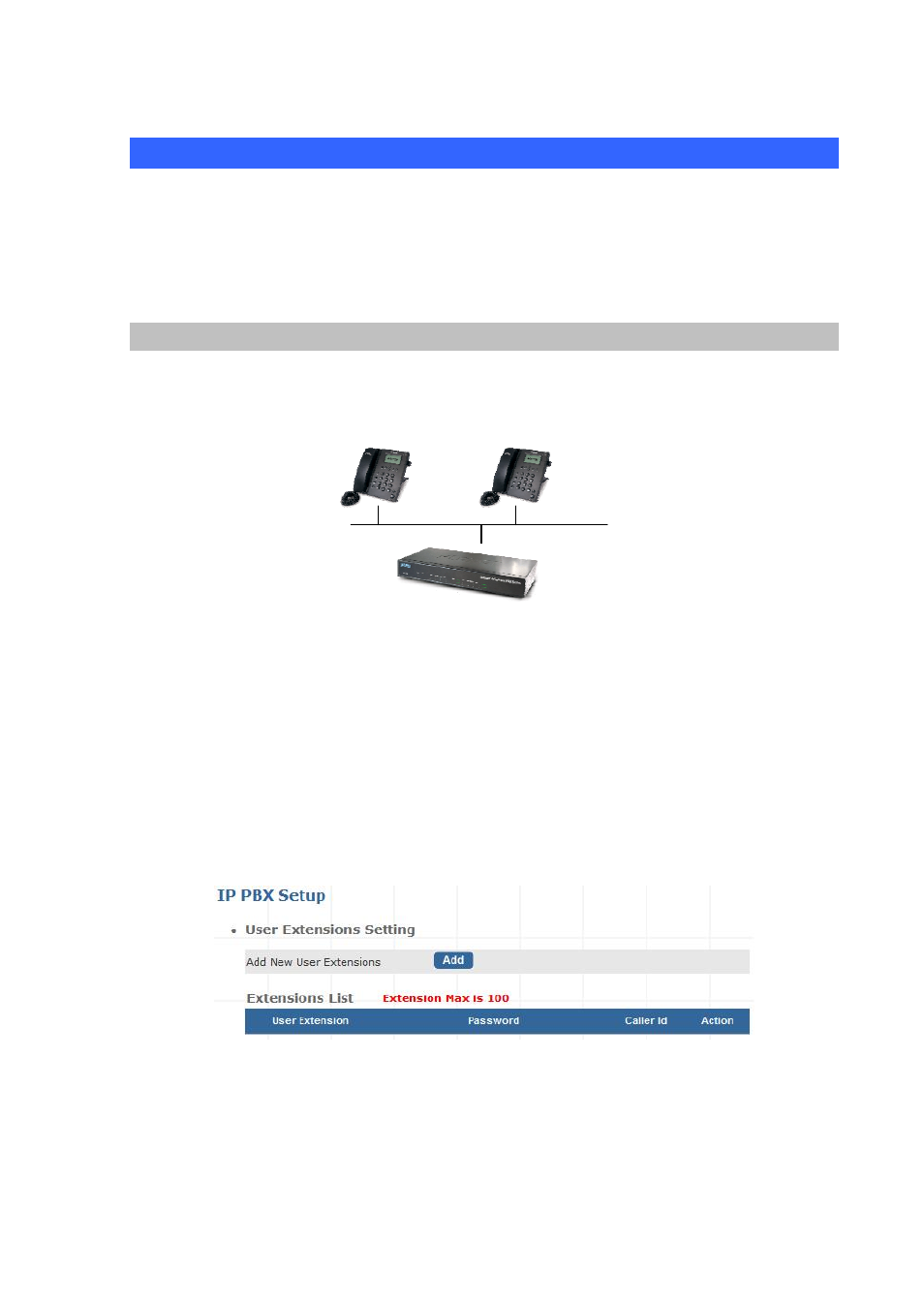

Appendix E
Voice Communication Samples
The chapter shows you the concept and command to help you configure your IP PBX System through
sample configuration. And provide several ways to make calls to desired destination in IP PBX. In this
section, we’ll lead you step by step to establish your first voice communication via web browsers
operations.
IP Phone register to IPX-1900
In the following samples, we’ll introduce IP Phone register to IP PBX applications.
Number: 100 Number: 101
VIP-254T-A
LAN IP Address
(192.168.0.2)
VIP-254T-B
LAN IP Address
(192.168.0.3)
IPX-1900
WAN IP Address
(192.168.0.1)
Figure D-1. Topology of instruction example
¾ Machine Configuration:
STEP 1:
Browse to “IP PBX Setup Æ User Extensions Setup” configuration menu.
Figure D-3. User extension setting of IP PBX
