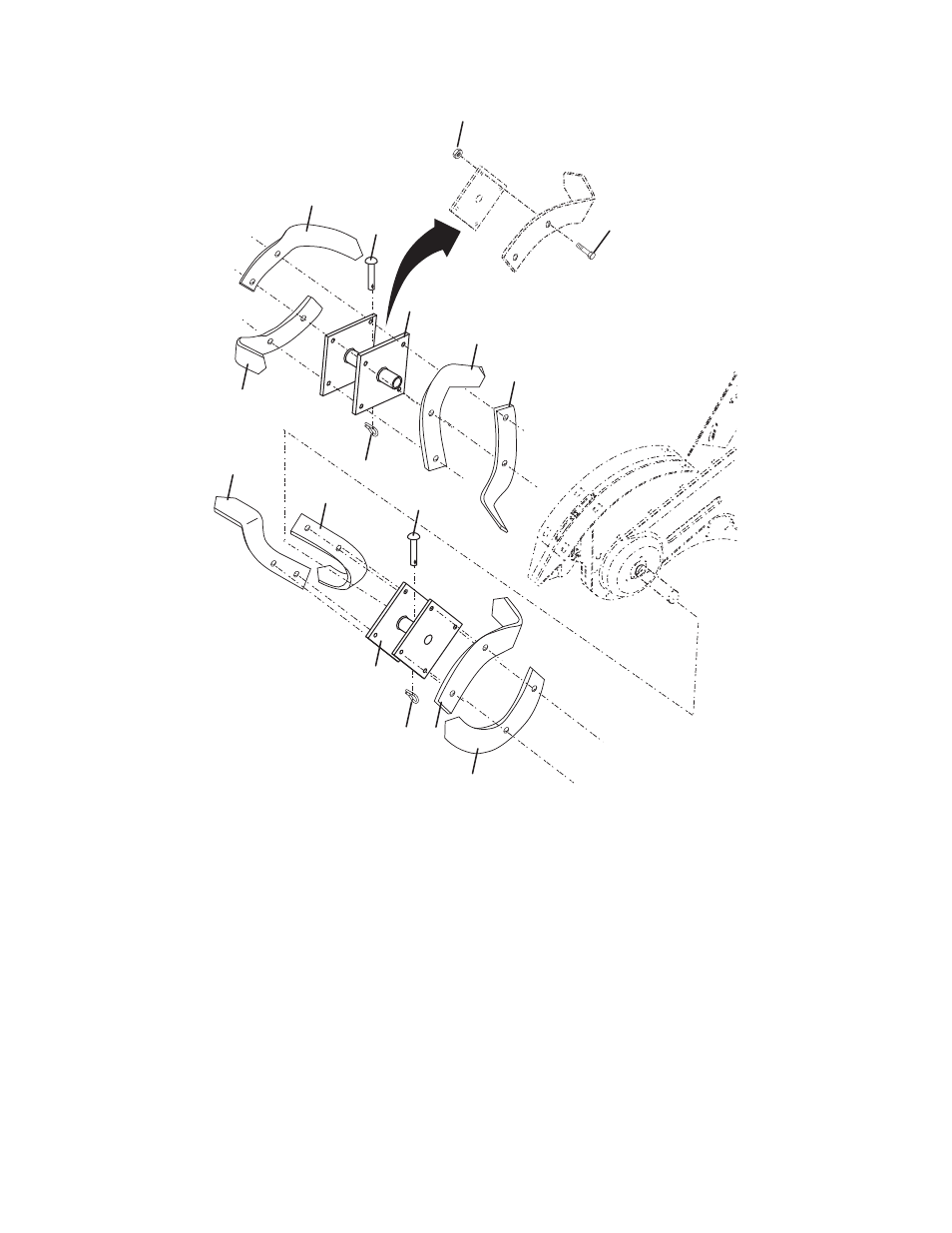

FRONT TINE TILLER - - MODEL NUMBER RT900 (MFG. ID. NO. 96092002100)
TINE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 4459J Tine, Outer, L.H.
2 132673 Clevis Pin
3 6554J Tine, Inner, L.H.
4 3146R Retainer, Spring Zinc
5 132721 Assembly, Hub and Plate, L.H.
8 74610616 Bolt, Hex 3/8-24 x 1
9 4460J Tine, Outer, R.H.
10 132722 Assembly, Hub and Plate, R.H.
11 6555J Tine, Inner, R.H.
34 73540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
