3
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
FRONT TINE TILLER - - MODEL NUMBER RT900 (MFG. ID. NO. 96092002100)

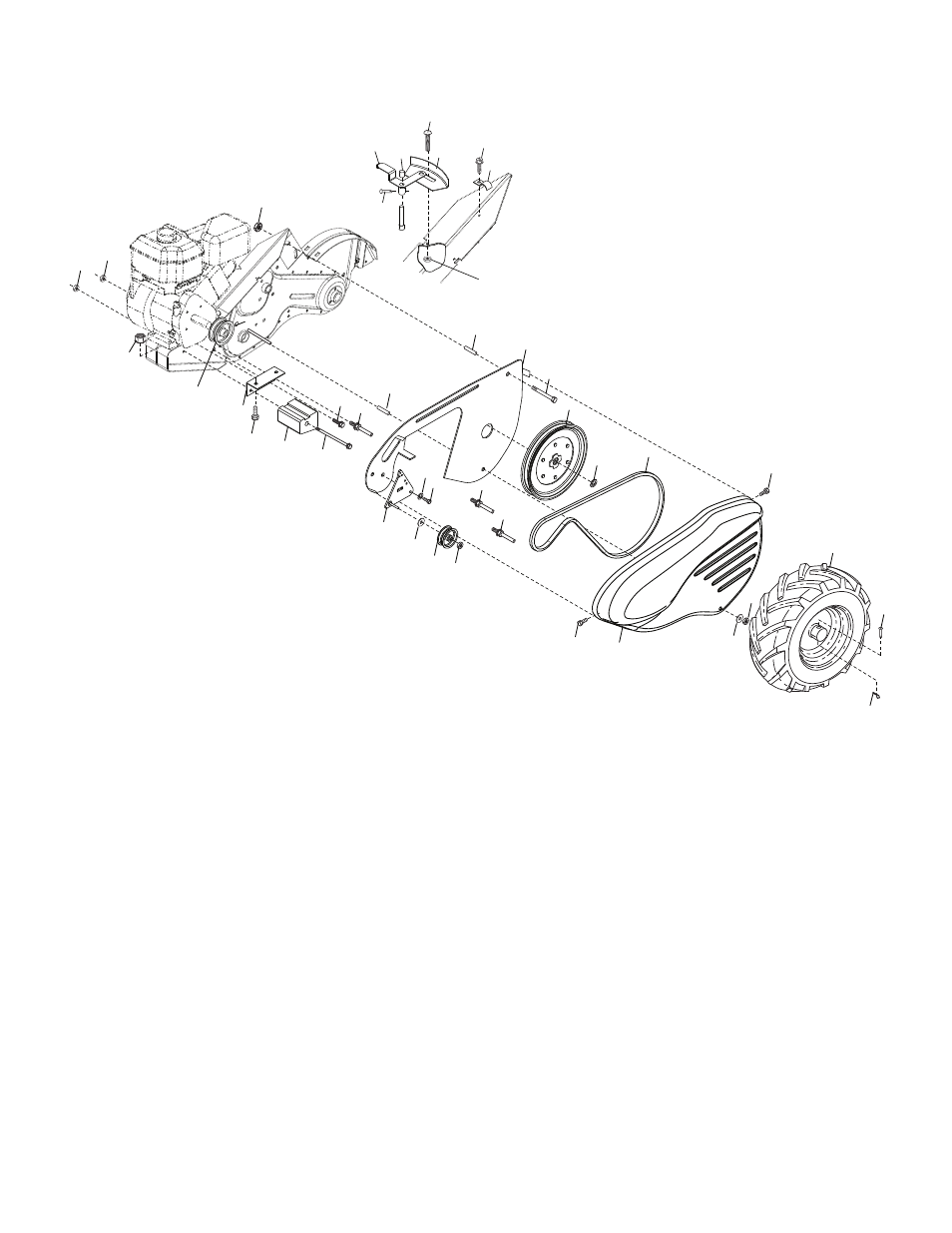

MAINFRAME, LEFT SIDE
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
3 73220600 Nut, Hex 3/8-16
4 432420 Shield, Inner Belt Guard RT
5 164329 Screw, Shift Lever
6 110111X Lever, Shift
7 72110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 8700J Plate, Shift Indicator
9 86777 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 9484R Clip
12 73510400 Nut, Keps Hex 1/4-20 unc
13 23230506 Screw, Set, Hex 5/16-18 x 3/8
14 156117 Spacer, Split 0.327 x 0.42 x 1.220
15 19111116 Washer 11/32 x 11/16 x 16 Ga.
16 145102 Sheave, Transmission
19 12000028 Retainer, Ring
21 110652X Spacer, Split 0.327 x 0.42 x 2.09
22 74770508 Bolt, Fin Hex 5/16-24 unf x 1/2
23 102190X Tire
183122X428 Rim
795R Tire, Valve
24 126875X Rivet, Drilled
25 4497H Clip, Hairpin
26 165501X421 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102194X Bolt, Fin Hex 3/8-16 unc x 10
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 x 1
34 102173X Counterweight, L. H.
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38 74760544 Bolt, Fin Hex 5/16-18 unc x 2-3/4
39 140062 Cap, Plunger Blk
40 170488 Screw, Hex Wsh Slt #10-24 x 1/2
44 73800500 Nut, Lock Hex w/Ins 5/16-18 unc PL
65 73970500 Nut, Lock Hex Flange
66 19131312 Washer 13/32 x 13/16 x 12 Ga.
67 74760524 Bolt, Fin Hex 5/16-18 unc x 1-1/2
68 73510600 Nut, Keps Hex 3/8-16 unc
69 164173 Keeper, Belt
68
65
68
65
67
34
31
30
28
3
40
26
15
66
44
40
27
19
16
38
4
21
14
32
69
69
33
36
13
37
39
6
5
8
12
7
9
10
29
22
mainframe_left_25
24
23
25
