Page 18

STEP 4:

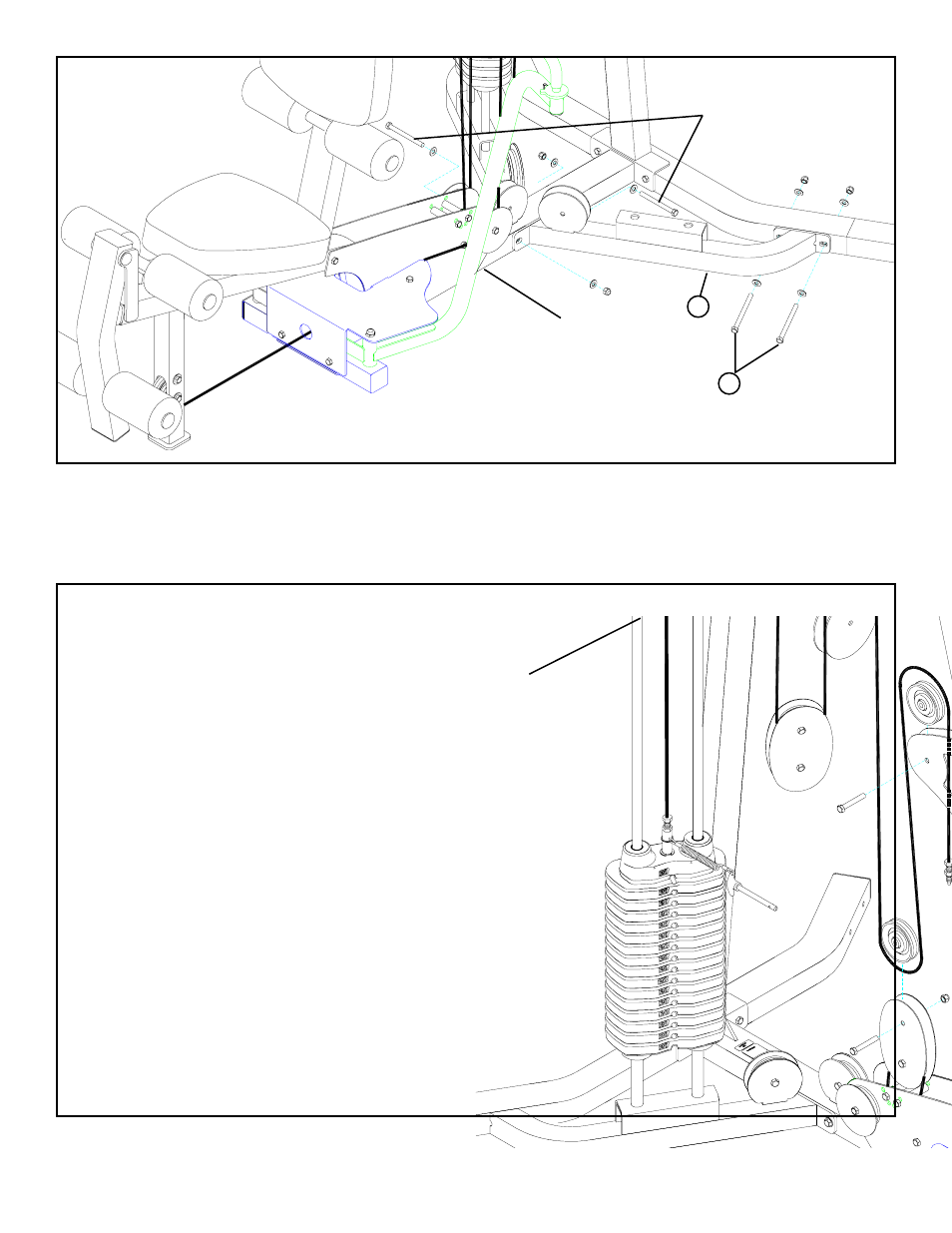

FIGURE 4

• SECURELY assemble the STACK BASE (1) to the BASE FRAME using two 3/8 X 4” BOLTS (15), two previously removed 3/8 X

4-1/4” BOLTS, eight previously removed 3/8” WASHERS and four previously removed 3/8” LOCK NUTS as shown in FIGURE 4.

3/8 X 4” 15

3/8 X 4-1/4” BOLTS

BASE FRAME

STEP 5:

FIGURE 5

• Remove the SHORT LEG PRESS CABLE from the PULLEY PLATES and the PULLEY BRACKET as shown in FIGURE 5.

SHORT LEG PRESS

CABLE
