Figure 12, Figure 13 – ParaBody 883 User Manual
Page 13
13
STEP 12:

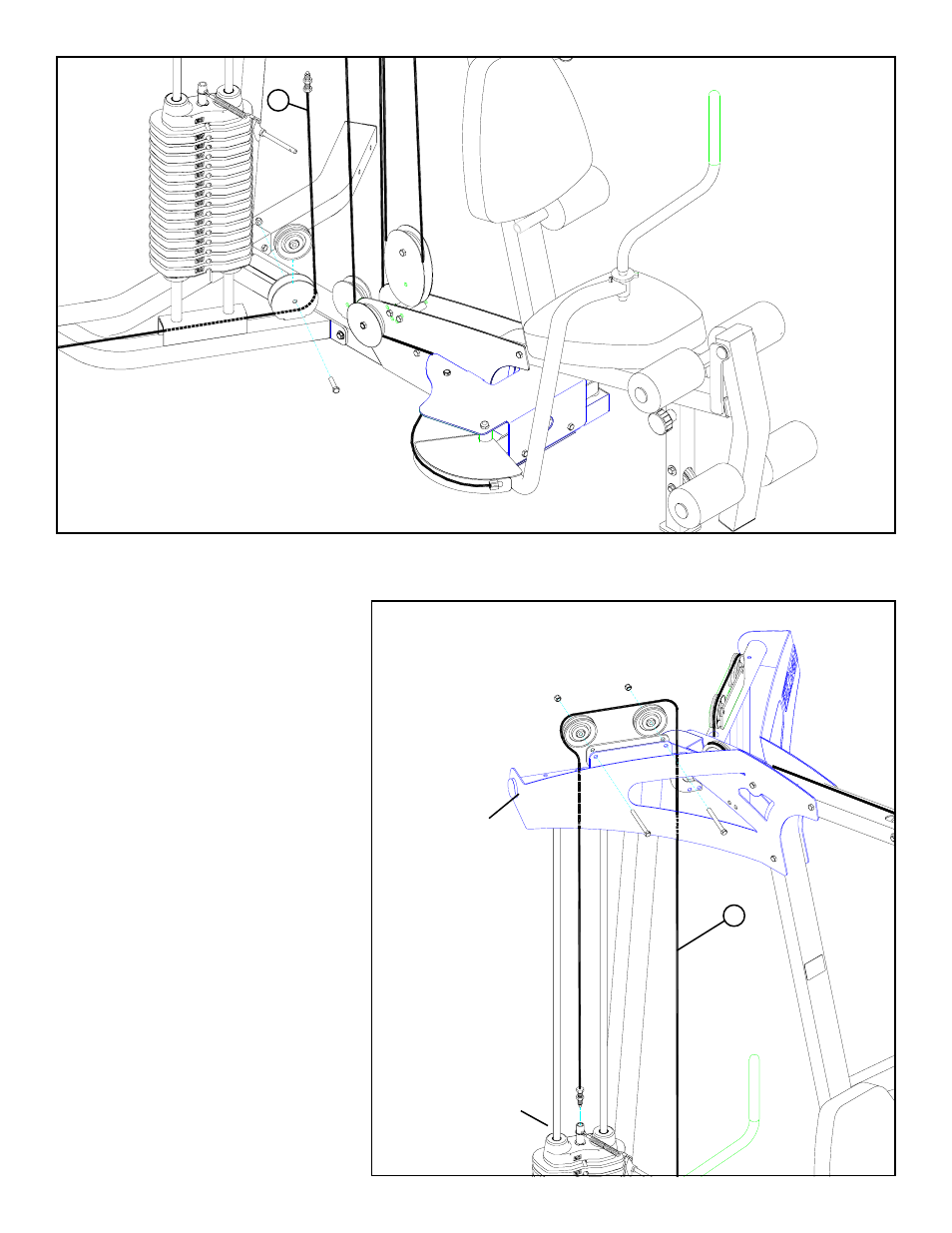

FIGURE 12
• Route the new PRESS STACK CABLE (7) thru the PEC STATION as shown. (NOTE: Remove pulleys for ease of installation.)
Slide GUIDE RODS up just enough to get the cable end thru. Push GUIDE RODS down when finished.
STEP 13:
FIGURE 13
• Screw the threaded end of the PRESS STACK
CABLE (7) into the end of the HEAD
PLATE. See FIGURE 13.
• Route the new PRESS STACK CABLE (7)
around the pulleys in the BOOM BRACKET
using the existing bolts as shown in
FIGURE 13. (NOTE: Make sure the cable
runs in the grooves of the pulleys.)
7
BOOM
BRACKET
HEAD
PLATE
7
