English

Hookups (cont’d)

9

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

L

R

L

R

L

R

S-VIDEO

OUT

COMPONENT

VIDEO OUT

Y

C

B

/

P

B

AUDIO OUT

DVD/VCR

VCR

VIDEO OUT

AUDIO IN

VIDEO IN

C

R

/

P

R

AUDIO IN

VIDEO IN

L

R

ANT. IN

AUDIO OUT

L

R

VIDEO

OUT

OUT

IN

Audio Cable
(not supplied)

RF coaxial cable
(not supplied)

RF coaxial cable
(not supplied)

External tuner

TV Signal

Audio Cable (supplied)

Video Cable

(not supplied)

Video Cable (supplied)

DVD/VCR

Back of TV

Connections

1

Connect a TV signal to the IN jack on the external
tuner.

2

Use an RF coaxial cable (not supplied) to connect
the OUT jack on the external tuner to the ANT. IN
jack on the TV.

3

Connect the red and white audio cable (supplied) to
the red and white AUDIO OUT jacks on the
external tuner and to the red and white VCR
AUDIO IN jacks on the DVD/VCR.

4

Connect the yellow video cable (supplied) to the
yellow VIDEO OUT jack on the external tuner and
to the VCR VIDEO IN jack on the DVD/VCR.

5

Connect another red and white audio cable (not
supplied) to the red and white DVD/VCR AUDIO
OUT jacks on the DVD/VCR and to the red and
white AUDIO IN jacks on the TV.

6

Connect another yellow video cable (not supplied)
to the DVD/VCR VIDEO OUT jack on the DVD/VCR
and to the VIDEO IN jack on the TV.

7

Connect the power cords of the TV and the DVD/VCR
to a power outlet. Turn on the TV and set it to the
correct Video In channel.

8

You are ready to turn on the DVD/VCR. Go to page 14
to complete the first-time setup.

You can record any unscrambled channel by selecting the channel
on the external tuner. Be sure that the external tuner is turned on.

Signal from the external tuner can be output only on CVBS output
even when the power of the DVD/VCR is off.

You cannot record one channel while watching another
channel.

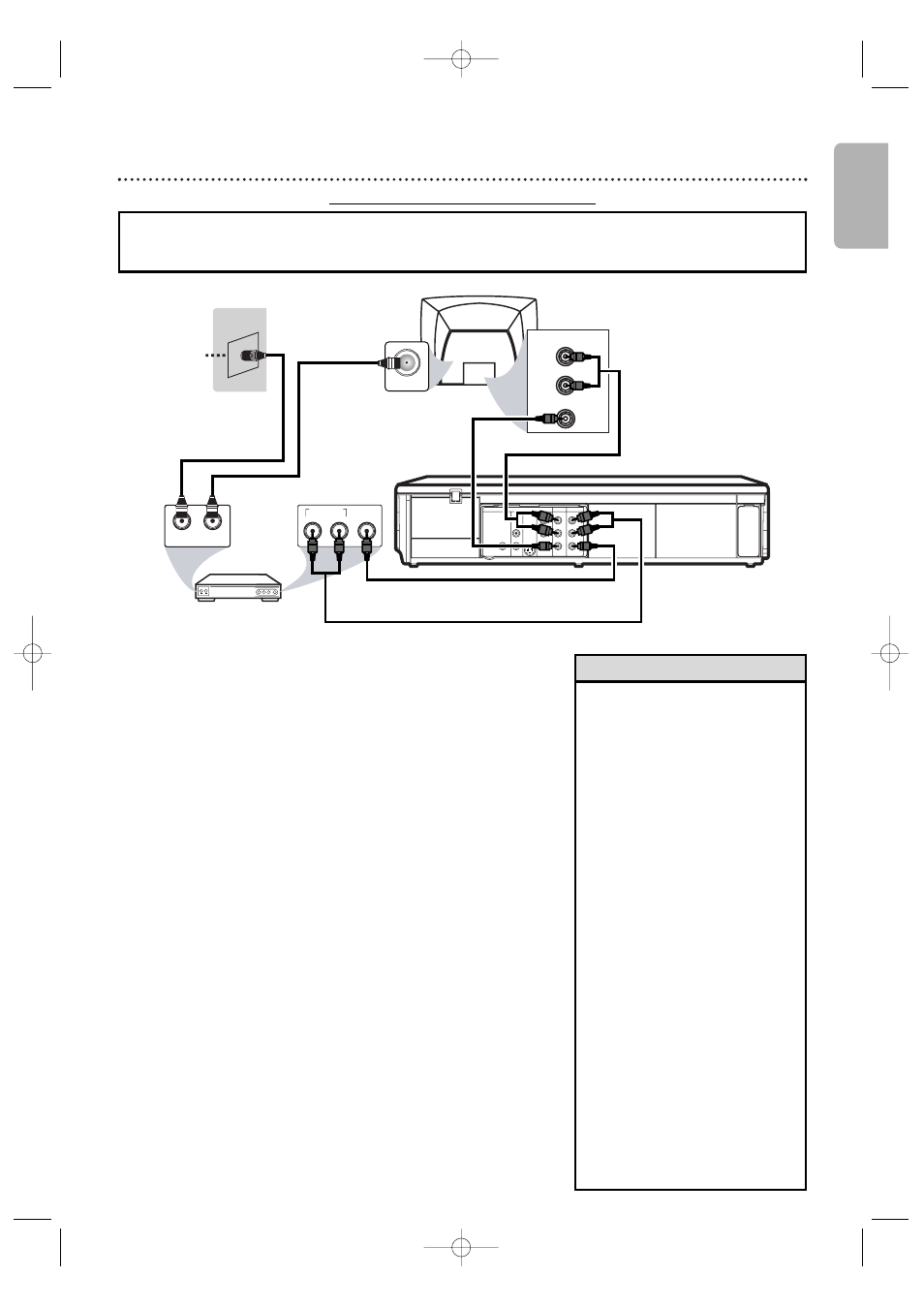

DVD/VCR to An External Tuner

• If your TV has antenna in jack

only, it is still possible to connect
this unit to your TV by using a
commercially available stereo
audio/video RF modulator. Refer
to the manual accompanying the
modulator for more information.

• Required cables and connecting

methods differ depending on the
external tuner.
For more information, please
contact your external tuner
provider.

Line through output

When an external device, such as
cable/satellite box, is connected
to L1(Rear) jacks of this
DVD/VCR, the signal from the
external device can be output
even when the power of the
DVD/VCR is off.

• Instead of using video out jack of

this DVD/VCR, you can also use
S-video out jack or component
video output jack for connecting
to your TV.

• Refer to the manual

accompanying external devices
for more information.

Helpful Hints

1

2

3

4

5

6

This DVD/VCR does not have a tuner input jack.To record TV programs on your DVD/VCR, you need to
connect this DVD/VCR to an external tuner device (e.g., set top box, cable box or satellite receiver) that
has audio/video output jacks.

e.g.)

E8E21UD_EN1.qxd 09.1.23 2:42 PM Page 9
