3
FUNCTIONAL DESCRIPTION
FOREWORD
Porter-Cable Model LR 1100 Rotary Level is a self-leveling, remote-controlled,
precision laser level of superior quality that is time-saving and easy to use.
Place it on any surface and the perfectly balanced, self-leveling pendulum inside
the device takes care of the rest.
ASSEMBLY

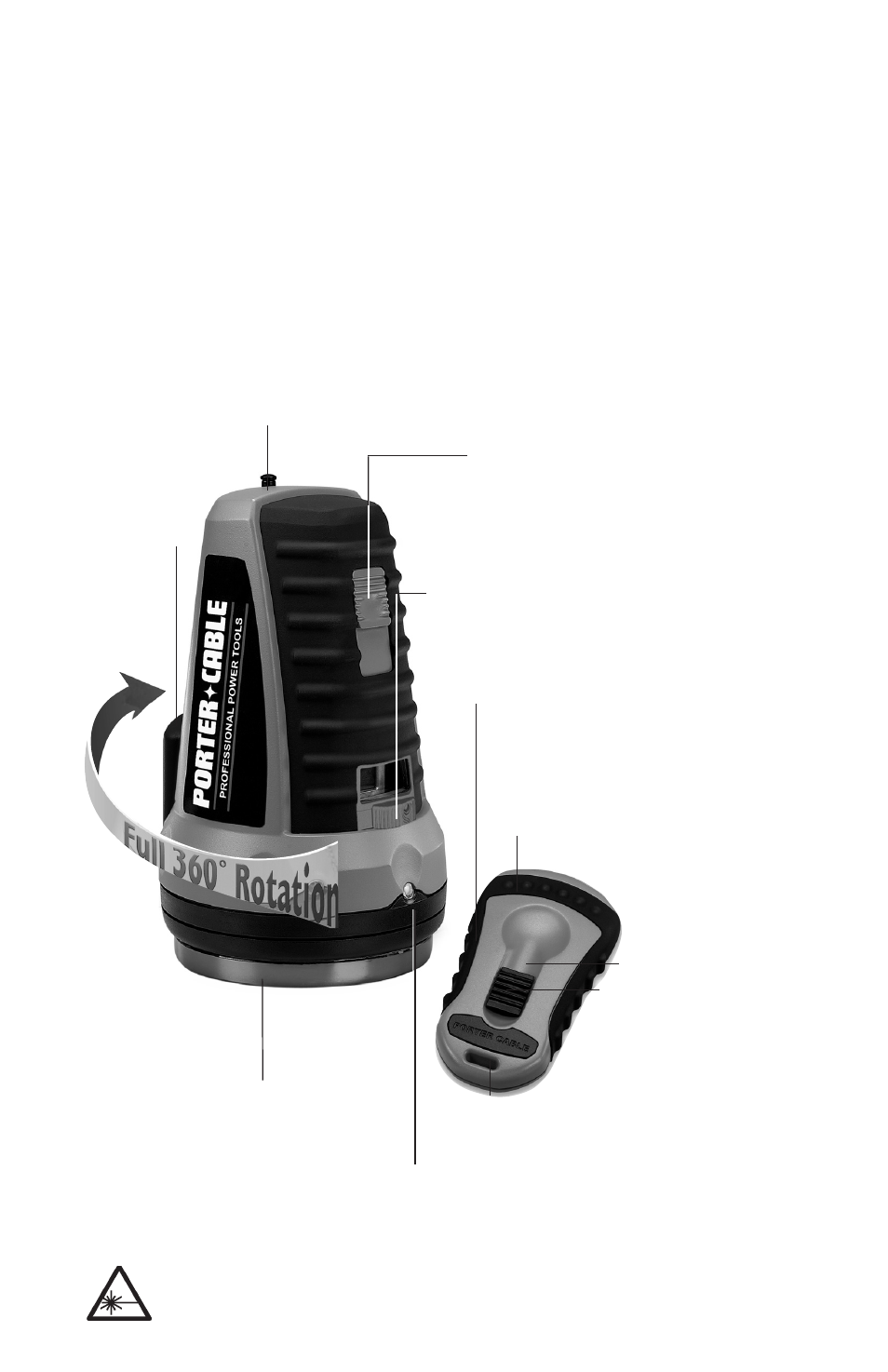

Rotary Level Features
Base Unit
Retractable Antenna extends to 16"
• Receives radio frequency commands from Remote Control
On/Off- for Base Unit
• Turns base unit electronics on/off
• Protects laser optics when closed
• Locks down leveling mechanism
when closed
Remote Control
Radio transmitter that rotates the base
unit to point the laser where you want it!
Speed/Direction Control
Buttons
• Rotate to the right or left
• Fast, medium & slow in
each direction
Laser Icon
Visible when laser
is on
Battery
(1) 9-Volt
On/Off Switch
Turns laser on/off
Lanyard Hole
Adjusting Base
Tilts to roughly level out base unit
5/8-11 & 1/4-20 mounts built-in
LED Light
• Indicates when laser is on/off
• Flashes when out of level
Battery Cover
Uses (4) "AA"
batteries
AVOID EXPOSURE: Laser radiation is emitted from this aperture.
Line Generation Feature - On/Off Switch
