Page 90

MAINTENANCE

Steering Assembly

The steering assembly of the ATV should be checked periodically for

loose nuts and bolts. If loose nuts and bolts are found, see your Polaris

dealer for service before operating the vehicle.

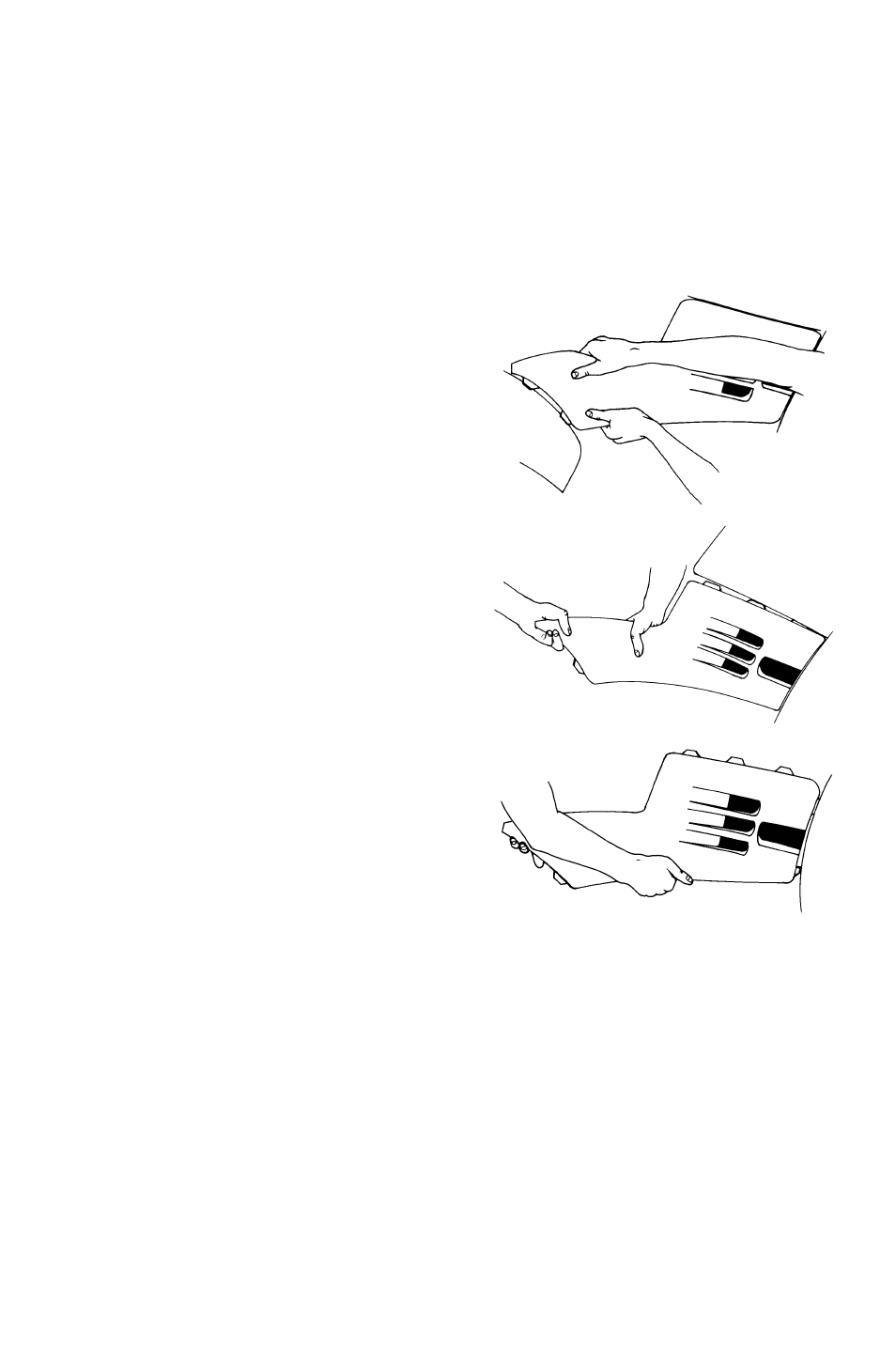

Side Panel Removal

1. Remove the seat.
2. Grasp the rear of the side

panel near the rear cab. With

a quick and firm motion, pull

the panel forward and out-

ward to disengage the two

rear tabs.

3. Place your hand on top of the

side panel behind the fuel

tank. With a quick and firm

motion, push down on the

side panel to disengage the

top rear two tabs. Then pull

up on side panel to disengage

front upper and lower tabs.

4. To reinstall the side panel,

align the panel tabs with the

slots on the front cab. Push

the panel upward and for-

ward until the tabs lock.

Bend the rear of the side

panel and insert the two tabs

into the rear cab.

Step 4

Step 2

Step 3
