5.2 Board Interfaces

The Bluetooth QuickStart Kit board has a number of external interfaces as illustrated in
Figure 17 below.

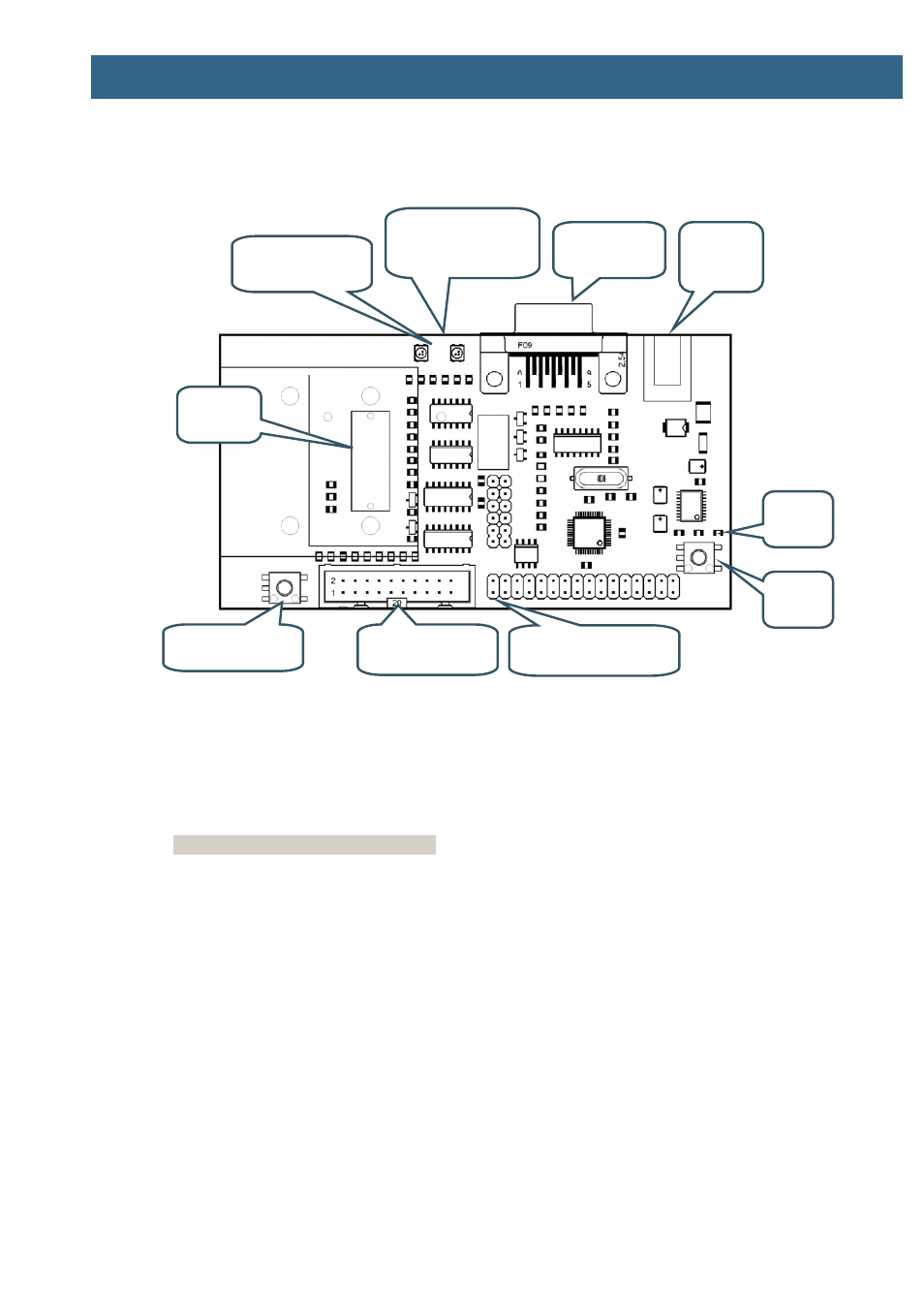

Figure 17 – Bluetooth QuickStart Board Interface Description

Table 1 below explains each board interface in more detail.

Female 9-pos DSUB

A standard RS232 channel with
ESD/EMI protection. Normally
connected to a PC or an embedded
system.

Connector is used for:

1. Program download

2. Terminal printouts for

application program
development debugging

3. Connection with ANY embedded

system, in order to transfer data
between the system and the
Bluetooth QuickStart Board.

Pin 2 = transmit data (output)

Pin 3 = receive data (input)

Pin 4 = DTR (input) for controlling automatic

program download

Pin 5 = ground

Pin 7 = RTS (input) for controlling automatic

program download

Pin 8 = CTS (output)

Bluetooth factory

reset switch

JTAG connector

for LPC2106

Expansion connector

(pin #1)

Reset

button

Reset

LED

Bluetooth

module

Status indicating

RGB LEDs

Female

9-pos DSUB

Power

jack

2.1 mm

MMC/SD memory

card connector

(bottom side)
