Bluetooth QuickStart Kit Version 1.0 - User’s Guide Page 19
Copyright 2004-2005 © Embedded Artists AB

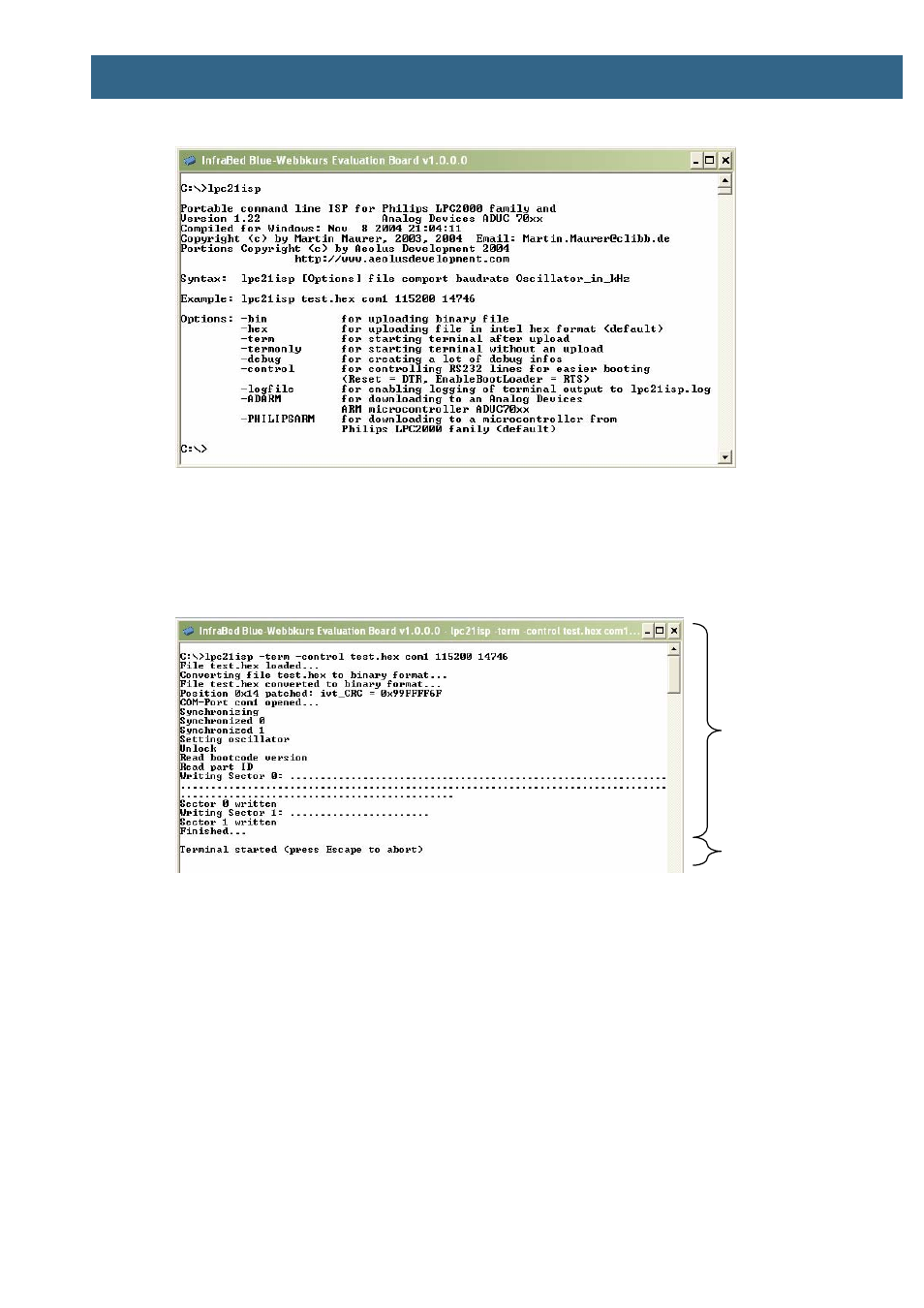

Figure 13 – LPC21ISP Portable Command Line ISP Screenshot
A typical program download sequence may look like in Figure 14 below. As seen, the first
part is the actual program download phase. Then this is done, the program switches to being
a terminal (the second part) and the messages from the application program are displayed. It
also sends anything typed on the keyboard back to the Bluetooth QuickStart Board. As seen
the program ends when ESC is pressed.
Figure 14 – LPC21ISP Portable Command Line ISP Download Screenshot
Observe that the binary version 1.22 of the program will not work directly without a change
in the reset timeout (when the program tries to synchronize to the Bluetooth QuickStart
Board). The timeout must be increased to at least 200 ms.
LPC21ISP is automatically invoked when deploy is typed in the command prompt (the
bash script from InfraBed).
Program
Download
Phase
Terminal
Phase
