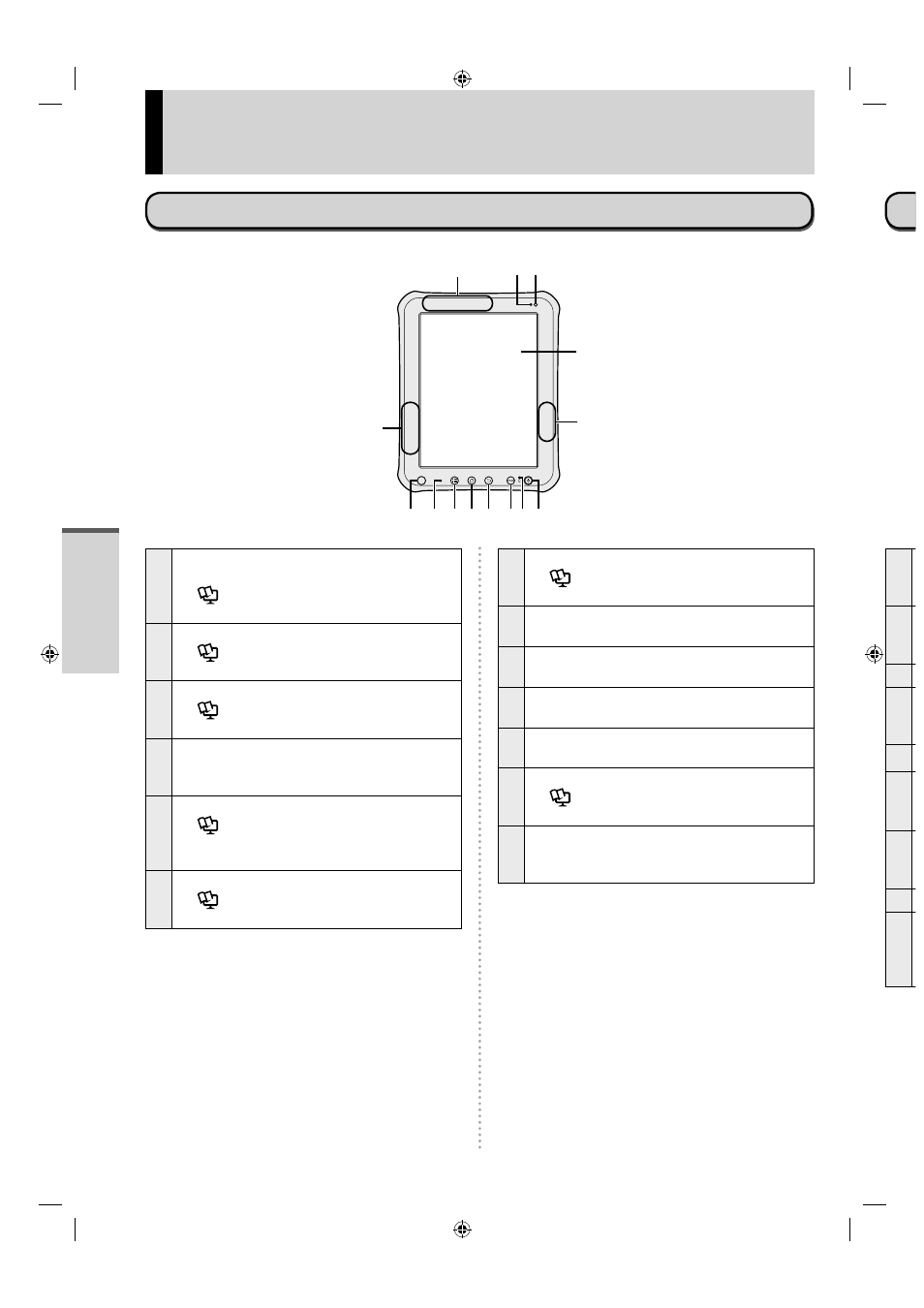

Description of Parts
Front Side
C B
G
D
H F I J KL M
E
A
A
A
Wireless WAN Antenna

Reference Manual “Wireless
Communication - Wireless WAN”
B
Ambient light sensor

Reference Manual “Settings - Using
Dashboard”
C
Front camera

Reference Manual “Photos and
Videos”
D
LCD

“Input Operation” (page 18), “Home
Screen” (page 19)
E
Wi-Fi antenna / Bluetooth antenna

Reference Manual “Wireless
Communication - Wi-Fi”, “Wireless
Communication - Bluetooth”
F
Magnet sensor

Reference Manual “Settings - Using
Settings Application - Display”
G
Microphone

Reference Manual “Input Operation -
Voice Input”
H
Menu button

“Input Operation” (page 18)
I
Home button

“Input Operation” (page 18)
J
Back button

“Input Operation” (page 18)
K
USER button

“Input Operation” (page 18)
L
Battery indicator

Reference Manual “Battery Power -
Checking the Battery Status”
M
Power switch

“Turning On/Off and Sleeping/Waking
Up” (page 17)
