Patton electronic 1018RC User Manual
Page 12

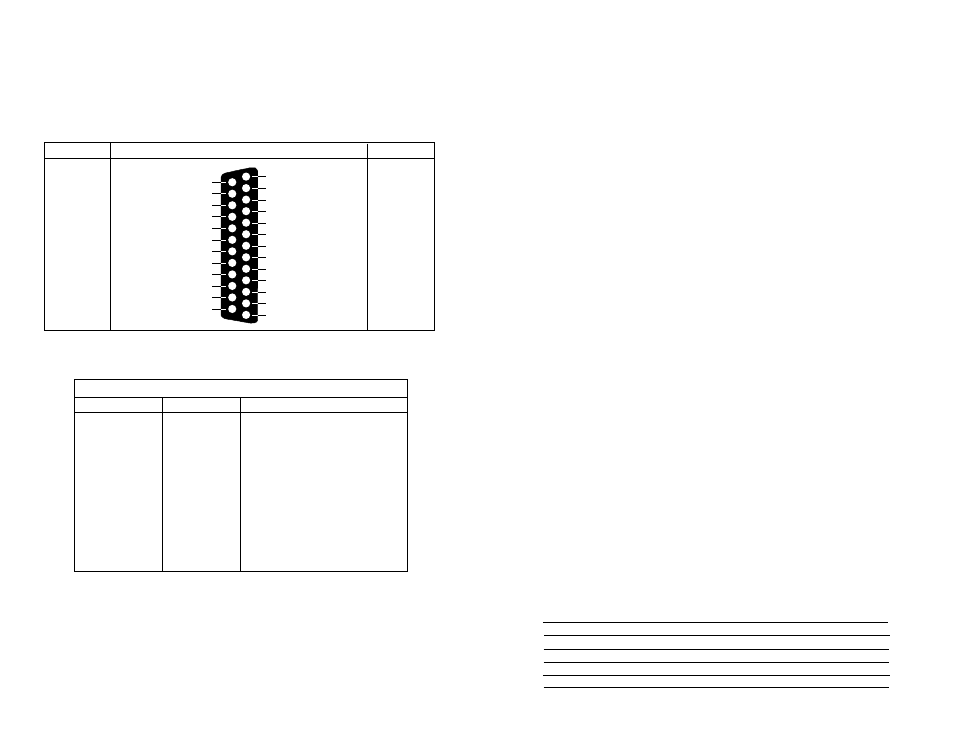

APPENDIX D
PATTON MODEL 1018RC
INTERFACE STANDARDS
Copyright ©
Patton Electronics Company
All Rights Reserve
21
1- (FG) Frame Ground
2- (TD) Transmit Data
To 1018RC
3- (RD) Receive Data
From 1018RC
4- (RTS) Request to Send
To 1018RC
5- (CTS) Clear to Send
From 1018RC
6- (DSR) Data Set Ready
From 1018RC
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From 1018RC
To 1018RC
Analog Loop - 18
To 1018RC
Data Term. Ready (DTR) - 20
To 1018RC
Digital Loop - 21
From 1018RC
Test Mode - 25
DIRECTION
STANDARD RS-232C/V.24 “DCE” SETTING
DIRECTION
Dear Valued Customer,
Thank you for purchasing Patton Electronics products! We do
appreciate your business. I trust that you find this user manual helpful.
We manufacture one of the widest selections of data
communications products in the world including CSU/DSU's, network
termination units, powered and self-powered short range modems, fiber optic
modems, interface converters, baluns, electronic data switches, data-line surge
protectors, multiplexers, transceivers, hubs, print servers and much more. We
produce these products at our Gaithersburg, MD, USA, facility, and can
custom manufacture products for your unique needs.
We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.
Web:
http://www.patton.com
Sales E-mail:
Support E-mail: [email protected]
Phone - Sales
(301) 975-1000
Phone - Support
(301) 975-1007
Fax:
(301) 869-9293
Mail:
Patton Electronics Company
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
We are committed to a quality product at a quality price. Patton
Electronics is BABT and ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).
It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.
Thank you.
Burton A.Patton
Vice President
P.S. Please tell us where you purchased this product:
PATTON MODULAR INTERFACE - 10 Wire RJ-45
Contact Number
Circuit
Description
1
N/A
Not Used
2
125
DSR
3
109
Received Line Signal Indicator (CD)
4
108 / 2
DTE Ready (DTR)
5
102
Signal Common
6
104
Received Data
7
103
Transmitted Data
8
106
Clear to Send
9
105 / 133
Request to Send / Ready for Receiving
10
N/A
Not Used
Pins 2-9 conform to the EIA/TIA-561 eight position non-synchronous interface standard.
