Connection diagram – PYLE Audio PCM60A User Manual
Page 7
Pyle Home PCM60A Manual - 6

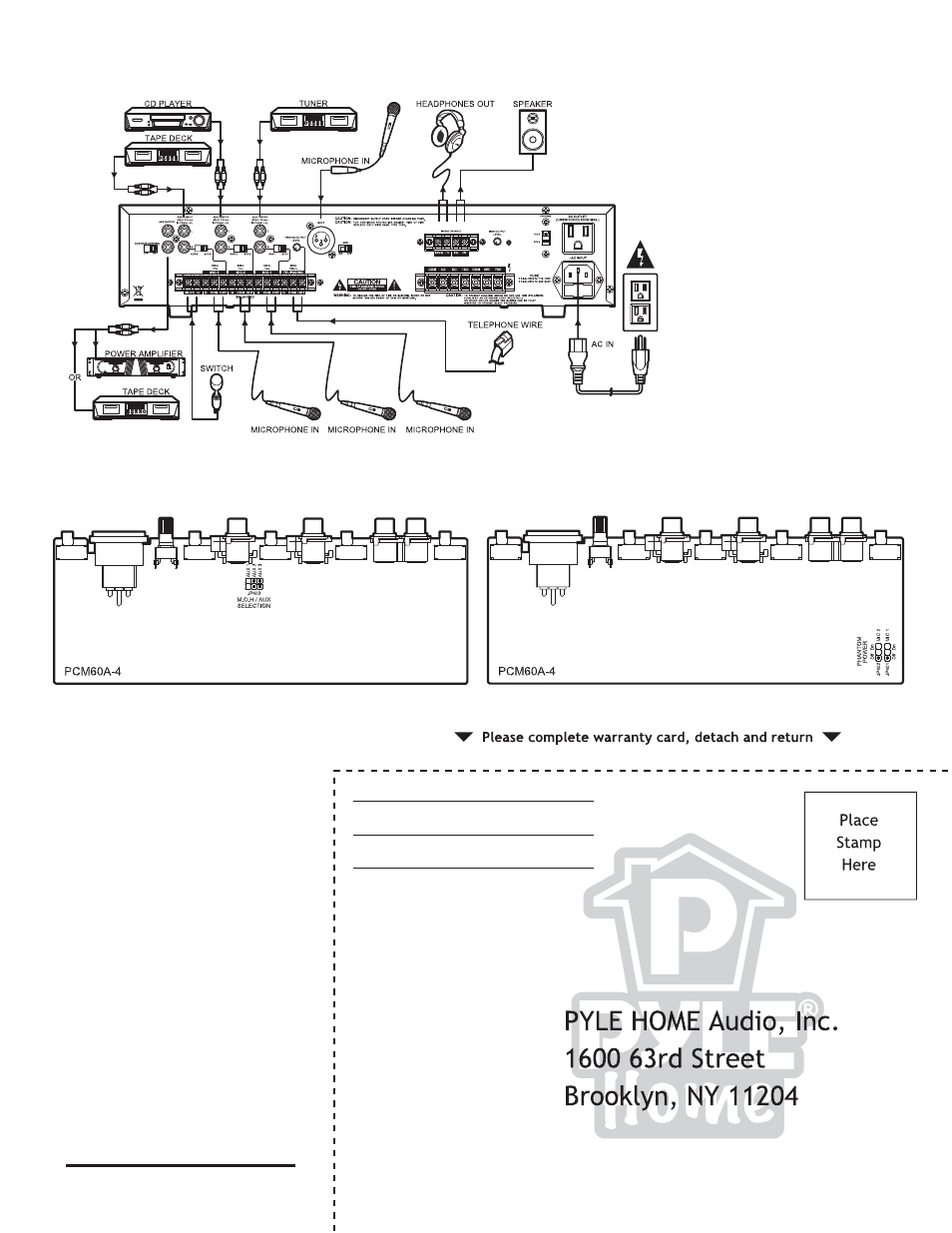

CONNECTION DIAGRAM
NOTE : Unit comes with jumper set on AUX 1
NOTE : The unit provides a Phantom Power DC 15V for
electric condenser microphone, unit comes with
jumper set to Phantom Power enable ON.
WARNING:
These adjustments are to be
performed safely by the qualified
service technician in proper
operating condition, the AC
power source must be
disconnected before removing
the unit's cover, otherwise may
result in electric shock, or other
hazards.
