Connections
(continued)
13
AUDIO
VGA
VGA IN
Y
Pr/Cr AUDIO-R
Pb/Cb AUDIO-L COMPONENT IN

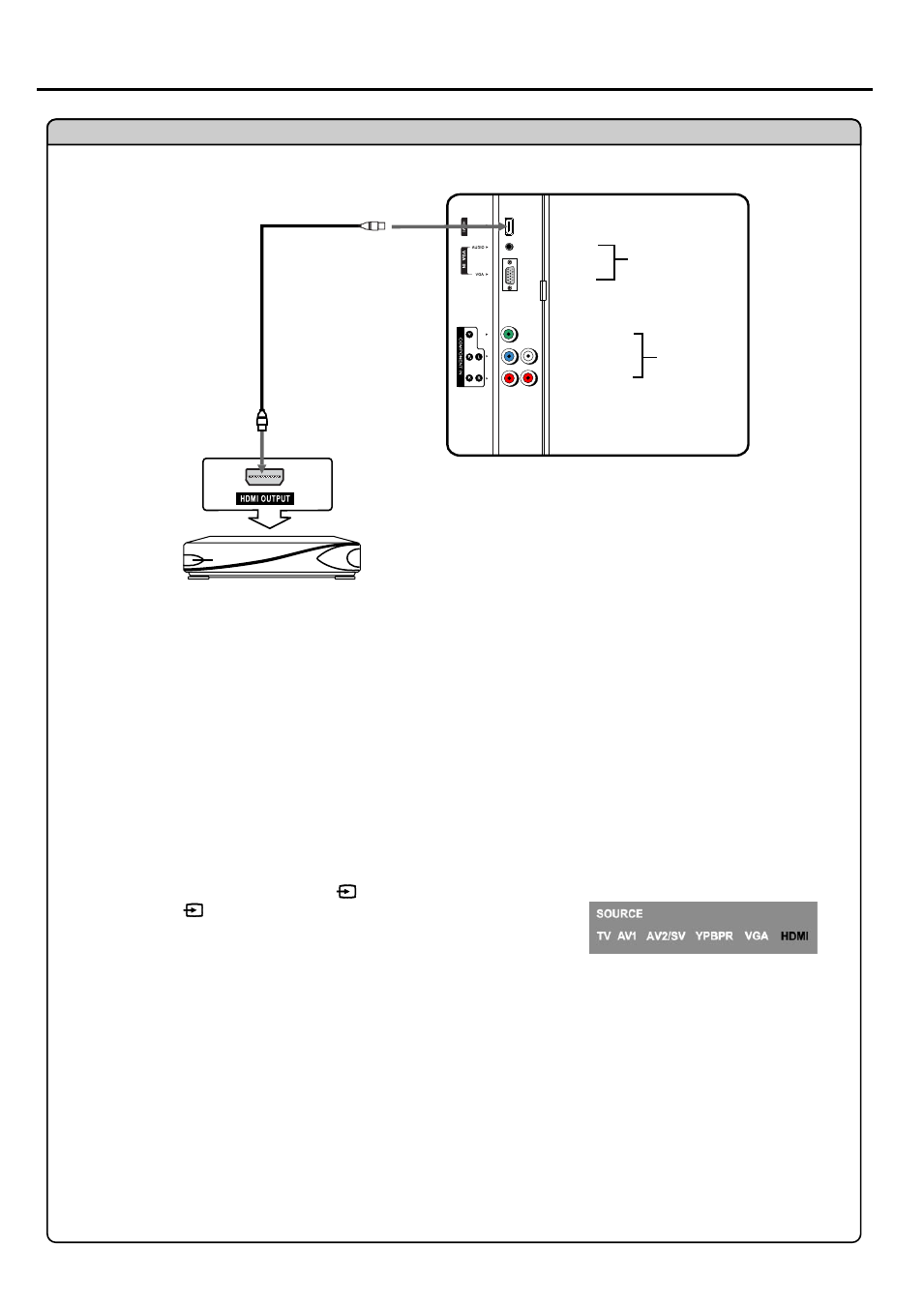

Connect a product to HDMI
Product with HDMI jack
HDMI cable
How to connect:
Connect the HDMI cable between the HDMI input jacks on the unit and HDMI output jacks on the product.
Note:
The HDMI Sources are compatible with DVI displays through the use of a passive cable converter. So you
may connect product with DVI output jack to the unit.
Connect a passive cable converter between the HDMI input jack on the unit and DVI output jack on the product.
Connect an Audio cable between the AUDIO output on your product and AUDIO input jack of VGA IN on the unit.
To Watch your Product
1. Turn on your LCD TV, press Source button on the remote control.
2. Press Source button repeatedly to select HDMI.
3. Turn on your Product.
HDMI
