Identification of Controls
(continued)
8

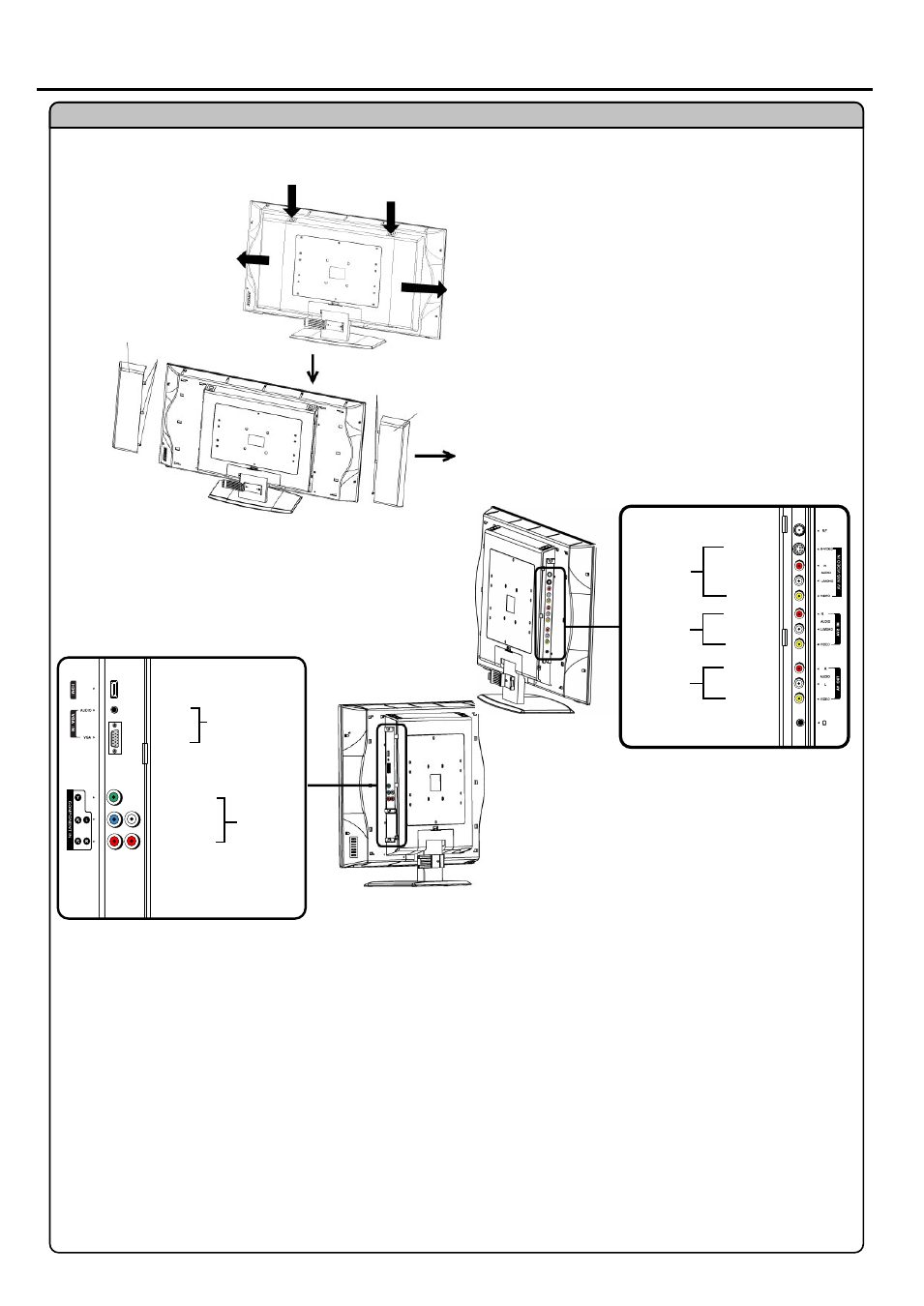

Removing or installing the Back Cover
Press the PUSH button
Pull out the Cover carefully
Cover
Insertion
Pull out the Cover carefully
1. Antenna Input
Allows you to connect cable or outdoor antenna
2. AV2 Inputs (Video, Audio L/Mono, R) / S-Video input
Receive video/audio signals from external sources such as VCR or DVD player.
Receive a S-Video signal from external source such as VCR or DVD player.
3. AV1 Inputs (Video, Audio L/Mono, R)
Receive a S-Video signal from external source such as VCR or DVD player.
4. AV Outputs (Video, Audio L/Mono, R)
5. Headphone jack
6. HDMI input jack
7. VGA input / Audio in
Connect to the VGA/audio output jacks on your equipment.
8. COMPONENT Inputs (Y, Pb/Cb, Pr/Cr, Audio L, R)
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
After all the connections are made, aim the insertion
tabs towards the locating grooves, then carefully push
the cover until it locks in place with a click
Cover
Insertion
Remove the Cover
AUDIO
VGA
VGA IN
Y
Pr/Cr AUDIO-R
Pb/Cb AUDIO-L COMPONENT IN
HDMI
ANTENNA INPUT
HEADPHONE JACK
S-VIDEO
AUDIO R
AUDIO L/MONO
VIDEO
AV1 INPUT/
S-VIDEO IN
AV2 INPUTS
AV OUT
AUDIO R
AUDIO L/MONO
VIDEO
AUDIO R
AUDIO L/MONO
VIDEO
Main Unit
