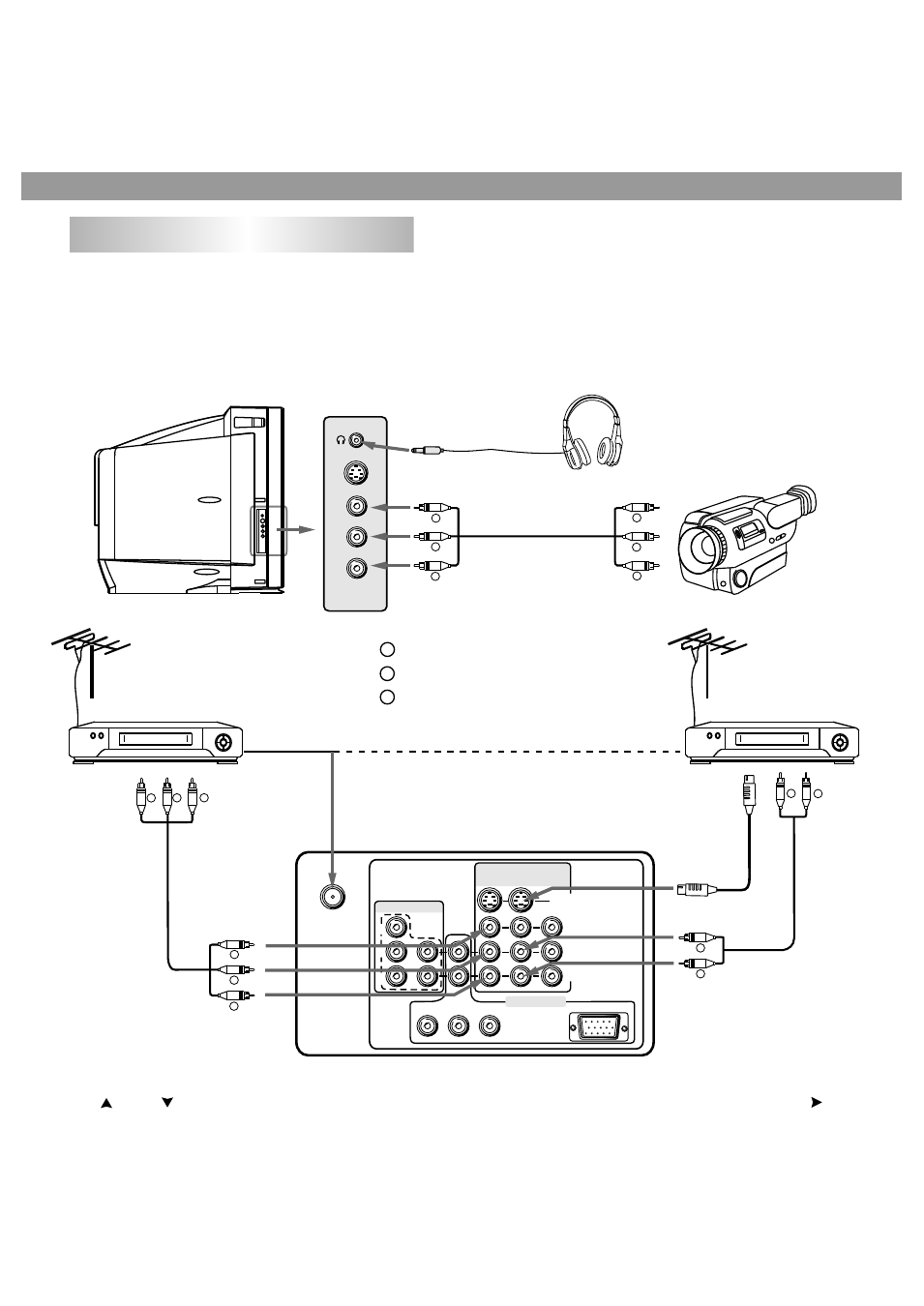

External Equipment Connections (Please the owner's the refer to manual of
to equipment be connected as well.)
1. To connect AV input terminals
You can connect video equipments such as a VTR and video camera to this TV and enjoy the high
quality picture and sound.
If your video equipment has a S-VIDEO output terminal, connect it to the S-VIDEO input terminal
(special S-VIDEO type) of the unit. If not, connect it to the VIDEO terminal (phono type).
To select the input, press AV/TV button to display the signal source selection menu and press the
CH or CH button to select the corresponding input mode (AV1 or AV2 or AV3) and press VOL
button to confirm.
Note on the S-VIDEO terminal
The S-VIDEO input terminal has priority over the AV1, AV2 VIDEO terminals on the rear and the AV3
VIDEO terminal on the side. To use equipment connected to the video terminals, disconnect any plug
from the S-VIDEO terminal.
