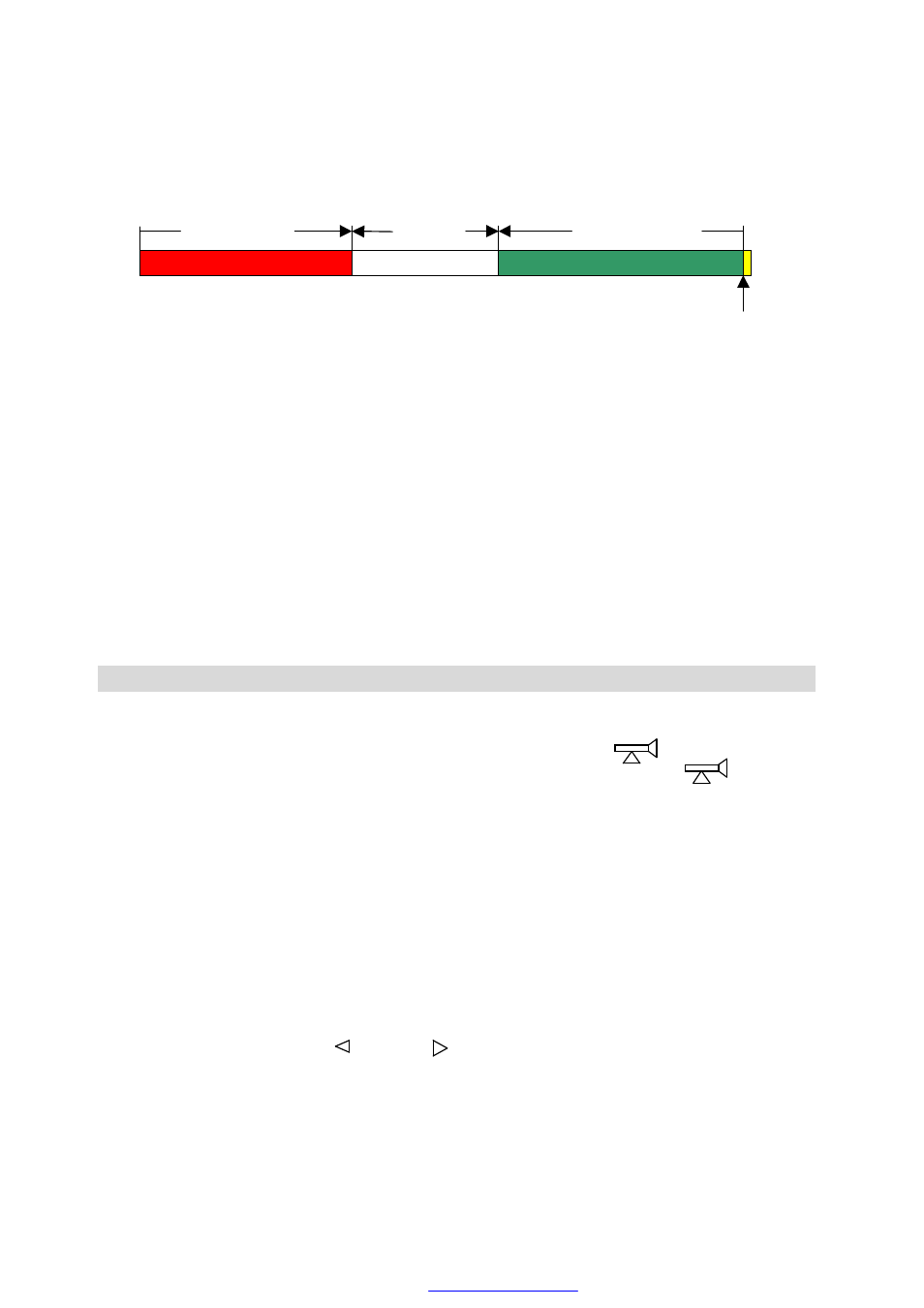

DISPLAY OF HDD USAGE
when the basic function of running and time has shown on screen,press
“display”will
appear a color signal to show the usage of HDD.
13.62 9.34 15.95 G（1000M）
The color means the percent of the usage HDD; you should see according to the
direction which arrow direct. The yellow means the way of overwrite. If no yellow
appear ,means the
“auto overwrite” set as “no”. (The related system setting chapter for
details sees).the numbers below means the capacity.
If HDD is full, the display is different. The red area will extend to right, and start
overwriting the green area, when you set as
“auto ”;the white area will be overwrite by
red and green at the same time, when set
“all”.
Switch on Display
Original image will show about 5 second. From switch on, HDD reset to the end of
original image need about 15S.then start running normally.
Especially, it can renew after power off. It can keep the condition before. Because it not
belongs to restart, do not show the original image. Please wait patiently.
Function of P.T. Z
1、Regardless recorder to be any state:
Press
“P.T.Z”(the recorder to be PTZ),VFD display (open) ,
Press
”P.T.Z”again,it cancel the PTZ controling, resume formerly estate.VFD
display(close)
2、Recorder to be PTZ:
First,enter the assistant setting in menu system,set relevant protocol about the
decode,baudrate, primary address of decode,step rauge and other parameter.
Clavier function:
A、 can control eight decodes,adddress is 1,2,3,4,5,6,7, press this numeric to choice.
B
、
”Schedule”,”Search”,”Quality”,”Displayl”,”Release”,”Alert”,”munu”
separate
parallelism
IRIS+ IRIS- ZOOM+ ZOOM- FOCUS+ FOCUS- AUTO ON AUTO OFF
△(up) ▽(down) (left) (right) corresponding PTZ
Normal record used
Empty
Alert record used
Overwrite
