HPCF8 HPCF8 High-Power In-Ceiling Speaker
Technical Information for System Engineers

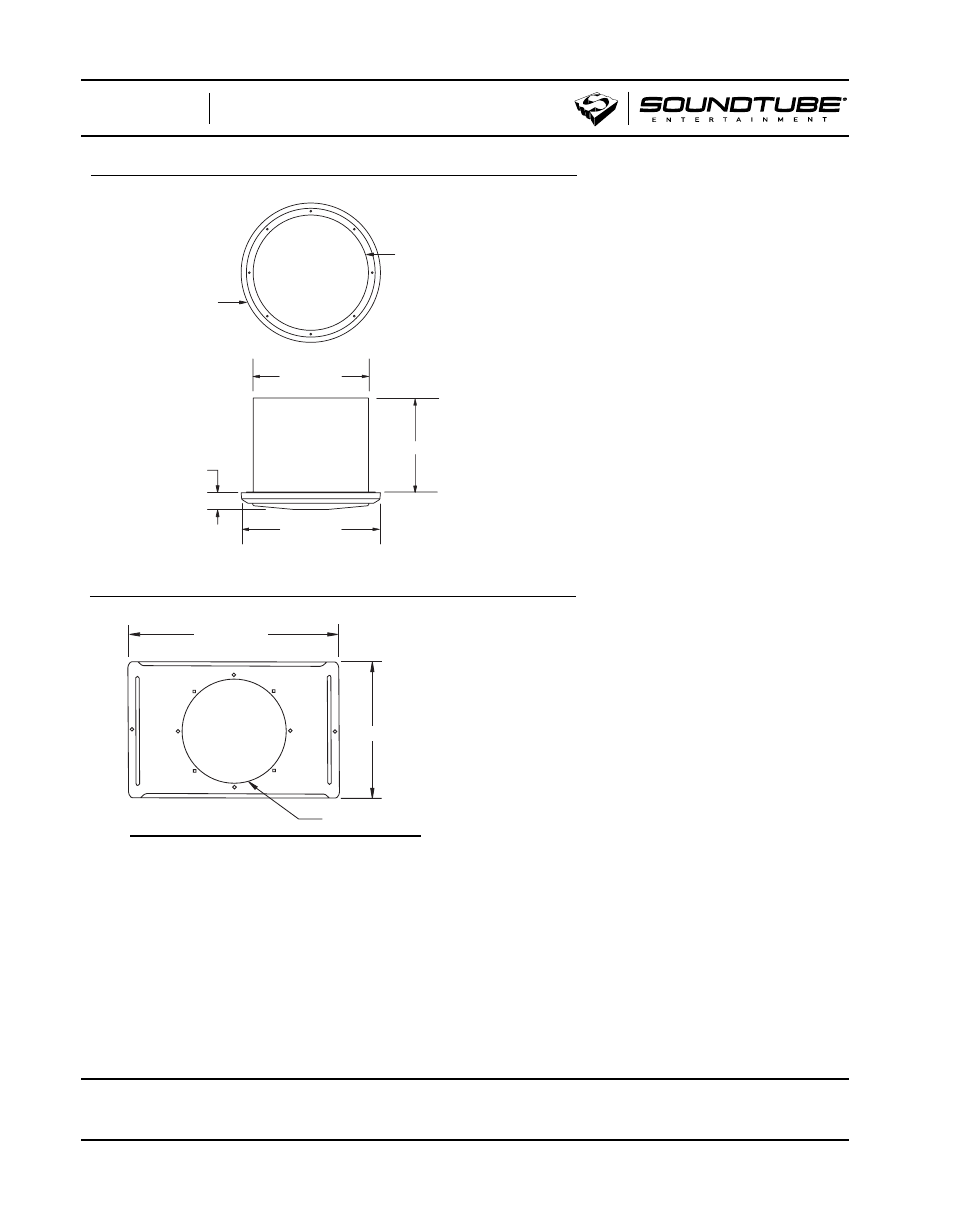

Mechanical Drawings Mechanical Drawings rectangular tile bridge [603 mm (23.75 in)
x 413 mm (16.25 in)] which is constructed
of 23-gauge steel that drops into standard
drop-tile ceiling systems.
Overall front face diameter shall not exceed
368 mm (14.5 in); overall depth from the
bottom of the ceiling shall not exceed
44 mm (1.75 in) and shall weight no more
than 9.53 kG (21.0 lbs).
The low-frequency transducer shall have
a treated fiber cone and treated fabric sur-
round that is formulated to resist weather
elements and insects. The high-frequency
transducer shall be constructed of one
25 mm (1.0 in) compression driver with a
50 mm (2.0 in) titanium diaphragm.
The systems shall be the SoundTube
HPCF8-8 for low impedance and HPCF8-
T64 for high impedance.
SoundTube Entertainment SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone
435.647.9555
Fax 435.647.9666
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come All SoundTube products come
with a 5-year limited warranty with a 5-year limited warranty .
254 mm/10.0 in
305 mm/12.0 in Dia.
305 mm/12.0 in
368 mm/14.5 in Dia.
44 mm/1.75 in
368 mm/14.5 in
603 mm/23.75 in
413 mm/16.25 in
305 mm/12.0 in Dia.
Included Accessories Included Accessories
Tile Bridge
