5 Technical Information
HP Pavilion Multimedia Displays
38
1024 x 768 60 Hz
CAUTION Setting the screen resolution/refresh
rate combination higher than 1024 x
768 at 60 Hz can damage the display.

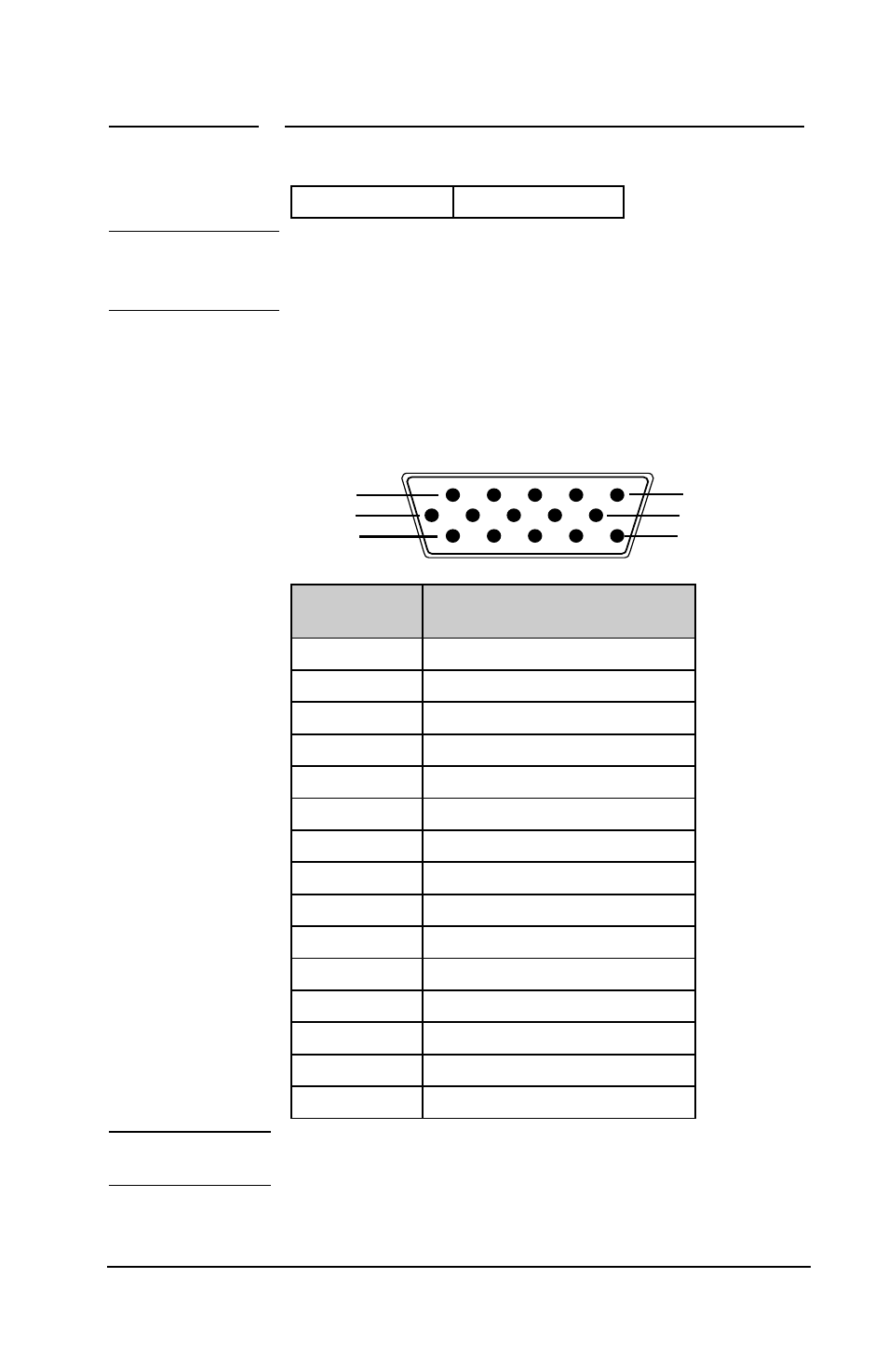

M40 Pin Assignments
The following figure illustrates the
15-pin D-sub male video connector used
by the M40 monitor. The table shows
the pin assignments.
Pin 1
Pin 6
Pin 11 Pin 5
Pin 10
Pin 15
Pin
Number
Assignment
1 Red video input
2 Green video input
3 Blue video input
4 Ground
5 DDC return
6 Red video return
7 Green video return
8 Blue video return
9 No connect
10 Sync return
11 Ground
12 DDC data (SDA)
13 Horizontal sync
14 Vertical sync
15 DDC data clock (SCL)
NOTE Because of a policy of continuous
product improvement, pin assignments
