Patton electronic SmartNode 2290 Series User Manual
Page 2
* Specifications subject to change without notice.
2292/ EUI: 2 VoIP leased line channels, External Universal Input Power Supply
2294/ EUI : 4 VoIP leased line channels, External Universal Input Power Supply
O r d er in g I n fo r m a tio n

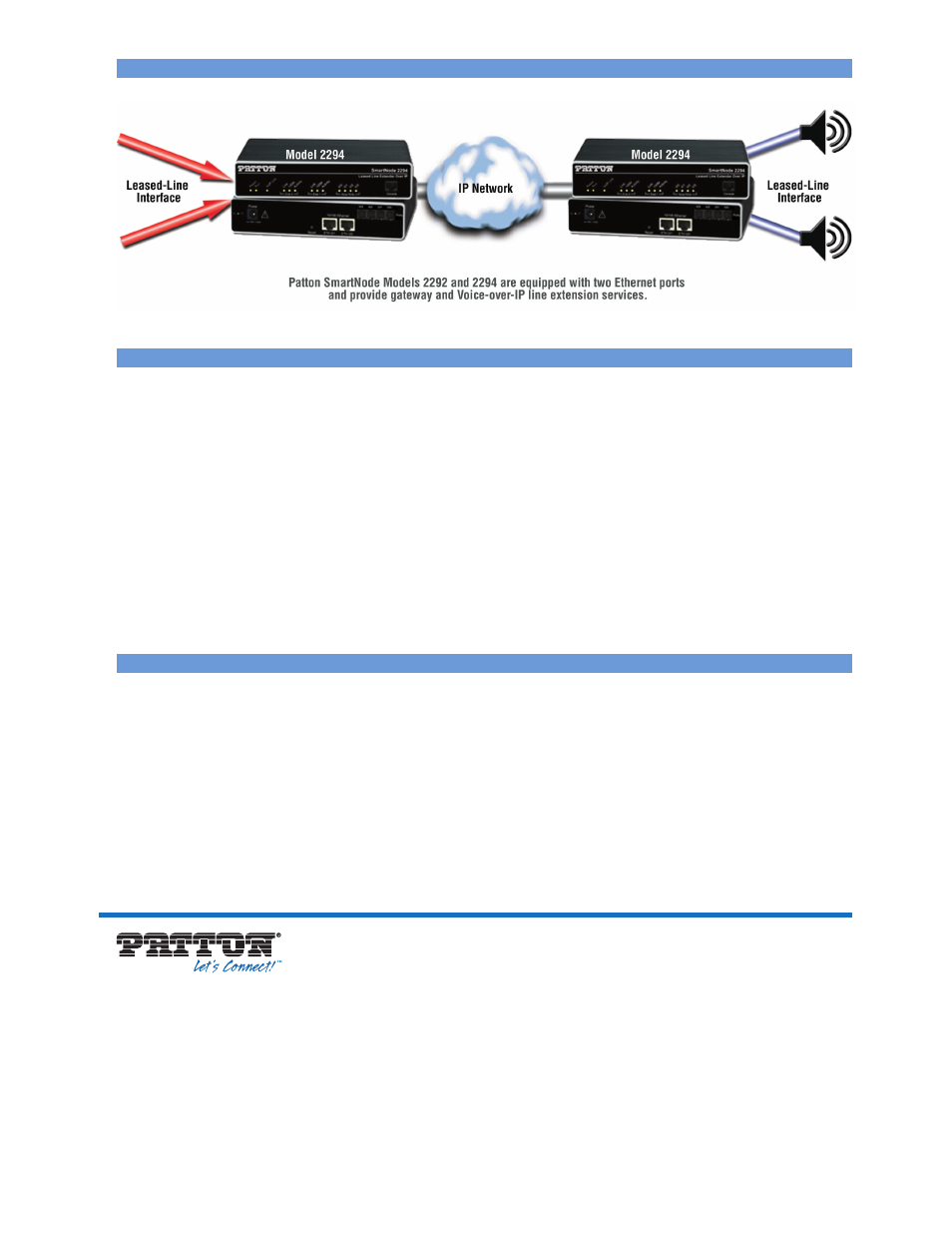

T y p ica l a p p lica tio n
S p ecifica tio n s
Capacity
2 VoIP lines (2292) • 4 VoIP lines
(2294)
Audio connectivity
2-wire RJ-11 • Bandwidth 4kHz •
Impedance 600-ohm • Narrow Band FXS
style hybrid transmit/receive
Data Services
Two 10/100 Ethernet ports • Complete IP
access router • DHCP Client & server •
Packet fragmentation •
Static firewall, NAT, NAPT RFC 1631
access control lists • DMZ port • IPsec,
IKE, AES/DES/3DES Encryption
Quality of Service
Audio priority • DownStreamQoS™ •
Traffic management, shaping and polic-
ing • IEEE 802.1p, TOS,
DiffServ labeling • IEEE 802.1Q, VLAN
tag insertion/deletion (simultaneous sup-
port of multiple VLANs)
Voice Signaling
SIPv2 (B2BUA capable, multi-instance,
simultaneous support of multiple regis-
trars and direct IP dialing) • SIP call
transfer, redirect • DTMF in-band & out-
of-band
Voice Processing
CODEC G.711 a-law/mu-law, G.723,
G.729ab, • G.726, G.727.
Management
Web/HTTP, CLI with local console and
remote Telnet access • TFTP configura-
tion & firmware loading • SNMP MIB II
and product MIB • Secure Mass provi-
sioning for both firmware and unit con-
figuration • Built-in diagnostic tools
(trace, debug, call generator)
System
CPU Motorola MPC875 @66MHz •
Memory 32MB SDRAM/8MB Flash •
Power 100–240 VAC (50/60Hz) • Power
dissipation 4- 8W, model dependent
Temperature
32–104°F (0–40°C)
Humidity
up to 90%, non-condensing
Compliance
CE Compliance
Patton is a registered trademark and the
termsSmartNode, DownStreamQoS,and
SessionRouter are trademarks of Patton
Electronics Company in the United States and
other countries.
07MSN2292- DS3
