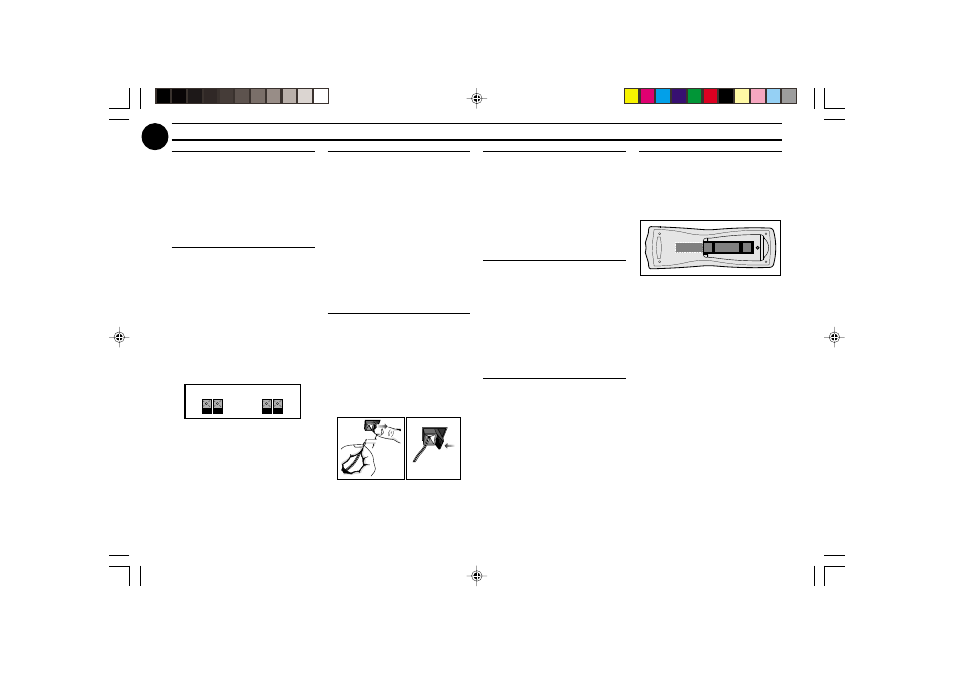

3139 116 19811 (ENG)
9
A AM Loop Antenna
Connection
Connect the supplied loop antenna to
the AM ANTENNA terminal. Place the
AM loop antenna far away from the
system and adjust its position for the
best reception.
B FM Wire Antenna
Connection
Connect the supplied FM wire antenna
to the FM AERIAL (FM ANTENNA)
300
Ω terminal. Adjust the position of
the FM antenna for the best reception.
Outdoor Antenna
For better FM stereo reception,
connect an outdoor FM antenna to the
FM AERIAL (FM ANTENNA) 300
Ω
terminal using a 300 Ω dipole wire.
FM ANTENNA 300 Ω FM AERIAL 300 Ω
OR
C Digital Out Connection
You can record the digital sound from
the CD, through this output, on any
audio equipment with digital input (e.g.
CD Recorder, Digital Audio Tape (DAT)
deck, Digital to Analog Converter and
Digital Signal Processor).
Connect one end of the cinch cable
(not supplied) to the DIGITAL OUT
socket and the other end to the audio
equipment with digital input.When
connecting the cinch cable, make sure it
is fully inserted.
D Speakers Connection
• Connect the right speaker to Front
terminal R, with the colored wire to
+ and the black wire to -.
• Connect the left speaker to Front
terminal L, with the colored wire to
+ and the black wire to -.
• Clip the stripped portion of the
speaker wire as shown.
unlock lock
12 mm
PREPARATION
E Connecting other
equipment to your
system
You can connect the audio left and right
OUT terminals of a TV, VCR, Laser Disc
player, DVD player or CD Recorder to
the AUX IN terminals at the rear of the
system.
F Subwoofer Out
Connection
Connect the optional active subwoofer
to the SUBWOOFER OUT terminal.
The subwoofer reproduces just the low
bass sound effect (e.g. explosions, the
rumble of spaceships, etc.). Be sure to
follow the instructions supplied with the
subwoofer.
G AC Power Supply
After all other connections have been
made, connect the AC power cord to
the system and to the wall outlet.
Inserting batteries into the
Remote Control
• Insert the batteries (Type R06 or
AA) into the remote control as
shown in the battery compartment.
+ - + -
• To avoid damage from possible
battery leakage, remove dead
batteries or batteries that will not be
used for a long time. For
replacement, use type R06 or AA
batteries.
