Data Connectivity
• 1 10 and 1 10/100Base-T Ethernet, RJ-45
• V.35, X.21 DTE
• IP unnumbered
• Packet fragmentation
• Frame Relay (Q.922, FRF.12)
• RFC 1490 IP over Frame Relay
• LMI (Q.933D, ANSI 617D, Gang of Four)

Voice Signalling
• Euro ISDN EDSS-1/ETSI BRI/NET3

• ETS 300 012-1 (ITU-T I.430)
• ETS 300 402-1 (ITU-T Q.921)
• ETS 300 403-1/2 (ITU-T Q.931)
• ETS 300 102-1 (ITU-T Q.931)

• Q-SIG (PSS-1)

• ECMA-143
• ETSI and ISO/ECMA channel numbering

• SIP and MGCP
• H.323v3

• RAS, H.225, H.245
• Fast-connect, early H.245
• Gatekeeper autodiscovery

• Alias registration
• Overlap sending
• Empty capability set (call transfer, hold)
• H.323v1 call transfer, hold

• ISDN over IP (ISoIP)

• H.323 GW and GK compatible
• H.323 Annex M3
• ISDN/Q-SIG feature tunnelling
• ISDN speech, audio and data (Fax Gr 4, UDI

64, RDI 64)

• ISDN supplementary services

Voice Routing—Session Router™
• Local switching
• Interface huntgroups
• ISDN broadcast message routing
• Routing Criteria

• Interface
• Calling/called party number
• Time of day, day of week, date
• ISDN bearer capability

• Number manipulation functions

• Replace numbers

• Add/remove digits

• Multiple remote gateways
• PLAR
IP Routing
• IPv4 router
• RIPv1, v2 (RFC 1058 and 2453)
• Programmable static routes
• ICMP redirect (RFC 792)
• Packet fragmentation
• Static Firewall

• NAT/PAT/NAPT (RFC 1631)
• Access control lists

IP Quality of Services
• WFQ/Fixed Rate/Priority Queuing
• Combination of QoS schemes with config-

urable burst

• DiffServe/ToS set or queue per header bits
• Pocket Policing dicards excess traffic
• 802.1p VLAN tagging

Management
• Industry standard CLI
• Local console (RS-232, RJ-45) and remote

Telnet access

• TFTP configuration down- and upload
• TFTP firmware download
• SNMP v1 agent (MIB II and private MIB)
• Built-in diagnostic tools
• Java™ Applet
• HPOV Integration with NNM

Operating Environment
• Operating temperature: 0–40ºC
• Operating humidity: 5–80% (non condensing)

System
• CPU Motorola MPC860 at 50 MHz

Memory 16MB SDRAM/4 MB Flash

• Power: 100–240 VAC (50/60 Hz)
• Power dissipation 30W (fully loaded)

Compliance
• EMC compliance: EN55022 and EN55024
• Safety compliance: EN 50950
• CE compliance
• FCC Part 15 Class A

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

Phone +1-301/975-1000

Fax +1-301/869-9293

E-mail [email protected]

URL http://www.patton.com

07M2300-DS1

Specifications

Model Information

The SmartNode 2300 Modular VoIP Access Router is an intel-
ligent multi-service access device providing both routed LAN
services and Voice-Over capabilities.

With its internal router and V.35/X.21 port, remote or local
sites can access public IP services or private data VPNs with-
out the added cost of a router.

Adding Voice-Over capabilities are a snap using any combina-
tion of field-installable voice and data modules. Now any site
can connect VoIP to any phone with BRI, T1/E1 PRI, or FXS.

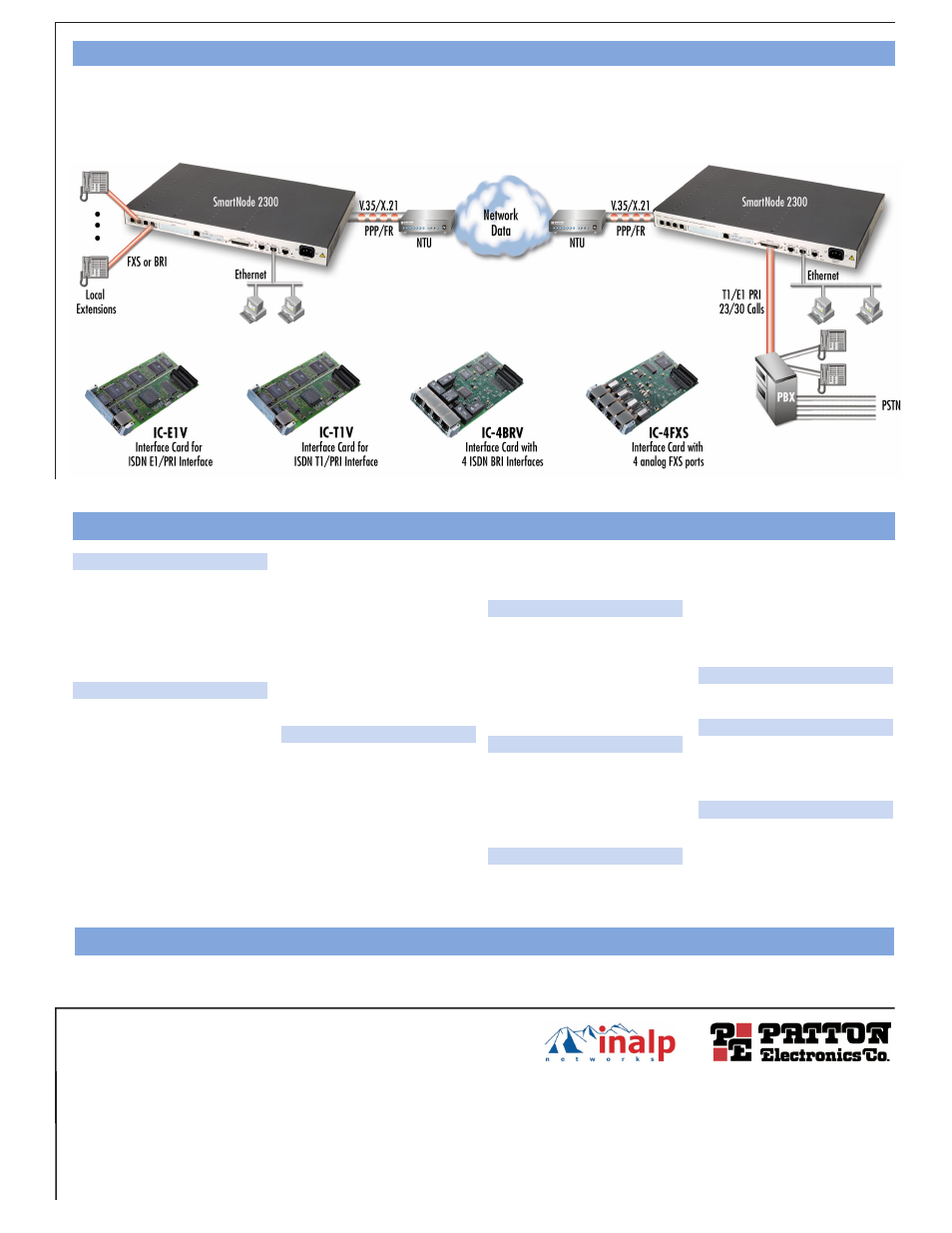

Application—Office IP & Voice Access

Meriedweg 7

CH-3172 Niederwangen

Phone +41(0)31 985-25-25

Fax +41(0)31 985-25-26

E-mail [email protected]

URL http://www.inalp.com

SN2300/0V/UI Modular VoIP Access Router with internal 100–240 VAC power supply

SNSW-IAF-3 IP Advanced Feature Set (QSIG,QoS, IP Classification)
