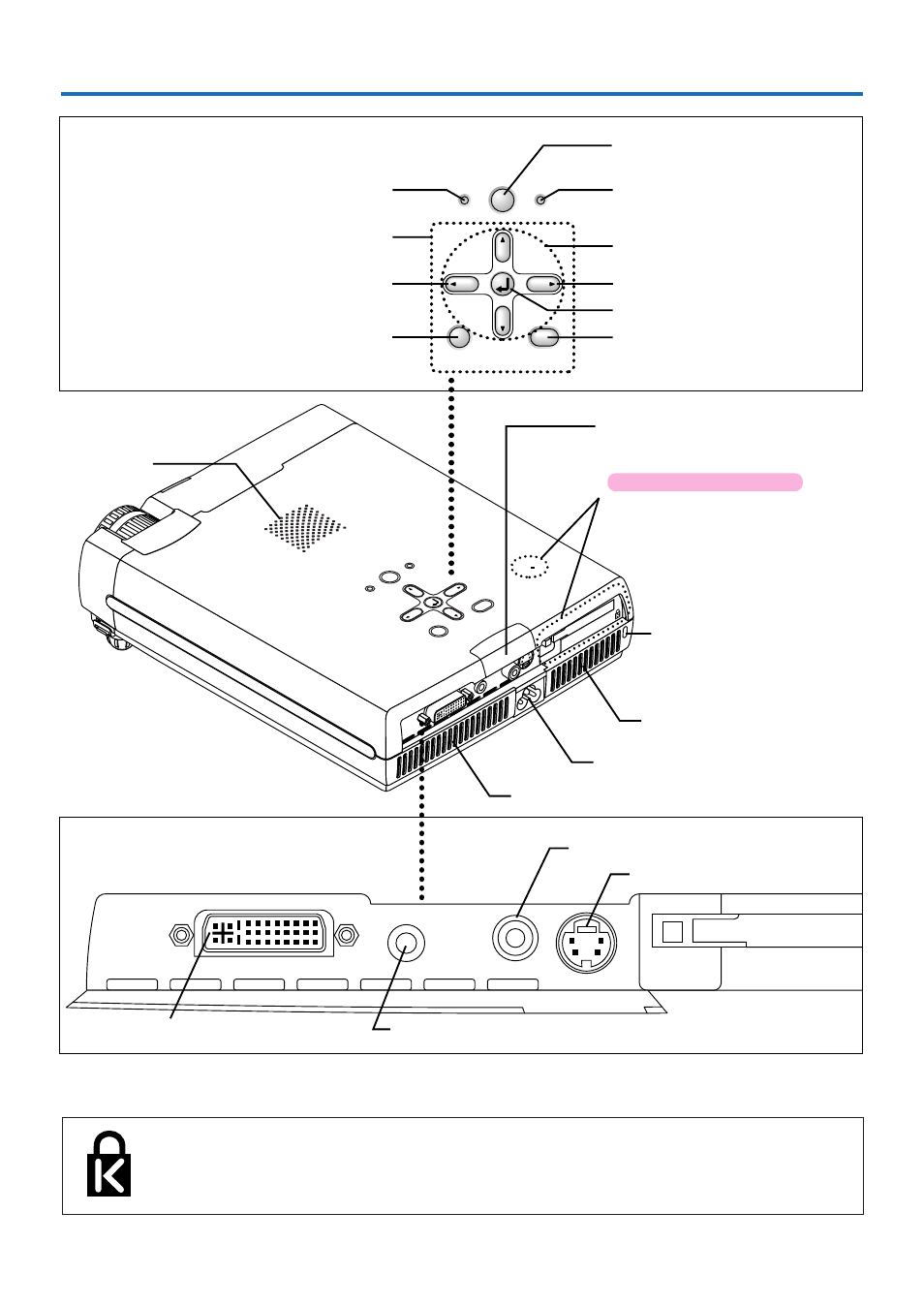

Names of the Main Unit Parts
DV I
AUDIO
VIDEO
S-VIDEO
ST ATUS
SOURCE
ST ANDBY
AUTO
MENU
QUICK MENU
PC CARD
PC-CARD
PC-CARD
PC AUDIO VIDEO S-VIDEO
STATUS
SOURCE
STANDBY
AUTO
MENU QUICK
MENU
STANDBY indicator [E-24, 70] STATUS indicator [E-24, 70]
AUTO button [E-29]
Buttons used in menu and quick menu operations
[E-35, 36]
ENTER button
STANDBY button [E-24]
SOURCE button [E-29]
MENU button [E-36]
SELECT
▲▼ ᮤ ᮣ buttons
QUICK MENU button [E-35]
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
Ventilation slots
Speaker
Built-in security slot
(See description below.)
AC IN connector [E-24]
Remote control sensor [E-12]
Ventilation slots
DVI connector [E-18, 19]
S-VIDEO connector [E-21]
VIDEO connector [E-21]
AUDIO connector [E-23]
Applicable Projector: U4-136
These features used with
CompactFlash Cards [E-66]
